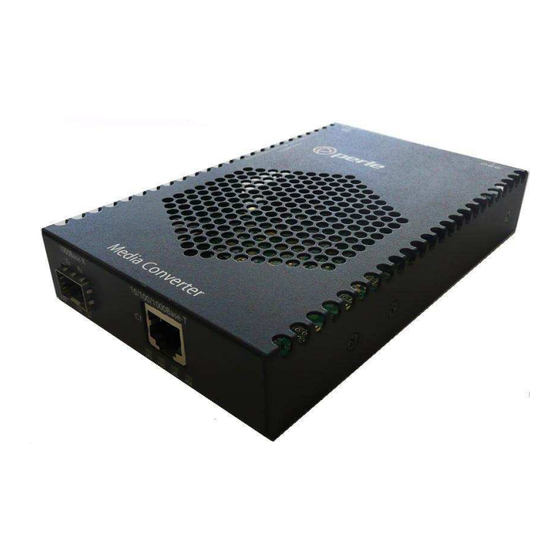

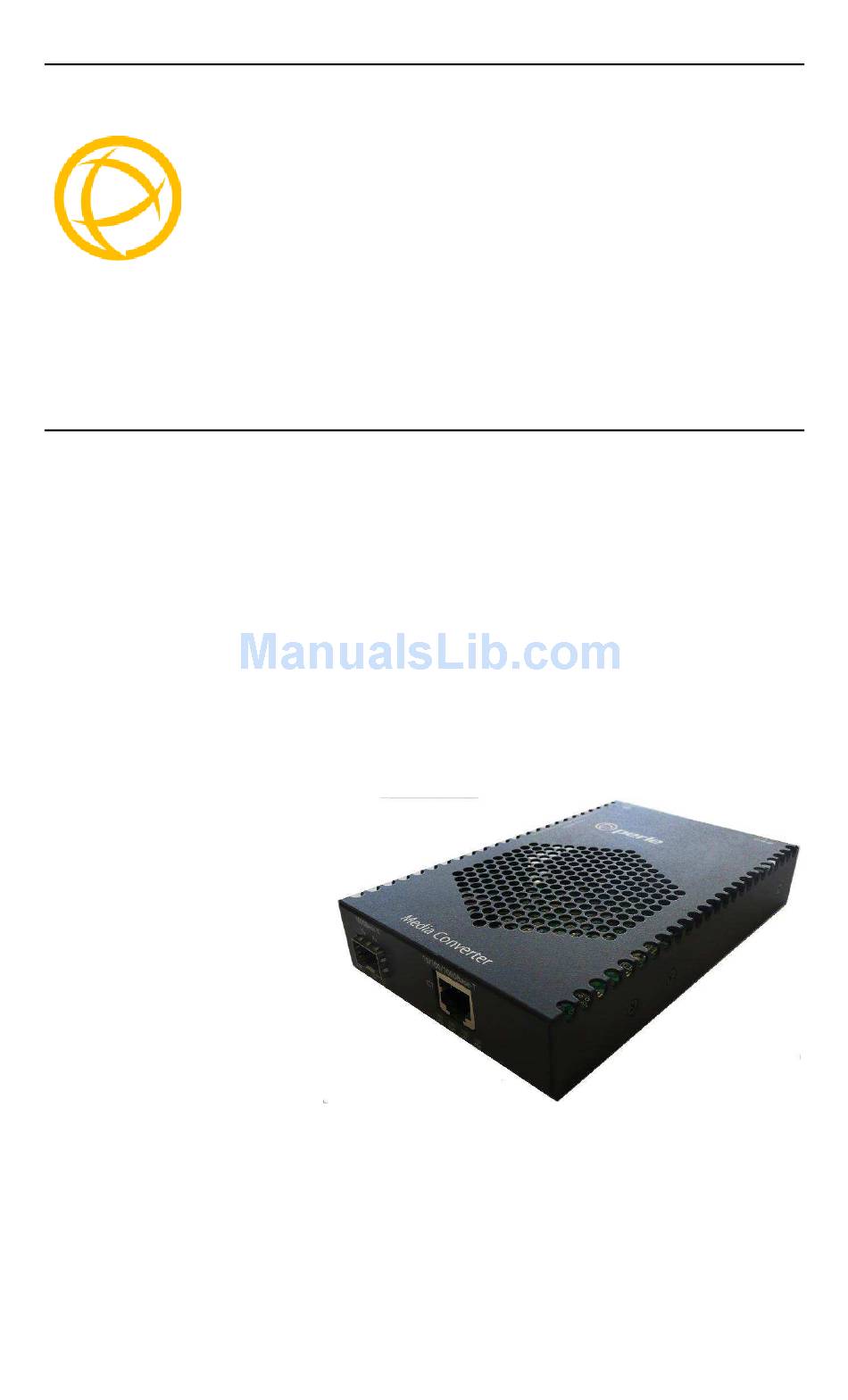

- Page 1 Perle10/100/1000 Ethernet Extended Temperature Media Converters Installation Guide S-1110-XT P/N 5500321-10...
-
Page 2: Extended Temperature Models
S-1110P-SFP-XT Note 1. Note 1: Fiber characteristics will depend on the SFP fiber module selected. Please visit Perle’s website for the most up to date Installation guides models and specifications. http://www.perle.com/ Perle 10/100/1000 Ethernet Extended Temperature Media Converter Installation Guide... -
Page 3: Installation
Locate the MDIX AUTO jumper set as detailed below. By covering or strapping pins 1 and 2, the S-1110-XT will operate as an MDIX device. By covering or strapping pins 2 and 3, the S-1110XT will automatically detect the Ethernet cable’s polarity. -
Page 4: Dip Switches
Up (default) Auto Down Note: Auto negotiation should only be turned off, if the copper link partner does not support Auto Negotiation and fixed settings are required by the copper link partner. Perle 10/100/1000 Ethernet Extended Temperature Media Converter Installation Guide... - Page 5 If the copper link partner does not support Auto negotiation, the S-1110-XT will parallel detect to 10 or 100 Mbps and force Half Duplex mode as per IEEE specifications. Off: When the Auto Negotiation switch is set to the OFF position, the media converter will not negotiate the Ethernet parameters with the copper link partner.
- Page 6 Note: This feature only takes effect if Fiber Negotiation has been turned off. Disabled: The media converter will not monitor for or generate Fiber Fault Alert. Perle 10/100/1000 Ethernet Extended Temperature Media Converter Installation Guide...
- Page 7 Duplex setting for the copper port. Full Duplex: In the Up switch position; the media converter will be set to Full Duplex mode. Half Duplex: The media converter will be set to Half Duplex mode. Perle 10/100/1000 Ethernet Extended Temperature Media Converter Installation Guide...
- Page 8 Note When Auto Negotiation (SW1) is set to Off, the media converter will use this switch setting for the copper port speed. 100: When Switch 5 is in the Up position, the S-1110-XT will force the speed to 100 Mbps.
- Page 9 2. Connect the fiber cables from one media converter to the other media converter/switch/fiber device ensuring that the RX and TX are reversed (crossed) at the opposite end. Perle 10/100/1000 Ethernet Extended Temperature Media Converter Installation Guide...
-
Page 10: Installing The Copper Cable
Installing the Copper Cable 1. Locate 10/100/1000Base-T compliant copper cables with the appropriate connectors. 2. Connect the RJ-45 cable between the Perle media converter and the device. Note: The Perle media converter supports Auto-MDIX which allows connection of a straight-through or cross-over Ethernet cable. - Page 11 • For extra power cable strain relief, attach the strain clip to the case as shown below, and thread the power cable through the clip in either one or two loops. Perle 10/100/1000 Ethernet Extended Temperature Media Converter Installation Guide...
-
Page 12: Status Led
Operation Status LED The Perle 10/100/1000 Rate converting Extended Temperature Media converters have status LEDs located on the front panel of the unit. On – Power is applied to the unit Blinking (slow) – Loopback mode (one or both fiber interfaces are in loopback mode) Blinking (fast) Power On failure. -
Page 13: Troubleshooting General
For duplex fiber connections, ensure the RX and TX has been reversed between the two media converters. No connectivity If unable to get full connectivity with all DIP switches in the UP position, this procedure is recommended for troubleshooting. Perle 10/100/1000 Ethernet Extended Temperature Media Converter Installation Guide... -
Page 14: Technical Specifications
Storage Humidity: 5% to 95% non-condensing Operating Altitude: Up to 3,048 m (10,000 ft) Dimensions: 150 mm by 95 mm by 26 mm MTBF SC/ST Models: 489,616hours MTBF SFP Models: 584,216hours Perle 10/100/1000 Ethernet Extended Temperature Media Converter Installation Guide... - Page 15 Category 5 UTP or STP • 24-22 AWG • Straight through or Ethernet crossover Note: Please refer the product page on the Perle website for the most up to date models and specifications: http://www.perle.com/ Perle 10/100/1000 Ethernet Extended Temperature Media Converter Installation Guide...
-
Page 16: Compliance Information
Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml...
