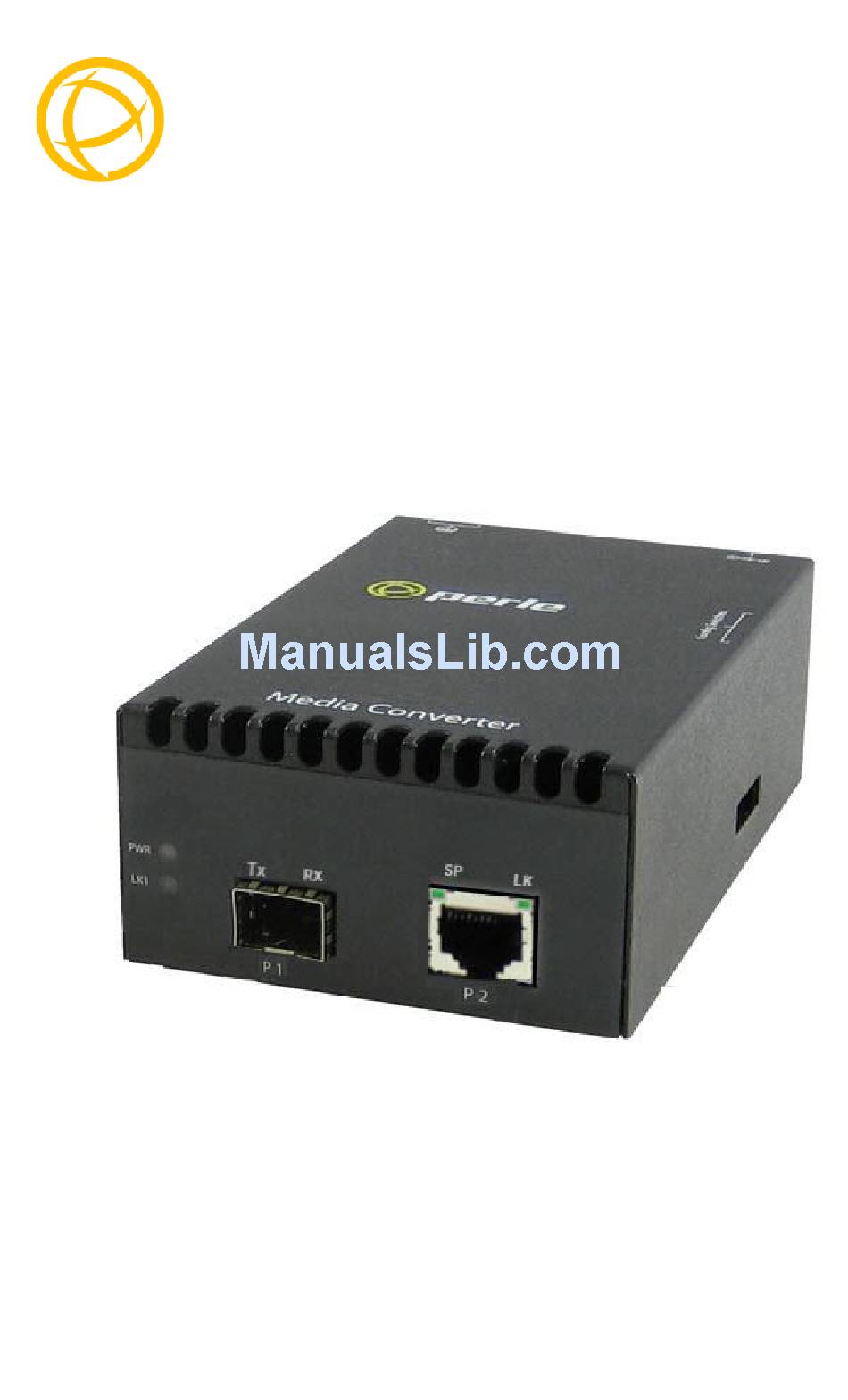

- Page 1 Perle S-10GRT-SFP Media Converter Installation Guide P/N 5500432-10 (Rev-E)
- Page 2 Perle Systems or third party MSA compatible 1G/10G SFP+ modules. See the Technical Specifications section in this guide for supported models. Visit Perle’s web site for the most up to date Installation guides, models and specifications. http://www.perle.com/ Getting to know your S-10GRT-...

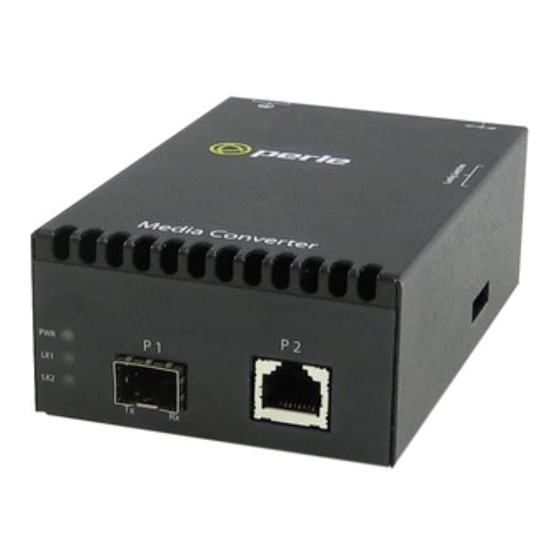

- Page 3 Front View Perle S 10GRT-SFP Media Converter Installation Guide...
-
Page 4: Installation
These are the steps required to configure the media converter. 1. Set the DIP switch settings. (optional) 2. Insert the appropriate SFP/SFP+ into the transceiver port. 3. Connect the fiber cable. 4. Connect the RJ45 (copper cable). DIP Switches Perle S 10GRT-SFP Media Converter Installation Guide... -
Page 5: Dip Switch Settings
Enabled: If the media converter detects a loss of signal on the fiber port, the media converter notifies the link partner on that same port that an error condition exists by bringing down the link Perle S 10GRT-SFP Media Converter Installation Guide... - Page 6 Fiber Fault Alert Sample Config Media Converter A Configuration • Link Mode – Standard Mode • Fiber Fault Alert Media Converter B Configuration • Link Mode–Smart Link Pass through Mode • Fiber Fault Alert Perle S 10GRT-SFP Media Converter Installation Guide...
- Page 7 Switch Position Mode Up (default) Disabled Down Enabled Disabled: When disabled, the media converter will not be in Fiber loopback mode. Enabled: When enabled, the media converter will be in Fiber loopback mode. Perle S 10GRT-SFP Media Converter Installation Guide...
- Page 8 Note Switch 5 must be set to manual for this setting to take affect. UP: The copper port will be set to Full Duplex mode. Down: The copper port will be set to Half Duplex mode. Perle S 10GRT-SFP Media Converter Installation Guide...
- Page 9 Note Switch 5 must be set to manual for this setting to take affect. UP: The copper port will be fixed at 100 Mbps. Down: The copper port will be fixed at 10 Mbps. Perle S 10GRT-SFP Media Converter Installation Guide...
- Page 10 1. Remove the top of the unit to access the internal jumpers. 2. The SGMII jumper is located on the outer edge, at the midpoint of the card (P3). Jumper Pin 1 and Pin 2. Perle S 10GRT-SFP Media Converter Installation Guide...
-
Page 11: Operation
Operation Status LED The Perle S-10GRT-SFP media converter LEDs statuses. PWR – Power/Test Green On: Power is on and the module is in normal operation mode. Green blinking slowly: the module is in test or loopback mode. Red Solid: Hardware error detected. (See PWR Red LED Errors) Red Blinking quickly: Error detected. - Page 12 Blinking slowly: The copper link has been taken down as a result of Smart Link Pass-Through. Off: No copper link present. LK1 / LK Error Codes Meaning Incompatible SFP/SFP+ Internal Error Mismatch in Cut-though mode SFP/SFP+ communication error Perle S 10GRT-SFP Media Converter Installation Guide...
-
Page 13: Grounding The Chassis
✓ One grounding lug (not provided) ✓ One 18-12 AWG wire (not provided) Note: For your safety, when installing this equipment, always ensure that the chassis ground connection is installed first and disconnected last Perle S 10GRT-SFP Media Converter Installation Guide... - Page 14 Attaching the Grounding Lug 1. Attach the grounding lug to one end of an 18- 12 AWG wire. 2. Attach the grounding lug to the chassis and secure with the grounding screw(s). Perle S 10GRT-SFP Media Converter Installation Guide...
- Page 15 Installing the SFP Fiber Module 1. Locate appropriate fiber module and insert into the opening. 2. Ensure the SFP/SFP+ module is properly seated. 3. Proceed with fiber cable connection. Perle S 10GRT-SFP Media Converter Installation Guide...
- Page 16 2. Connect the fiber cables from the SFP/SFP+ to the other Media Converter/switch/fiber device ensuring that the RX and TX are reversed (crossed) at the opposite end. Perle S 10GRT-SFP Media Converter Installation Guide...
-
Page 17: Installing The Copper Cable
RJ45 connectors installed at both ends. 2. Connect the RJ45 cable between the media converter and the device. Note: The Perle Media Converter supports Auto- MDIX which allows a straight-through or cross-over Ethernet cable. Perle S 10GRT-SFP Media Converter Installation Guide... -
Page 18: Temperature Protection
S-10GRT-SFP will return the module to normal operating. Loopback Mode Perle Standalone media converters can be put into loopback mode for diagnosis purposes. A packet generator and analyzer must be used to generate and capture the packets in this mode. -
Page 19: Technical Specifications
0°C-50°C (32°F - 122°F) Temperature: Storage -25°C-70°C (-13°F -158°F) Temperature: Operating 5% to 90% non-condensing Humidity: Storage 5% to 95% non-condensing Humidity: Operating Up to 3,048 m (10,000 ft) Altitude: Weight: 0.36kg, 0.79 lbs Perle S 10GRT-SFP Media Converter Installation Guide... - Page 20 The following applies to the Perle S-10GRT-SFP Media Converter. *Actual rating is dependent on the power consumption of the SFP/SFP+ module inserted. Supported 10 Gigabit Fiber pluggable transceivers IEEE 802.3as compliant • 10GBase-SR • 10GBase-LMR • 10GBase-LR • 10GBase-ER • 10GBase-ZR...
- Page 21 • Category 6A for 10G speeds, 5/5e used for speeds under 10G • Straight through or Ethernet crossover Note: Please refer the product page on the Perle website for the most up to date specifications. http://www.perle.com/ Perle S 10GRT-SFP Media Converter Installation Guide...
-
Page 22: Troubleshooting
Set all DIP switches to the Up position. Loopback Mode The media converter can be put into Loopback mode for diagnosis purposes. A packet generator and analyzer must be used to generate and capture the packets in this mode. Perle S 10GRT-SFP Media Converter Installation Guide... -
Page 23: Compliance Information
For information and details about product warrantee and registration, please refer to www.perle.com/support_services/warranty.shtml Copyright © 2017 Perle Systems Limited. All rights reserved. No part of this document may be reproduced or used in any form without written permission from Perle Systems Limited.
