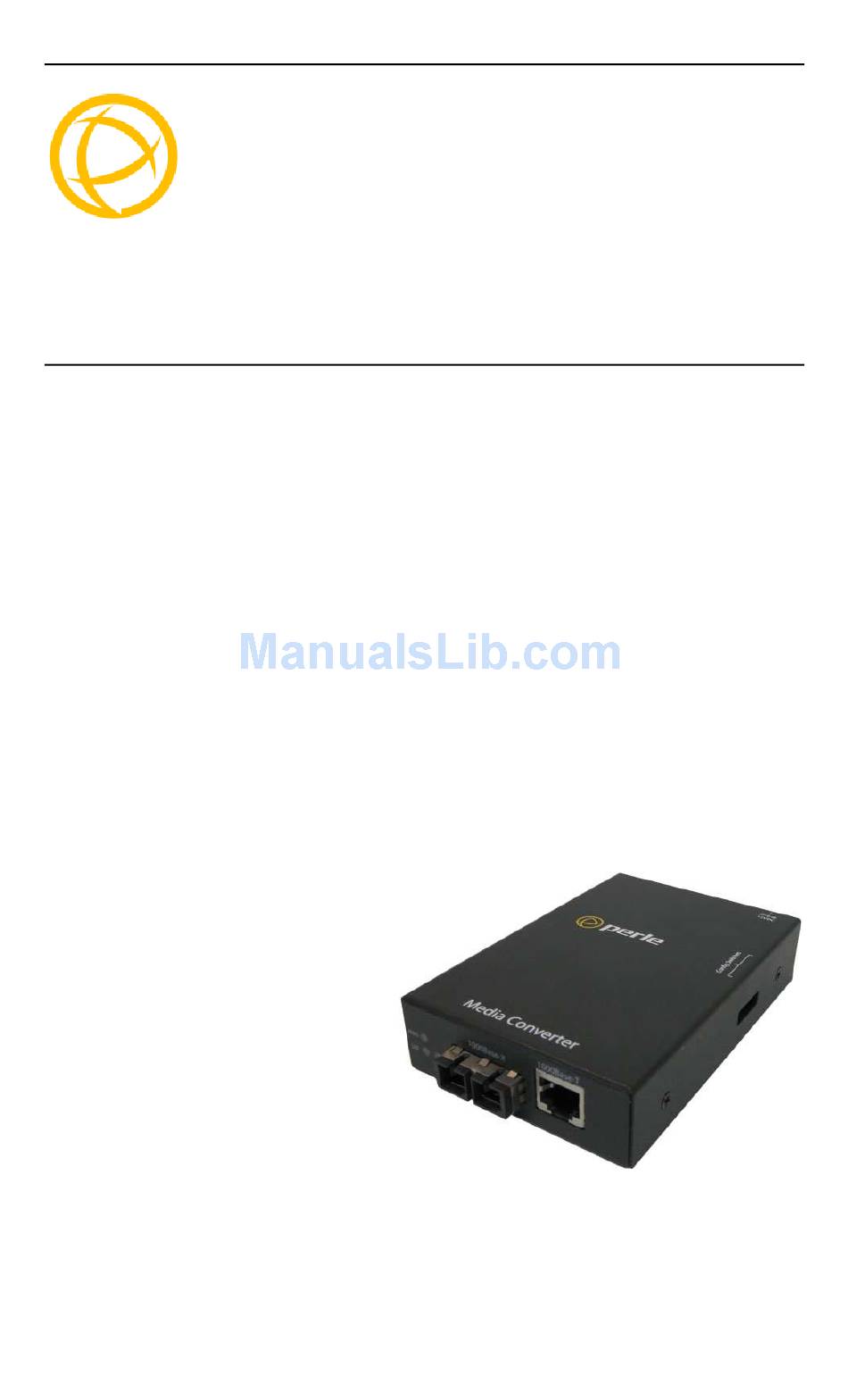

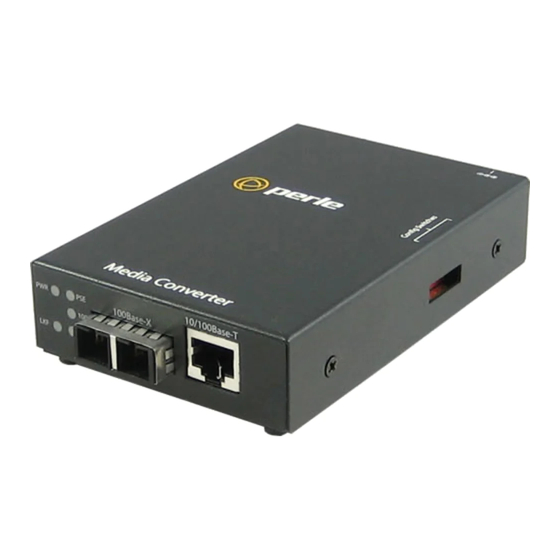

- Page 1 Perle PoE/PoE+ 10/100 Ethernet Media Converters Installation Guide S-110P S-110PP S-110P-SFP S-110PP-SFP P/N 5500318-12...
- Page 2 Sourcing Equipment (PSE) and can power up one Powered Device (PD) using standard UTP cables that carry Ethernet data. The S-110P models are compatible with Powered Devices that comply with the IEEE 802.3af standard and the S-110PP models are compatible with Powered Devices that comply with both the IEEE 802.3af and the 802at-2009 standards.
-
Page 3: Installation
6. Install the Power cord Relief clip (optional). 7. Power up the media converter. Power Sourcing Pinouts When Power Sourcing is enabled on a copper port, the S-110P will provide power to the connected PD device over the Ethernet cable (see PSE function on Dip Switch configurations). - Page 4 To access the Powering Options Jumper settings, unscrew the six side screws on the case and remove the cover plate. Locate the Power Option jumper set and strap the option pins as detailed below. Perle PoE/PoE+ 10/100 Ethernet Media Converter Installation Guide...
-
Page 5: Dip Switches
Bank 1 Bank 2 To access the DIP switches for Bank 2, unscrew the six side screws on the case and remove the cover plate. Locate the jumper set as detailed below. Perle PoE/PoE+ 10/100 Ethernet Media Converter Installation Guide... -
Page 6: Dip Switch Settings
Auto: When enabled, the media converter will negotiate with its link partner to determine the most optimal parameters for this connection. The S-110P will advertise capabilities of 10 and 100 Mbps, full and half duplex as well as pause to the link partner. - Page 7 (B) – Local Media Converter setup for Far End Fault enabled, Link Pass-Through On and Auto-negotiation - OFF 1. (A) Loses fiber connection on its receiver. 2. (A) Sends FEF. 3. (B) Detects FEF signal and shuts down the fiber link. Perle PoE/PoE+ 10/100 Ethernet Media Converter Installation Guide...
- Page 8 PSE Enable Copper (Switch 4 and 5) Switch Position 4 Switch Position 5 Type PSE enabled Up (default) Up (default) normal detection PSE enabled Down High capacitance detection PSE enabled Down Legacy device Perle PoE/PoE+ 10/100 Ethernet Media Converter Installation Guide...
- Page 9 Enabled: This is a test mode. All data received on the receive (RX) fiber connection is looped back to the transmit (TX) fiber connection. The data link will be disabled; however power to the Perle PoE/PoE+ 10/100 Ethernet Media Converter Installation Guide...
- Page 10 Copper port Up (default) Down 100: When Switch 1 is in the Up position, the S-110P will force the speed to 100 Mbps. 10: When Switch 1 is in the Down position the media converter will force the speed to 10 Mbps.
- Page 11 MDIX Auto: In the Up switch position; the media converter will automatically detect the Ethernet cable’s polarity. MDIX: The S-110P will operate as a MDIX device. Installing the SFP Fiber Module SFP models only. 1. Locate the appropriate fiber module and insert the SFP into the opening on the front of the media converter.
-
Page 12: Installing The Copper Cable
• Locate 10/100Base-T compliant copper cables with the appropriate connectors. • Connect the RJ-45 cable between the Perle media converter and the device. Attaching the Power Cord Strain Relief Clip 1. Remove the screw from the chassis that is closest to the power cord connector. - Page 13 Plug the other end of the power cord into an appropriate power outlet. Powering up the Perle Media Converter • Connect the Perle supplied power adapter to the media converter. • Connect the power adapter to a power source. •...
-
Page 14: Operation
Operation Status LED The Perle PoE/PoE+10/100 Rate converting Media converters have status LEDs located on the front panel of the unit. On – Power is applied to the unit Blinking (slow) – Loopback mode - fiber interface is in loopback mode Blinking (fast) Power On failure. - Page 15 3 second stop interval between the error condition code. PSE-LED 1 blink PD Capacitance too high 2 blinks PD Resistance too low or short circuit 3 blinks PD Resistance too high Perle PoE/PoE+ 10/100 Ethernet Media Converter Installation Guide...
-
Page 16: Other Features
Integrated Pause signalling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed with data. The Perle media converter can generate and respond to Pause messages. If Auto negotiation is set to On, the media converter will advertise symmetrical and asymmetrical pause. -
Page 17: Troubleshooting
Troubleshooting General • Ensure power is supplied to the media converter. Only the Perle provided power supply may be used. • Ensure the remote device’s fiber connection type is compatible with the media converter. If using a simplex fiber connection, ensure that you have both an Upstream (U) and Downstream (D) media converter. - Page 18 No Power to the PD • Ensure that the PD is compatible with the S-110P. If the PD is a POE+ device then a POE+ media converter must be used (S-110PP) •...
-
Page 19: Technical Specifications
Technical Specifications The following applies to all S-110P media converters: Power Input / Consumption: 48V DC to 56V DC @ 6 W Operating Temperature: 0° C to 50° C (32° F to 122° F) Storage Temperature: -25° C to 70° C (-13° F to 158° F) - Page 20 Category 5 UTP or STP • 24-22 AWG • Straight through or Ethernet crossover Note: Please refer the product page on the Perle website for the most up to date models and specifications. http://www.perle.com/ Perle PoE/PoE+ 10/100 Ethernet Media Converter Installation Guide...
-
Page 21: Compliance Information
Failure to observe this warning could result in an eye injury or blindness. WARNING: Use of controls, adjustments or the performance of procedures other than those specified herein may result in hazardous radiation exposure. Perle PoE/PoE+ 10/100 Ethernet Media Converter Installation Guide... -
Page 22: Warranty Registration
Warranty / Registration Perle’s standard Lifetime Warranty provides customers with return to factory repairs for Perle products that fail under the conditions of the warranty coverage. Details can be found at: http://www.perle.com/support_services/warranty.shtml Contacting Technical Support Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.
