CRAFTSMAN TABLE SAW - MODEL NO. 315.228590
I he model number will be found on a plate attached to the cabinet. Always mention the model number in all correspondence regarding your TABLE SAW or when ordering repair parts.
J
X
ZI
=.
--4
I'ti
o_
k_
GO
t.3t
Key PaN
No. Number
1 979879-00t
2 979945-001
3 979946-001
4 980323-901
5 980691-001
6 979948-001
7 982147-001
8 980695-901
9 990692-001
10 980693-001
11 980950-001
12 980594-001
13 980690-001
14 ** STD551131
15 ** STD541031
16 ** STD523110
17 982122-001
18 982271-001
19 979875-001
20 979874-001
21 980956-002
22 979872-001
23 979871-001
24 979873-001
25 982099-001
26 980694-001

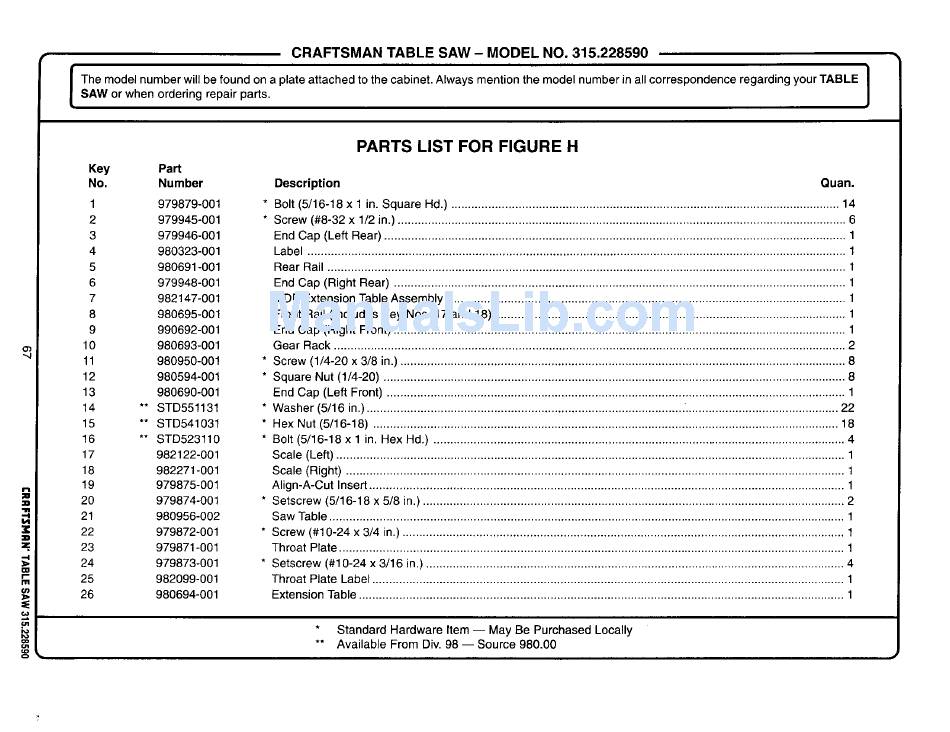

PARTS LIST FOR FIGURE H
Description Quan.
* Bolt (5/16-18 x 1 in. Square Hd.) .................................................................................................................... 14
* Screw (#8-32 x 1/2 in.) ...................................................................................................................................... 6
End Cap (Left Rear) .......................................................................................................................................... 1
Label ................................................................................................................................................................. 1
Rear Rail ........................................................................................................................................................... 1
End Cap (Right Rear) ....................................................................................................................................... 1
MDF Extension Table Assembly ....................................................................................................................... 1
Front Rail (Includes Key Nos. 17 and 18) ......................................................................................................... 1
End Cap (Right Front) ....................................................................................................................................... 1
Gear Rack ......................................................................................................................................................... 2
* Screw (1/4-20 x 3/8 in.) ..................................................................................................................................... 8
* Square Nut (1/4-20) .......................................................................................................................................... 8
End Cap (Left Front) ......................................................................................................................................... 1
* Washer (5/18 in.) ............................................................................................... " .............................................. 22
* Hex Nut (5/16-18) ........................................................................................................................................... 18
* Bolt (5/16-18 x 1 in. Hex Hd.) ........................................................................................................................... 4
Scale (Left) ........................................................................................................................................................ 1
Scale (Right) ..................................................................................................................................................... 1
Align-A-Cut Insert .............................................................................................................................................. 1
* Setscrew (5/16-18 x 5/8 in.) .............................................................................................................................. 2
Saw Table .......................................................................................................................................................... 1
* Screw (#10-24 x 3/4 in.) .................................................................................................................................... 1
Throat Plate ....................................................................................................................................................... 1
* Setscrew (#10-24 x 3/16 in.) ............................................................................................................................. 4
Throat Plate Label ............................................................................................................................................. 1
Extension Table ................................................................................................................................................. 1
Standard Hardware Item -- May Be Purchased Locally
