The magazine guide pictured on the previous page is shown as
it is oriented when placing it into the inside right of each stack
(as you face the "picker side" of the stacks).
Place the leading tabs (top right in the picture) into the slots
farthest in, then rotate the magazine guide into the stack,
catching the trailing tabs (lower left arrows in picture). Push
the guide against the stack and forward until you (hear/feel)
the latch click into the wall of the stack (the latch is the
"angle"shown in the lower left of the picture).
If this latch does not catch (click into place), the guide is
not correctly mounted and could come out during use.
2. Remove the controller PCA.
Caution
Raise the picker transport assembly by pulling on the
transport rope coupler assembly. Pulling up on the transport
assembly frame may cause misalignment.
a. Raise the picker assembly.
Insert a slim screwdriver into the gear box of the verttical motion motor to hold up the transport
mechanism while changing the controller PCA.
10

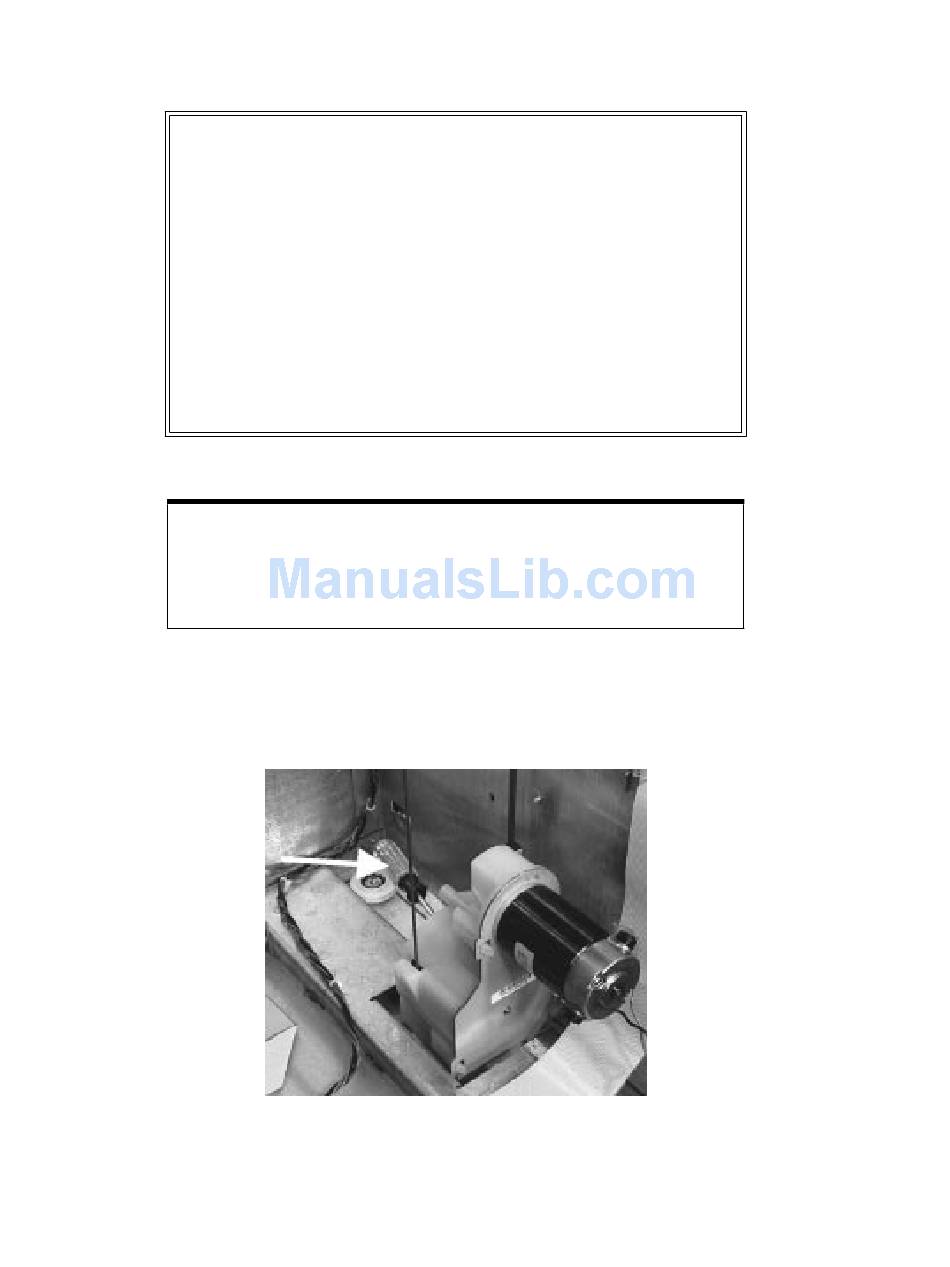

Figure 5: Stopping vertical motor gear box motion
4x sundot
