3. Remove the nails attaching the carton to the pallet.
4.
Remove the plastic carton fasteners.
5. Remove the carton.
4. Accessory boxes
6. Corner pads

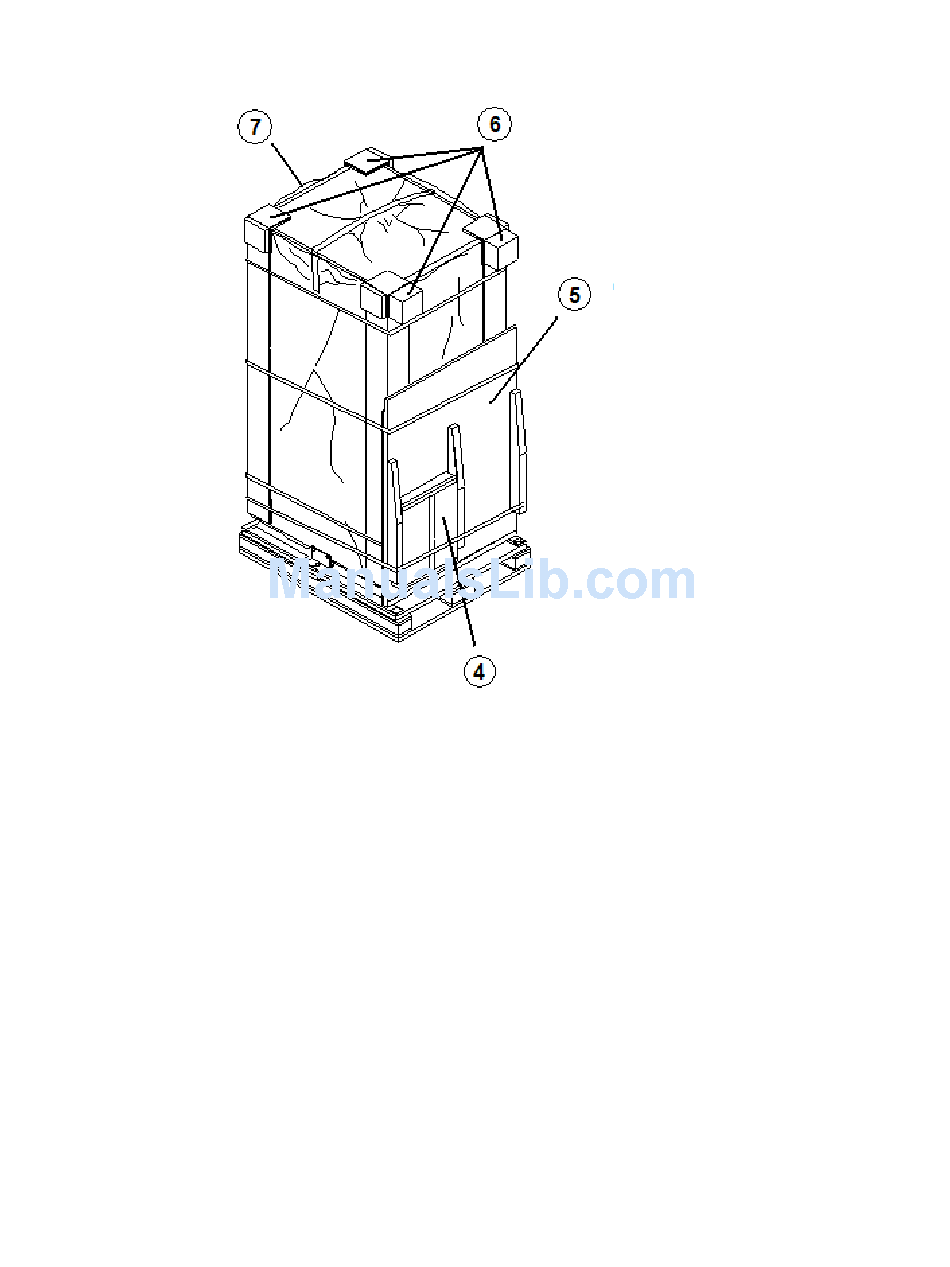

Figure 9 Removing the inner packaging
6. Remove the accessory boxes, ramp, and corner pads.
7.
Using a 6mm hex and 19mm wrench, remove the adapter plates that anchor the cabinet to the
pallet.
8.
Remove the poly bag covering the cabinet.
9. Following the instructions provided on the wooden ramp, attach the ramp to the pallet and roll
the cabinet onto the floor.
10. Visually check the unit for any damage.
5. Ramp
7. Poly bag
XP10000 Disk Array Site Preparation Guide 49
