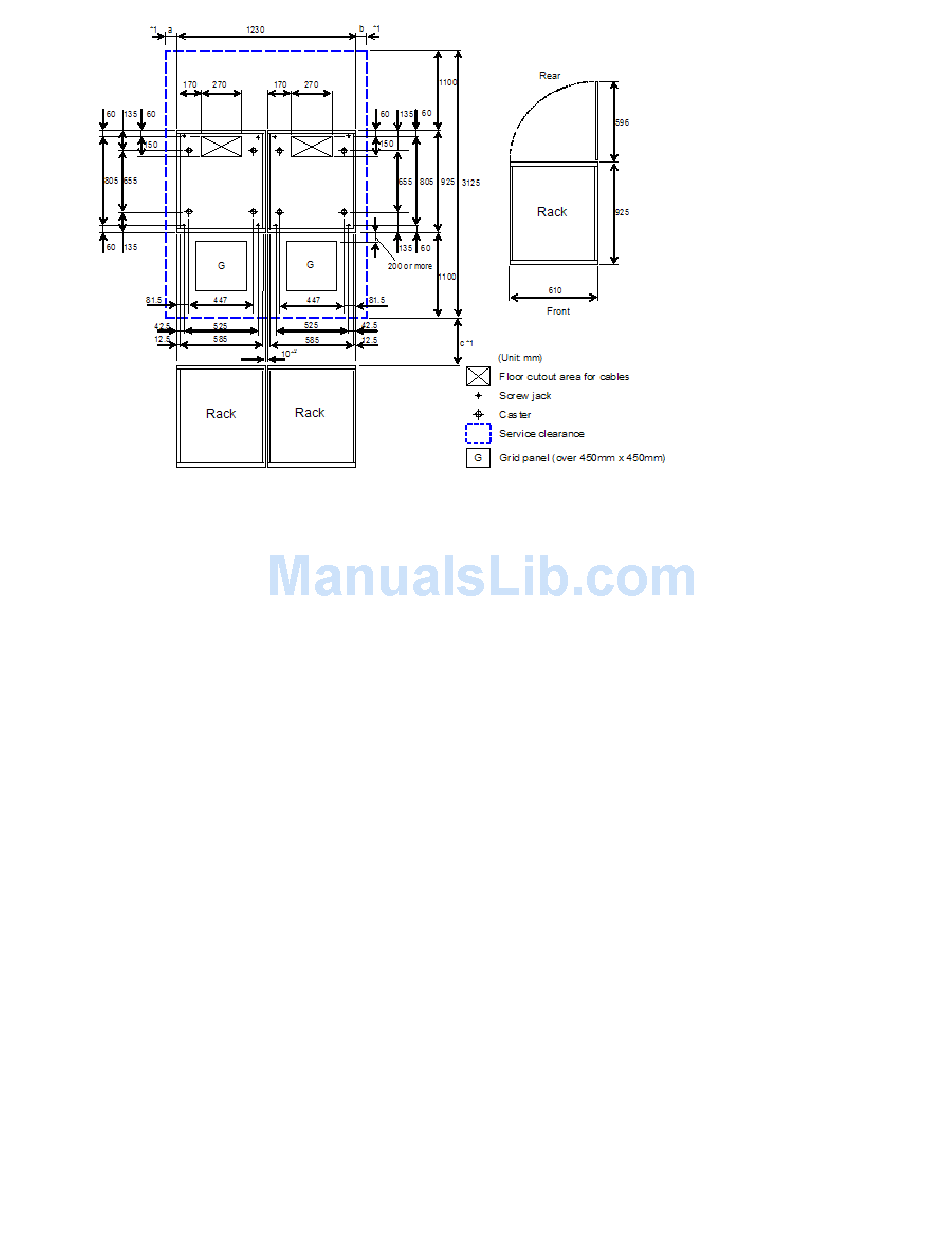

Figure 3 Primary and secondary rack dimensions and cutouts

Calculating clearances

The total floor space required for the XP10000 disk array includes:

•

The actual space required by the equipment.

•

Service clearance — the floor space required to access the disk array. Never use this space for

storage.

•

Additional space required to properly distribute the equipment weight on your computer room

floor. The amount of additional space required depends on your floor load rating (see

"Estimating required floor load

Calculate primary rack clearance dimensions using

Site requirements for the XP10000 disk array

rating" on page 26).

Figure 4

and the procedure on page 29.
