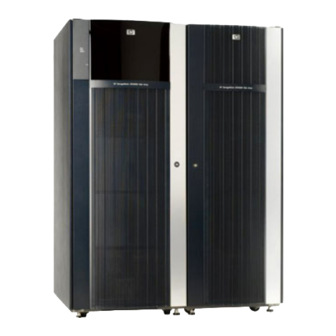

HP StorageWorks XP24000 Configuration Manual
Hide thumbs
Also See for StorageWorks XP24000:
- User manual (164 pages) ,
- Configuration manual (58 pages) ,
- Reference manual (456 pages)
Related Manuals for HP StorageWorks XP24000
Summary of Contents for HP StorageWorks XP24000
- Page 1 HP StorageWorks XP Disk Array Configuration Guide for VMware XP24000, XP12000, XP10000 Part number: A5951-96101 First edition: June 2007...
- Page 2 U.S. Government under vendor's standard commercial license. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
-
Page 3: Table Of Contents
Sharing LUNs ........................20 Selecting the SCSI emulation driver ..................22 2 Troubleshooting ................25 Error conditions ........................25 Calling the HP support center ..................... 27 Contact information ......................27 Before you call ......................27 XP Disk Array Configuration Guide for VMware... - Page 4 A Path worksheet ................29 ............................... 29 B Disk array supported emulations ............31 Supported emulations ........................ 31 Emulation specifications ......................32 Glossary .................... 35 Index ....................39...
- Page 5 Figures ..SNMP configuration ....................13 ..Host mode setting 01 (XP24000 only) ............... 14 ..Simple point-to-point fabric topology example ............16 ..Multi-cluster environment ..................17 XP Disk Array Configuration Guide for VMware...
- Page 6 Tables ..Document conventions ....................8 ..Fabric topology settings ................... 16 ..SAN fabric zoning and LUN security settings ............. 17 ..Error conditions ...................... 26 ..Worksheet ......................29 ..Supported emulations ..................... 31 ..Emulation specifications ................... 32...
-
Page 7: About This Guide
• HP StorageWorks SAN design reference guide • You can find these documents from the Manuals page of the HP Business Support Center website: http://www.hp.com/support/manuals In the Storage section, click Disk Storage Systems and then select your product. XP Disk Array Configuration Guide for VMware... -
Page 8: Document Conventions And Symbols
Table 1 Document conventions Convention Element Blue text: Table 1 Cross-reference links and e-mail addresses Blue, underlined text: http://www.hp.com Website addresses Bold text • Keys that are pressed • Text typed into a GUI element, such as a box •... -
Page 9: Conventions For Storage Capacity Values
Conventions for storage capacity values HP XP storage systems use the following values to calculate physical storage capacity values (hard disk drives): • 1 KB (kilobyte) = 1,000 bytes • 1 MB (megabyte) = 1,000 2 bytes • 1 GB (gigabyte) = 1,000 3 bytes •... -
Page 10: Hp Websites
HP websites For additional information, see the following HP websites: • http://www.hp.com • http://www.hp.com/go/storage • http://www.hp.com/service_locator • http://www.hp.com/support/manuals Documentation feedback HP welcomes your feedback. To make comments and suggestions about product documentation, please send a message to storagedocsFeedback@hp.com. All submissions become the property of HP. -
Page 11: Installing And Configuring Vmware For The Xp Disk Array
1 Installing and configuring VMware for the XP disk array You and your HP service representative each play a role in installation. Your HP service representative is responsible for installing the disk array and formatting the disk devices. You are responsible for configuring the host server for the new devices with assistance from your HP service representative. -
Page 12: Device Emulation Types
OPEN-9*3-CVS. NOTE: For the XP24000/XP12000/XP10000 when connected to external storage devices, HP recommends using OPEN-V as the emulation the array makes visible to the host. This allows configuration of external storage LDEVs without losing data. -
Page 13: Xp Raid Manager Command Devices
Figure 1 SNMP configuration XP RAID Manager command devices HP StorageWorks XP RAID Manager manages HP StorageWorks XP Business Copy Software or HP StorageWorks XP Continuous Access Software operations from a host server. To use XP RAID Manager, you must designate at least one LDEV as a command device. This can be done with XP Remote Web Console. -
Page 14: Setting The Host Mode And Host Group Mode For The Disk Array Ports
OS. Set the host mode using LUN Manager in XP Remote Web Console (shown). If these are not available, the HP service representative can set the host mode using the SVP. The host mode setting for VMware is 0C for the XP10000/XP12000 and 01 for the XP24000. -
Page 15: Configuring The Fibre Channel Ports
In fabric environments, the port addresses are assigned automatically. In arbitrated loop environments, set the port addresses by selecting a unique arbitrated loop physical address (AL-PA) or loop ID for each port. For specific values, refer to the HP StorageWorks XP LUN Manager User's Guide applicable to your array. -
Page 16: Installing And Configuring The Host
Loading the operating system and software Follow the manufacturer's instructions to load the operating system and software onto the host. Load all OS patches and configuration utilities supported by HP and the HBA manufacturer. Installing and configuring the HBAs Install and configure the host bus adapters using the HBA manufacturer's instructions. -
Page 17: Fabric Zoning And Lun Security For Multiple Operating Systems
Figure 4 Multi-cluster environment Within the Storage Area Network (SAN), the clusters may be homogeneous (all the same operating system) or they may be heterogeneous (mixed operating systems). How you configure LUN Security and fabric zoning depends on the operating system mix and the SAN configuration. NOTE: In addition to standard clustering using MSCS (Windows Guest OS), VMware has distinct High Availability features. -
Page 18: Configuring Vmware Esx Server
LUNs you have presented then you will not see all of your LUNs. The maximum value is 256. Connecting the disk array The HP service representative connects the disk array to the host by: Installing and configuring VMware for the XP disk array... -
Page 19: Defining The Paths
Verifying operational status of the disk array channel adapters, LDEVs, and paths. Connecting the Fibre Channel cables between the disk array and the fabric switch or host. Verifying the ready status of the disk array and peripherals. Defining the paths Use XP Remote Web Console to define paths (LUNs) between hosts and volumes in the disk array. -
Page 20: Sharing Luns
In the right pane locate the DWORD entry “TimeOutValue.” and right click. Select Modify, then set the data value to x03c (hexadecimal) or 60 (decimal). NOTE: If the DWORD “TimeOutValue” doesn't exist, click Edit > New> DWORD value and enter the name “TimeOutValue.”... - Page 21 Select the Bus Sharing mode (virtual or physical) appropriate for your configuration, and then click OK. NOTE: Sharing VMDK disks is not supported. VMware ESX Server 3.0x In VirtualCenter select the VM you plan to edit, and then click Edit Settings. XP Disk Array Configuration Guide for VMware...
-
Page 22: Selecting The Scsi Emulation Driver
Select the Bus Sharing mode (virtual or physical) appropriate for your configuration, and then click OK. NOTE: Sharing VMDK disks is not supported. Selecting the SCSI emulation driver Select the HP supported SCSI emulation driver for a guest OS as follows: Windows Installing and configuring VMware for the XP disk array... - Page 23 • For Windows 2000 use the BusLogic SCSI driver. • For Widows 2003 use the LSI Logic SCSI driver. Linux • For the 2.4 kernel use the LSI Logic SCSI driver. • For the 2.6 kernel use the BusLogic SCSI driver. XP Disk Array Configuration Guide for VMware...
- Page 24 Installing and configuring VMware for the XP disk array...
-
Page 25: Troubleshooting
2 Troubleshooting This section includes resolutions for various error conditions you may encounter. If you are unable to resolve an error condition, ask your HP support representative for assistance. See Calling the HP support center. Error conditions You can view error messages (R-SIMs) in XP Remote Web Console (Status tab). -
Page 26: Error Conditions
Table 4 Error conditions Error condition Recommended action The logical devices are not recognized by Verify the following: the host. • The READY indicator lights on the disk array are ON. • Fiber cables are correctly installed and firmly connected. •... -
Page 27: Calling The Hp Support Center
TIDs do not conflict with any host TIDs. Calling the HP support center If you are unable to resolve an error condition, contact the HP support center for assistance. Contact information Telephone numbers for worldwide technical support are listed on the HP support web site: http://www.hp.com/support/. - Page 28 Troubleshooting...
-
Page 29: A Path Worksheet
A Path worksheet Table 5 Worksheet LDEV (CU:LDEV) (CU = Device Type SCSI Bus Path 1 Alternate Paths control unit) Number 0:00 TID: TID: TID: LUN: LUN: LUN: 0:01 TID: TID: TID: LUN: LUN: LUN: 0:02 TID: TID: TID: LUN: LUN: LUN: 0:03... - Page 30 Path worksheet...
-
Page 31: B Disk Array Supported Emulations
B Disk array supported emulations This appendix provides information about supported emulations and device type specifications. Some parameters may not be relevant to your array. Consult your HP representative for information about supported configurations for your system. Supported emulations Table 6 Supported emulations... -
Page 32: Emulation Specifications
Emulation specifications Table 7 Emulation specifications Emulation (Note Category Blocks (512 bytes Sector # of Heads Sectors Capacity (Note 2) Size Cylinders MB* (Note 3) (bytes) track OPEN-3 SCSI disk 4806720 3338 2347 OPEN-8 SCSI disk 14351040 9966 7007 OPEN-9 SCSI disk 14423040 10016... - Page 33 Note 1: The availability of a disk type depends on the disk array. Note 2: The devices are defined to the host as SCSI disk devices, even though the interface is Fibre Channel. Note 3: The device capacity can sometimes be changed by the BIOS or host adapter board. This may make actual capacity different from that listed in the table.
- Page 34 Example For a CVS LUSE volume with capacity = 37 MB and n = 4: # of cylinders = 37 × 1024/720 × 4 = 52.62 × 4 = 53 × 4 = 212 OPEN-V: The number of cylinders for a CVS LUSE volume =# of cylinders = (capacity (MB) specified by user) ×...
-
Page 35: Glossary
Each port can be configured for a particular host type. These modes are represented as two-digit hexadecimal numbers. For example, host mode 08 represents an HP-UX host. LDEV Logical device. An LDEV is created when a RAID group is carved into pieces... - Page 36 Simple Network Management Protocol. Service processor, which is the PC built into the disk controller. The SVP provides a direct interface into the disk array. SVP use is reserved for HP support representatives only. Storage Virtualization System, an appliance that manages multiple disk array storage systems.
- Page 37 World Wide Name. A unique identifier assigned to a Fibre Channel device. XP Remote Web HP StorageWorks XP Remote Web Console. A browser-based program installed Console on the SVP that allows you to configure and manage the disk array. XP Disk Array Configuration Guide for VMware...
- Page 38 Glossary...
-
Page 39: Index
Index document conventions, 8 AL-PA, 15 related documentation, 7 arbitrated-loop physical address, 15 documentation audience, 7 website, 7 providing feedback, 10 clustering, 16 command device(s) emulation(s) designate at least one LDEV as a, 13 device emulation types, 12 command device(s) supported, 31 RAID Manager, 13... - Page 40 26 parity error, 27 path(s) defining, 19 worksheet, 29 websites physical volume(s) , 10 cannot be created, 26 HP Subscriber's Choice for Business, 9 port(s) product manuals, 7 Fibre Channel, 15 worksheet, path, 29 Host Mode, setting, 14...
- Page 41 XP Array Manager, 13 XP Array Manager, 11 XP Business Copy Software, 13 XP Command View, 14 XP Continuous Access Software, 13 XP family storage capacity, 11 XP LUN Manager, 15, 19 XP RAID Manager command devices, 13 zoning, fabric, 16 XP Disk Array Configuration Guide for VMware...
