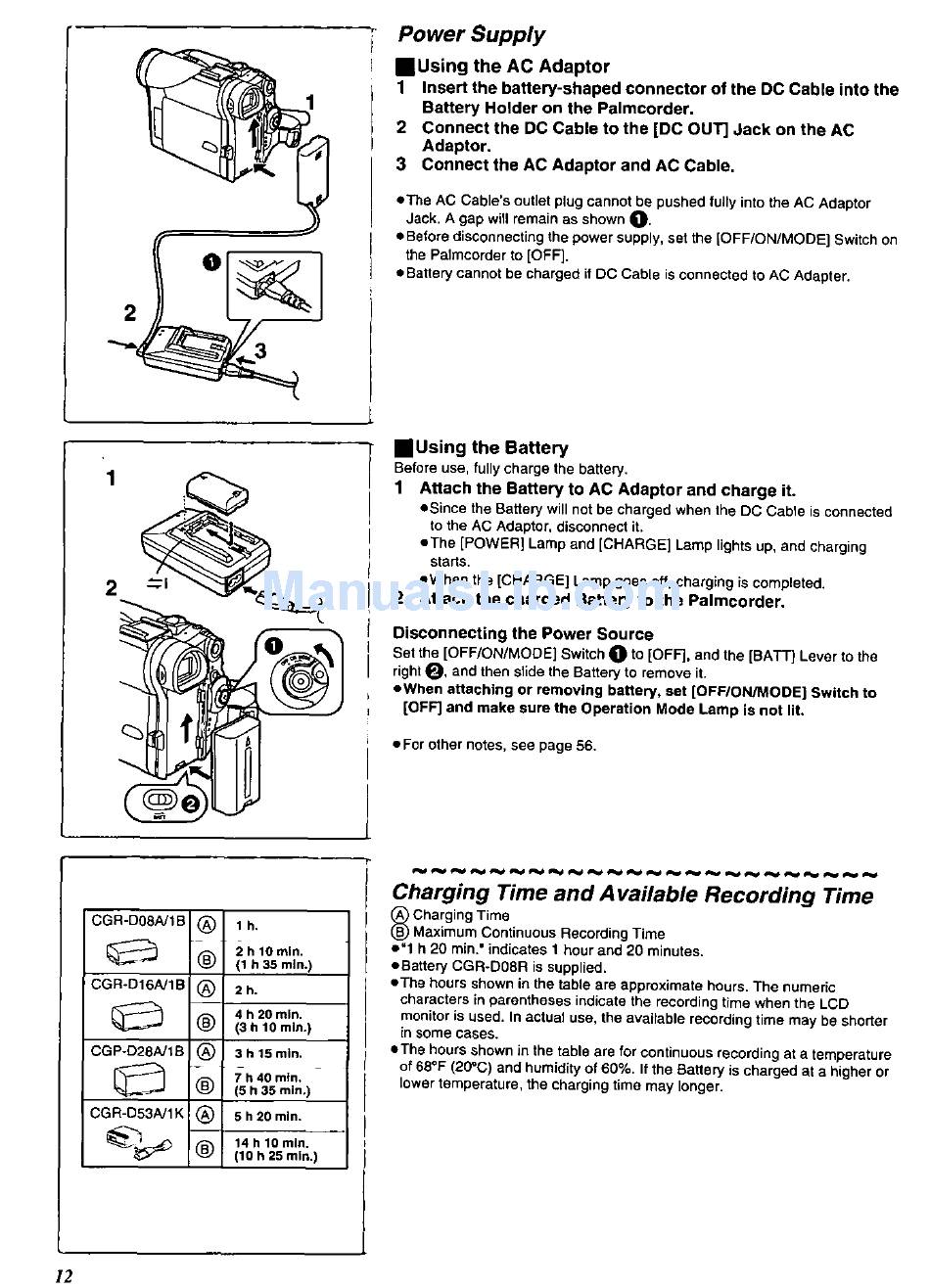

Power Supply
musing the AC Adaptor
1 Insert the battery-shaped connector of the DC Cable into the
Battery Holder on the Palmcorder.
2 Connect the DC Cable to the [DC OUT] Jack on the AC
Adaptor.
3 Connect the AC Adaptor and AC Cable,
• The AC Cable's outlet plug cannot be pushed fully into the AC Adaptor
Jack. A gap will remain as shown O.
• Before disconnecting the power supply, set the [OFF/ON/MODE] Switch on
the Palmcorder to [OFF].
• Battery cannot be charged if DC Cable is connected to AC Adapter.
2
musing the Battery
Before use, fully charge the battery,
1 Attach the Battery to AC Adaptor and charge it.
• Since the Battery will not be charged when the DC Cable is connected
to the AC Adaptor, disconnect it.
• The [POWER] Lamp and [CHARGE] Lamp lights up, and charging
starts.
• When the [CHARGE] Lamp goes off, charging is completed.
2 Attach the charged Battery to the Palmcorder.
Disconnecting the Power Source
Set the [OFF/ON/MODE] Switch O to [OFF], and the [BATT} Lever to the
right _, and then slide the Battery to remove it.
• When attaching or removing battery, set [OFF/ON/MODE] Switch to
[OFF] and make sure the Operation Mode Lamp is not lit,
• For other notes, see page 56.
CGR-DOBNtB (_) 1 h,
2 h 10 mln.
(_ (1 h35mln.)
CGR-D16A/1B (_ 2h.
(_) 4 h 20 mln.
(3 h 10 mln.)
CGP-D28A/1B (_ 3 h 15 min.
h 40 mtn,
(_) (5 h 35 rain.)
CGR-D53A/1K ! (_ 5 h 20 min.
I® ..,o°,o
(10 h 25 mln.)
Charging Time and Available Recording Time
_ harging Time
Maximum Continuous Recording Time
• "1 h 20 rain," indicates 1 hour and 20 minutes,
• Battery CGR-DO8R is supplied,
• The hours shown in the table are approximate hours, The numeric
characters in parentheses indicate the recording time when the LCD
monitor is used. In actual use, the available recording time may be shorter
in some cases.
• The hours shown in the table are for continuous recording at a temperature
of 68°F (20_C) and humidity of 60%. If the Battery is charged at a higher or
lower temperature, the charging time may longer.
