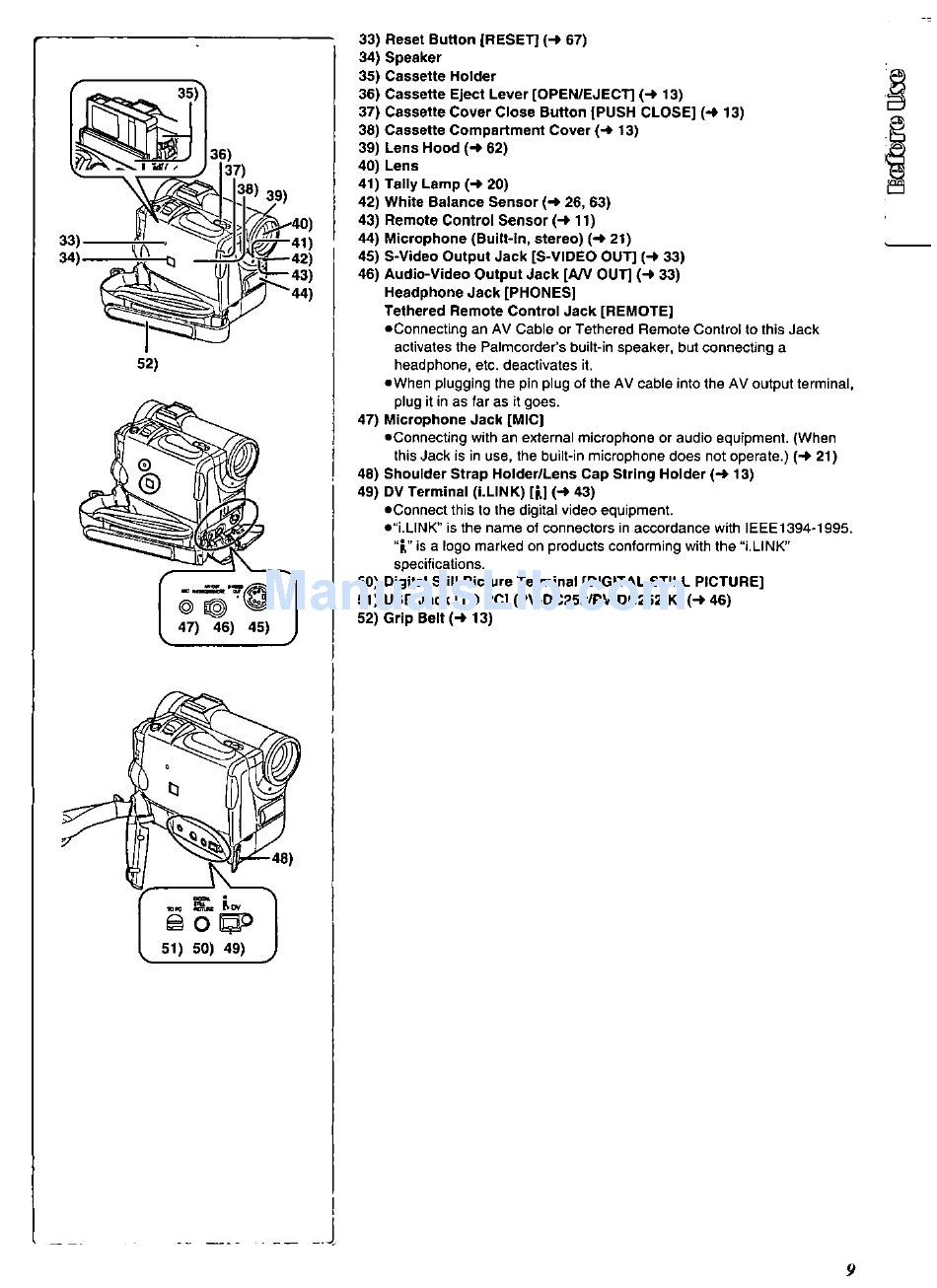

33) Reset Button [RESET] (4 67)
34) Speaker
35) Cassette Holder
36) Cassette Eject Lever [OPEN/EJECT] (4 13)
37) Cassette Cover Close Button [PUSH CLOSE] (4 13)
38) Cassette Compartment Cover (4 13)
39) Lens Hood (4 62)
40) Lens
41) Tally Lamp (4 20)
42) White Balance Sensor (4 26, 63)
43) Remote Control Sensor (4 11)
44) Microphone (Built-in, stereo) (4 21)
45) S-Video Output Jack iS-VIDEO OUT] (4 33)
46) Audio-Video Output Jack [AJV OUT] (4 33)
Headphone Jack [PHONES]
Tethered Remote Control Jack [REMOTE]
eConnecting an AV Cable or Tethered Remote Control to this Jack
activates the Palmcorder's built-in speaker, but connecting a
headphone, etc. deactivates it.
eWhen plugging the pin plug of the AV cable into the AV output terminal,
plug it in as far as it goes.
47) Microphone Jack [MIC]
eConnecting with an external microphone or audio equipment. (When
this Jack is in use, the built-in microphone does not operate.) (4 21]
48) Shoulder Strap Holder/Lens Cap String Holder (4 13)
49) DV Terminal (I.LINK) [_] (4 43)
eConnect this to the digital video equipment.
o"i.LINK" is the name of connectors in accordance with IEEE 1394-1995.
"[" is a logo marked on products conforming with the "i.LINK"
specifications.
50) Digital Still Picture Terminal [DIGITAL STILL PICTURE]
51) USB Jack [TO PC] (PV-DC252/PV-DC252-K) [4 46)
52) Grip Belt (4 13)
