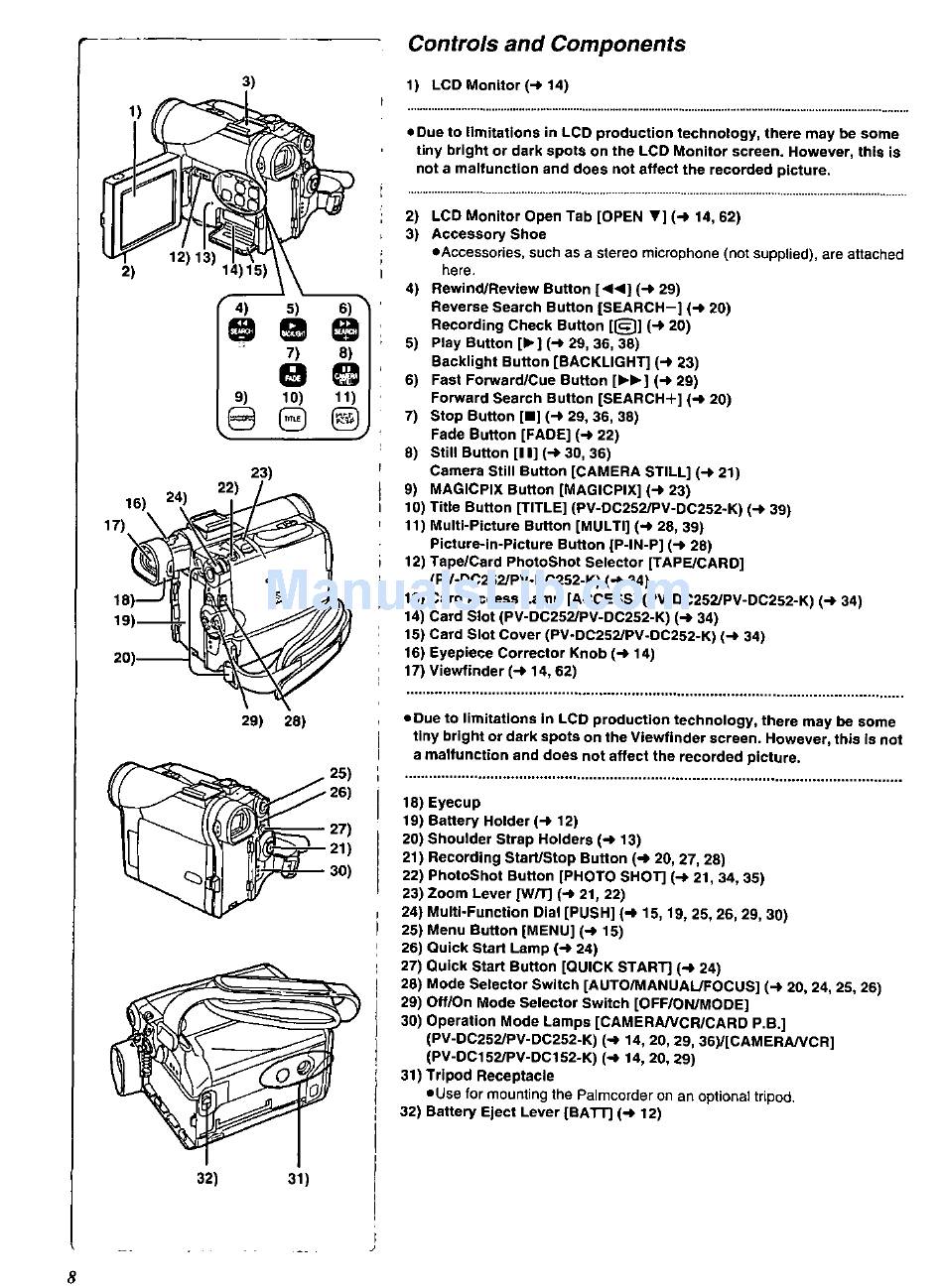

Controls and Components
1) LCD Monitor (_ 14)
• Due to limitations in LCD production technology, there may be some
tiny bright or dark spots on the LCD Monitor screen. However, this is
not a malfunction and does not affect the recorded picture.
2) LCD Monitor Open Tab [OPEN V] (_ 14, 62)
3) Accessory Shoe
oAccessories, such as a stereo microphone [not supplied), are attached
here.
4) Rewind/Review Button [ 41_1](_ 29)
Reverse Search Button [SEARCH-] (-_ 20)
Recording Check Button [{_] (-_ 20)
5] Play Button [1_] (_ 29, 36, 38]
Backlight Button [BACKLIGHT] (_ 23)
6] Fast Forward/Cue Button [IH_] [_ 29)
Forward Search Button [SEARCH+] [4 20)
7) Stop Button [11](_ 28, 36, 38)
Fade Button [FADE] (-_ 22)
8) Still Button [I I] (_ 38, 36)
Camera Still Button [CAMERA STILL] (_ 21)
9) MAGICPIX Button [MAGICPIX] (_ 23)
10) Title Button [TITLE] [PV-DC252/PV-DC252-K) (_ 39)
11) Multi-Picture Button [MULTI] (_ 28, 39)
Picture-in-Picture Button [P-IN-P] (_ 28)
12) Tape/Card PhotoShot Selector [TAPE/CARD]
[PV-DC252/PV-DC252-K) [-_ 34)
13) Card Access Lamp [ACCESS] (PV-DC252/PV-DC252-K) (-b 34)
14) Card Slot (PV-DC252/PV-DC252-K) (-_ 34)
t5] Card Slot Cover (PV-DC252/PV-DC252-K) (_ 34)
16) Eyepiece Corrector Knob (-P 14)
17) Viewfinder (_ 14, 62)
• Due to limitations in LCD production technology, there may be some
tiny bright or dark spots on the Viewflnder screen. However, this is not
a malfunction and does not affect the recorded picture.
18) Eyecup
19) Battery Holder (_ 12)
28) Shoulder Strap Holders (-_ 13)
21) Recording Start/Stop Button (-_ 20, 27, 28]
22) PhotoShot Button [PHOTO SHOT] (-b 21, 34, 35)
23) Zoom Lever [W/T] (_ 21, 22)
24) Multi-Function Dial [PUSH] (_ 15, 19, 25, 26, 29, 30)
25) Menu Button [MENU] (-b 15)
26) Quick Start Lamp (_ 24)
27) Quick Start Button [QUICK START] (_ 24)
28) Mode Selector Switch [AUTO/MANUAL/FOCUS] (-1 28, 24, 25, 26)
29) Off/On Mode Selector Switch [OFF/ONJMODE]
38) Operation Mode Lamps [CAMERAJVCR/CARD P.B.]
(PV-DC25?JPV-DC252-K) (_ 14, 20, 29, 36)/[CAMERAP/CR]
(PV-DC15?JPV-DC152-K) (-_ 14, 28, 29)
31) Tripod Receptacle
eUse for mounting the Palmcorder on an optional tripod.
32) Battery Eject Lever [BATr] (-_ 12)
