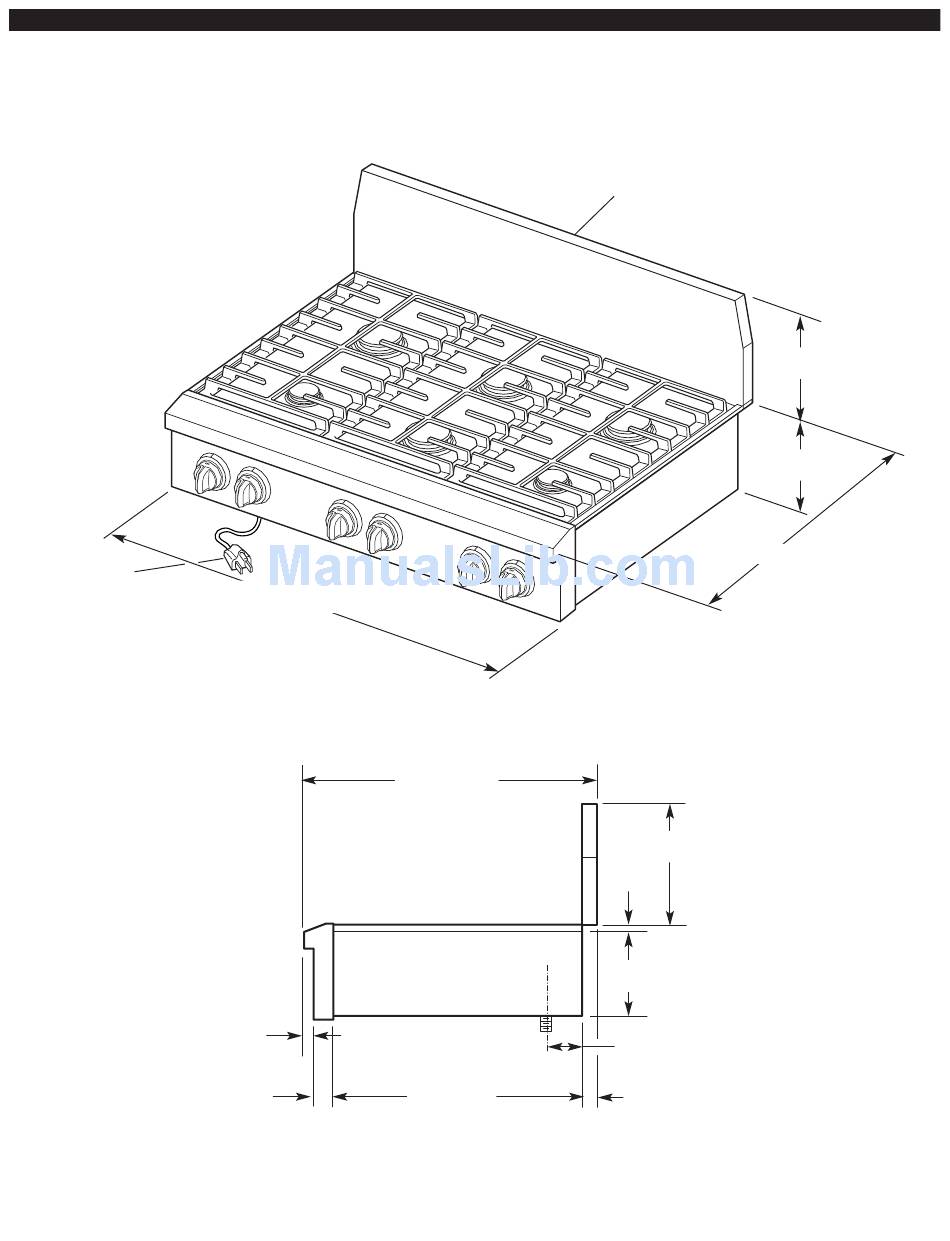

Product Dimensions - KitchenAid Pro Line KGCP487JSS2 Installation Instructions Manual

36" (91.4 cm) and 48" (121.9 cm) pro line gas cooktop with all sealed burners shown for residential use only
Hide thumbs

Advertisement

Table of Contents
36" (91.4 cm) cooktop with all
sealed burners shown
36" (91.4 cm) long
3-prong ground-
36" (91.4 cm) cooktop: 35-7/8" (91.1 cm)
type power
48" (121.9 cm) cooktop: 47-7/8" (121.6 cm)
supply cord

Product Dimensions

26-1/4" (66.7 cm)
7/8"
(22.2 mm)
2-3/16"
(55.6 mm)
22" (55.9 cm)
side view of cooktop
backguard (shown)
or island trim (see P. 4 and 7)
(22.9 cm)
(19.1 cm)
26-1/4" (66.7 cm)
9"
(22.9 cm)
3/8"
(9.5 mm)
7-1/8"
(18.1 cm)
gas inlet is located 1-7/8" (4.8 cm) from
back of burner box and
4-7/8" (12.4 cm) in from L.H. side of
burner box
1-3/16"
(30.2 mm)
9"
7-1/2"
3
