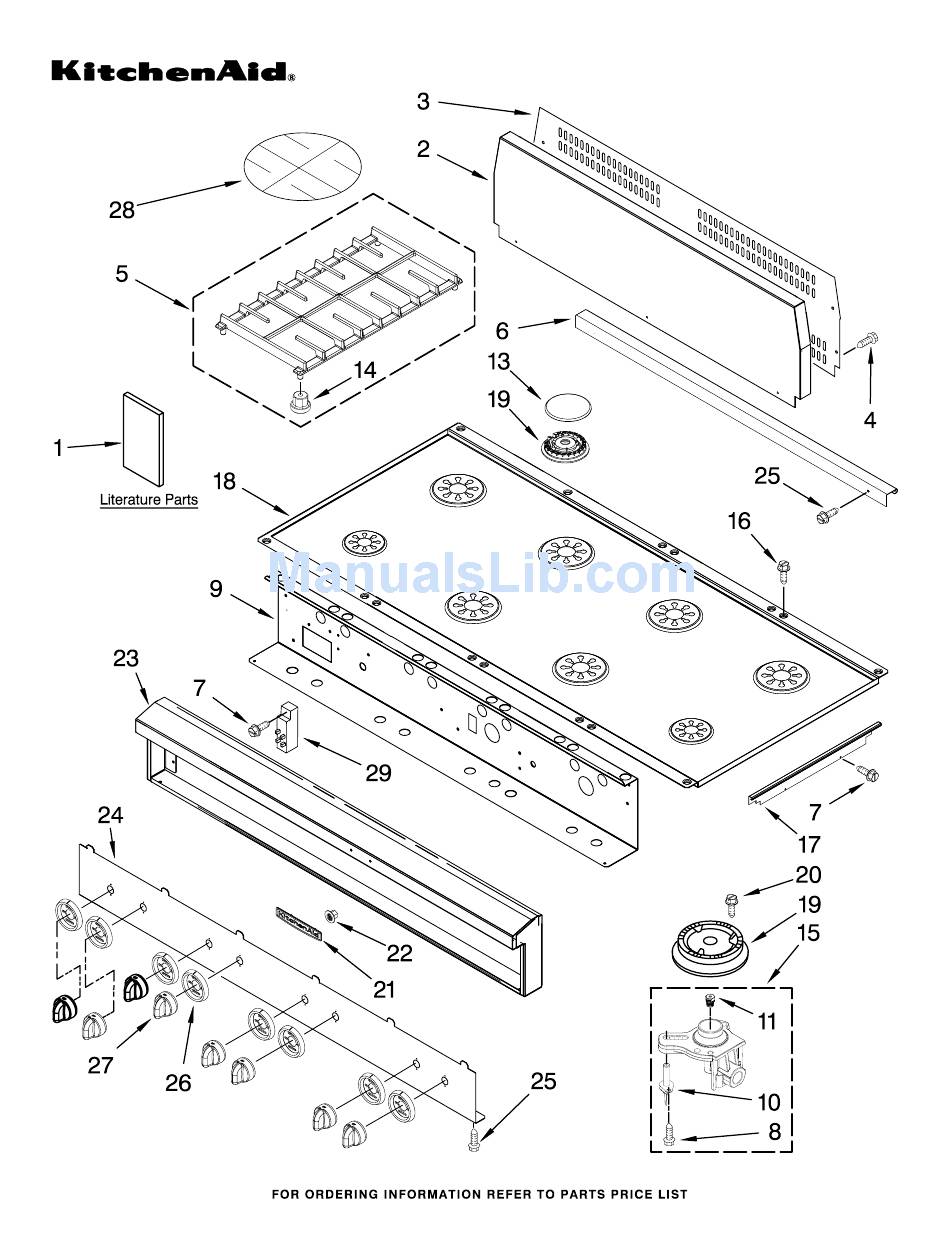

- Page 1 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP487JSS08 48" Stainless Professional Cooktop (Stainless) 09−08 Litho in U.S.A. (amd) (eeb) Part No.W10207231 Rev. A...
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP487JSS08 (Stainless) Illus. Part DESCRIPTION Literature Parts W10086200 Use & Care Guide 9759405 Installation Instructions 9759442 Instructions, LP Conversion 2 W10157555 Backsplash 8285058 Support,Backsplash 3196537 Screw 5 W10106670 Grate, Burner 6 W10157521 Trim, Island 3177991 Screw 8273062 Screw, Spark Electrode...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP487JSS08 (Stainless) W10207231...
- Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP487JSS08 (Stainless) Illus. Part DESCRIPTION 4455040 Tubing, Gas Burner − RF 4455041 Tubing, Gas Burner − RR 4455151 Tubing, Gas Burner − CF 4455152 Tubing, Gas Burner − CR 4455153 Tubing, Gas Burner −...
-
Page 5: Optional Parts
OPTIONAL PARTS For Model: KGCP487JSS08 (Stainless) Illus. Part DESCRIPTION WIRING HARNESS PARTS 9763116 Power Cord 1129449 Bushing 8285025 Harness, Wire Jumper Harness, Wire Ignitor 4456628 42" 4456627 28" 535183 Tie, Cable Miscellaneous 8284782 L.P. Orifice Spud Pack W10207231...
