36" (91.4 cm) and 48" (121.9 cm) commercial style gas cooktop (28 pages)
Summary of Contents for KitchenAid KGCP487JSS2
Page 1

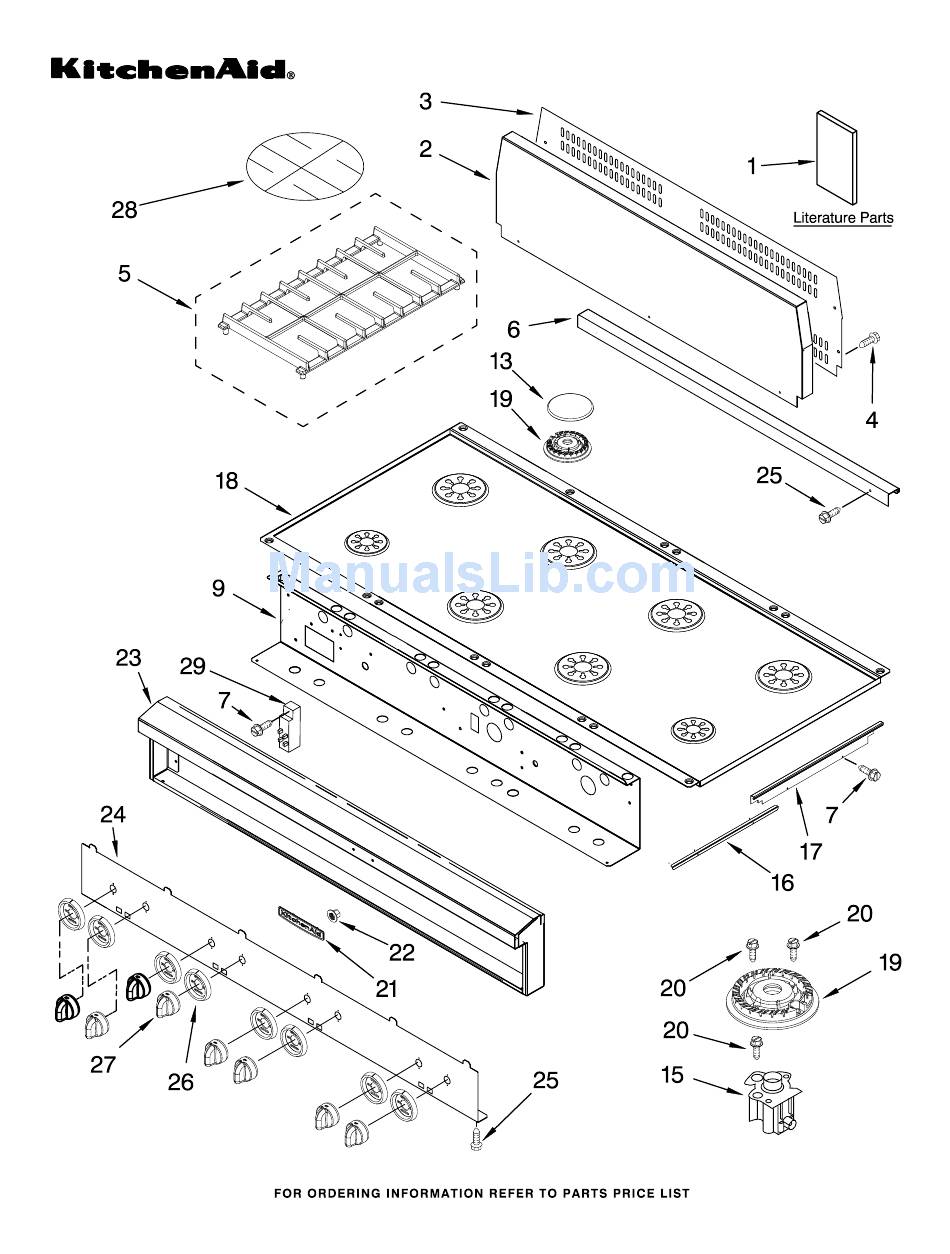

COOKTOP, BURNER AND GRATE PARTS For Model: KGCP487JSS2 48" Stainless Steel (Stainless Steel) Professional Cooktop Part No.8185936 9−01 Litho in U.S.A. (cre)
Page 2
COOKTOP, BURNER AND GRATE PARTS For Model: KGCP487JSS2 Illus. Part LIT4455062 Instructions, LIT8284671 Wiring Diagram LIT8284746 Use & Care Guide LIT8284979 Installation LIT8284780 Instructions, 8284730 Backsplash 8284760 Support,Backsplash 3196537 Screw, 8−18 x 3/8 4454963 Grate, Burner 8284728 Trim, Island 3177991 Screw, 8−18 x 1/4...
Page 3
BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP487JSS2 (Stainless Steel) 8185936...
Page 4
4455152 Tubing, Gas Burner − CR 4455153 Tubing, Gas Burner − LF 4455154 Tubing, Gas Burner − LR 8284737 Manifold PARTS NOT ILLUSTRATED For Model: KGCP487JSS2 (Stainless Steel) Illus. Part DESCRIPTION Valve, Burner 3192157 Large (6) 3191292 Small, LF−RF 3185829 Bolt, Valve 8284661 Burner Switch &...
