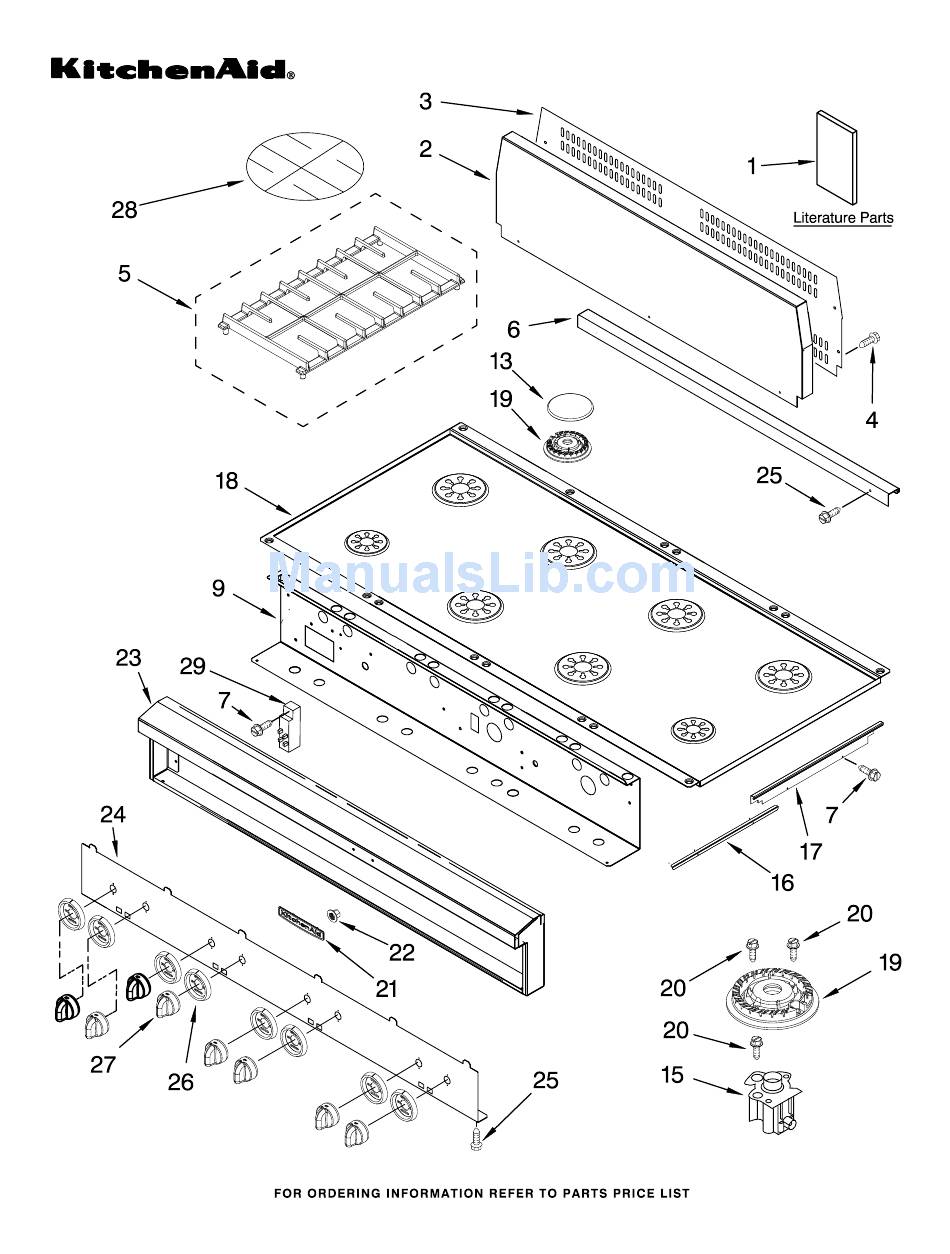

- Page 1 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP487JSS3 (Stainless Steel) 48" Stainless Steel Professional Cooktop 8−02 Litho in U.S.A. (cre) Part No.8186004...
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Model: KGCP487JSS3 (Stainless Steel) Illus. Part DESCRIPTION Literature Parts LIT8285063 Instructions, Island Trim LIT8284671 Wiring Diagram LIT8284746 Use & Care Guide LIT8284979 Installation Instructions LIT8284780 Instructions, LP Conversion 8285057 Backsplash 8285058 Support,Backsplash 3196537 Screw, 8−18 x 3/8 4454963 Grate, Burner 8284728 Trim, Island 3177991 Screw, 8−18 x 1/4...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP487JSS3 (Stainless Steel) 8186004...
- Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Model: KGCP487JSS3 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8284737 Manifold 4455040 Tubing, Gas 8284947 Support, Rear Valve, Burner Burner − RF 3191387 Seal, Switch 3192157 Large (6) 4455041 Tubing, Gas 3192811 Bracket, Burner 3191292 Small, LF−RF Burner −...
