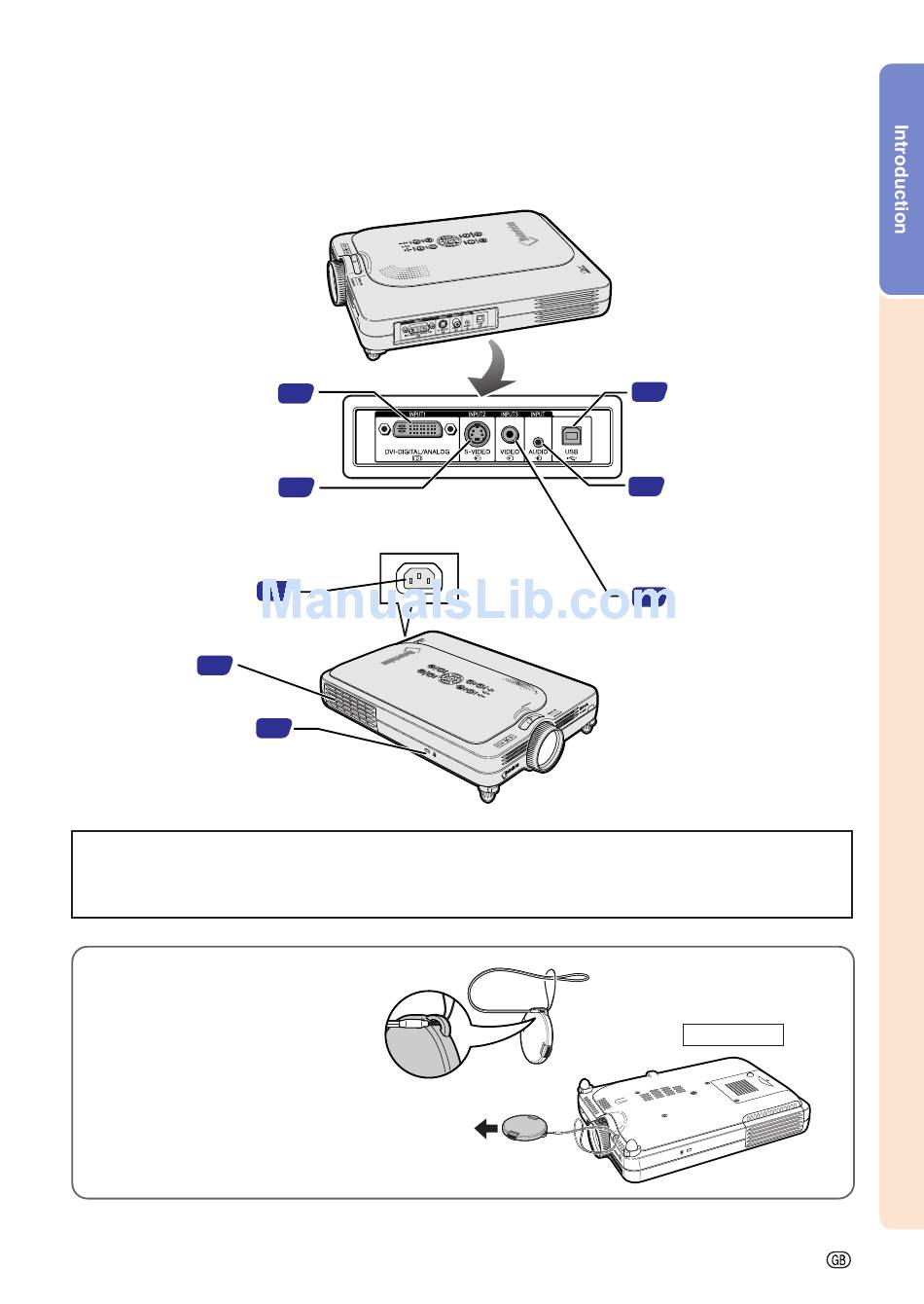

Projector (Side View)

INPUT 1 terminal
Port for DVI digital, computer
RGB, and COMPONENT
signals.
INPUT 2 terminal
Terminal for connecting video
equipment with an S-VIDEO
terminal.
AC socket
69
Exhaust vent
Kensington Security
Standard connector
Using the Kensington Lock
•
This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security
System. Refer to the information that came with the system for instructions on how to use it to secure the
projector.
Attaching the lens cap
After putting the lens cap strap on the
lens cap, pass the other end of the strap
through the hole under the projector, next
to the lens, as shown in the illustration.
21
24
20
11
26
USB terminal
For connecting a compu-
ter using a USB cable.
INPUT AUDIO terminal
21
Shared audio terminal for
INPUT 1, INPUT 2, and
INPUT 3.
24
INPUT 3 terminal
For connecting video
equipment.
Bottom View
-11
