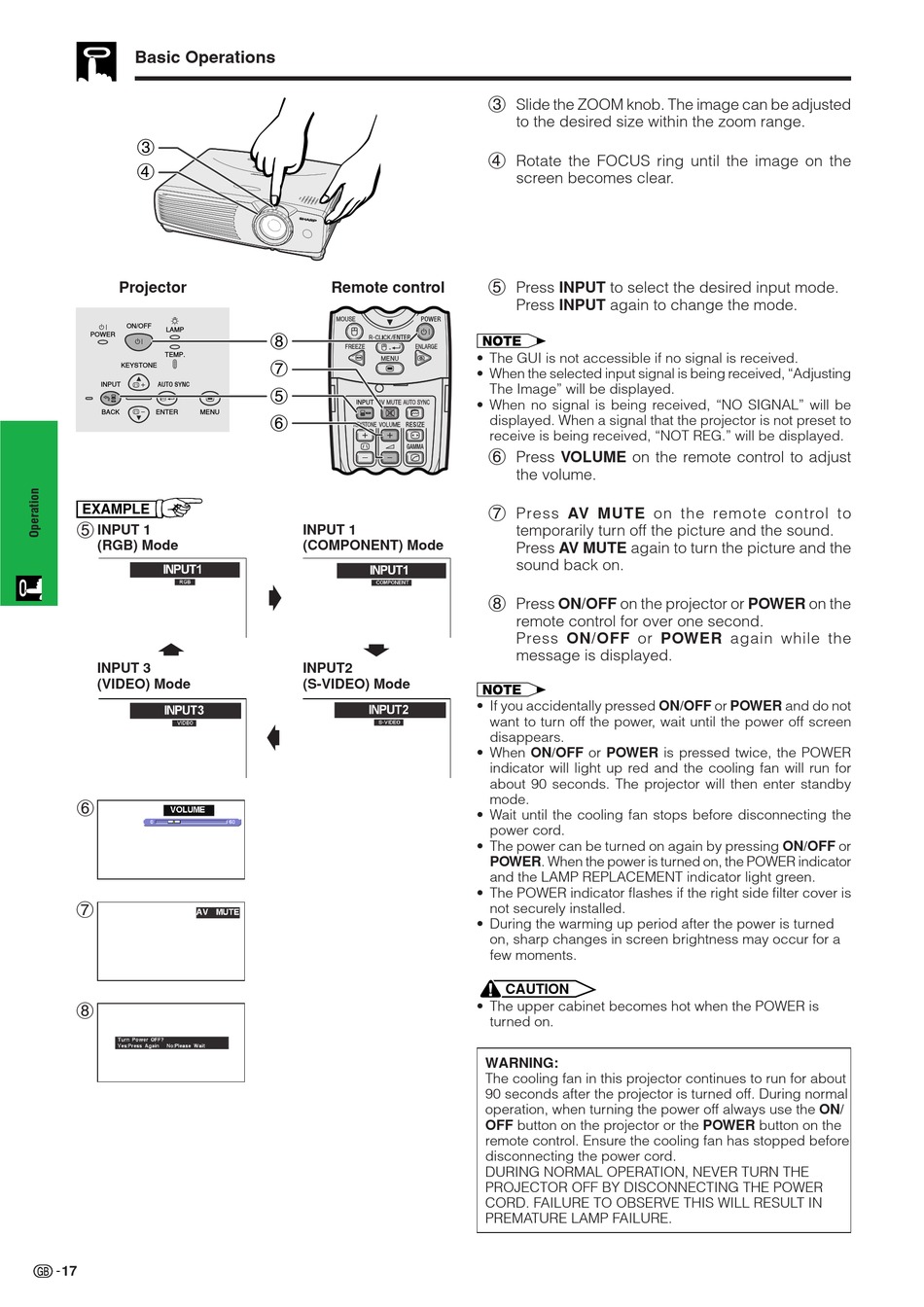

Sharp Notevision PG-C20XA Operation Manual page 18

Basic Operations
3
4
Projector
ON/OFF
LAMP
POWER
TEMP.
KEYSTONE
INPUT AUTO SYNC
BACK ENTER MENU
EXAMPLE
5
INPUT 1
(RGB) Mode
d
INPUT 3
(VIDEO) Mode
6
7
8
17
Remote control
8
7
5
6
INPUT 1
(COMPONENT) Mode
g
f
INPUT2
(S-VIDEO) Mode
s
3 Slide the ZOOM knob. The image can be adjusted
to the desired size within the zoom range.
4 Rotate the FOCUS ring until the image on the
screen becomes clear.
5 Press INPUT to select the desired input mode.
Press INPUT again to change the mode.
• The GUI is not accessible if no signal is received.
• When the selected input signal is being received, "Adjusting
The Image" will be displayed.
• When no signal is being received, "NO SIGNAL" will be
displayed. When a signal that the projector is not preset to
receive is being received, "NOT REG." will be displayed.
6 Press VOLUME on the remote control to adjust
the volume.
7 Press AV MUTE on the remote control to
temporarily turn off the picture and the sound.
Press AV MUTE again to turn the picture and the
sound back on.
8 Press ON/OFF on the projector or POWER on the
remote control for over one second.
Press ON/OFF or POWER again while the
message is displayed.
• If you accidentally pressed ON/OFF or POWER and do not
want to turn off the power, wait until the power off screen
disappears.
• When ON/OFF or POWER is pressed twice, the POWER
indicator will light up red and the cooling fan will run for
about 90 seconds. The projector will then enter standby
mode.
• Wait until the cooling fan stops before disconnecting the
power cord.
• The power can be turned on again by pressing ON/OFF or
POWER. When the power is turned on, the POWER indicator
and the LAMP REPLACEMENT indicator light green.
• The POWER indicator flashes if the right side filter cover is
not securely installed.
• During the warming up period after the power is turned
on, sharp changes in screen brightness may occur for a
few moments.
CAUTION
• The upper cabinet becomes hot when the POWER is
turned on.
WARNING:
The cooling fan in this projector continues to run for about
90 seconds after the projector is turned off. During normal
operation, when turning the power off always use the ON/
OFF button on the projector or the POWER button on the
remote control. Ensure the cooling fan has stopped before
disconnecting the power cord.
DURING NORMAL OPERATION, NEVER TURN THE
PROJECTOR OFF BY DISCONNECTING THE POWER
CORD. FAILURE TO OBSERVE THIS WILL RESULT IN
PREMATURE LAMP FAILURE.
