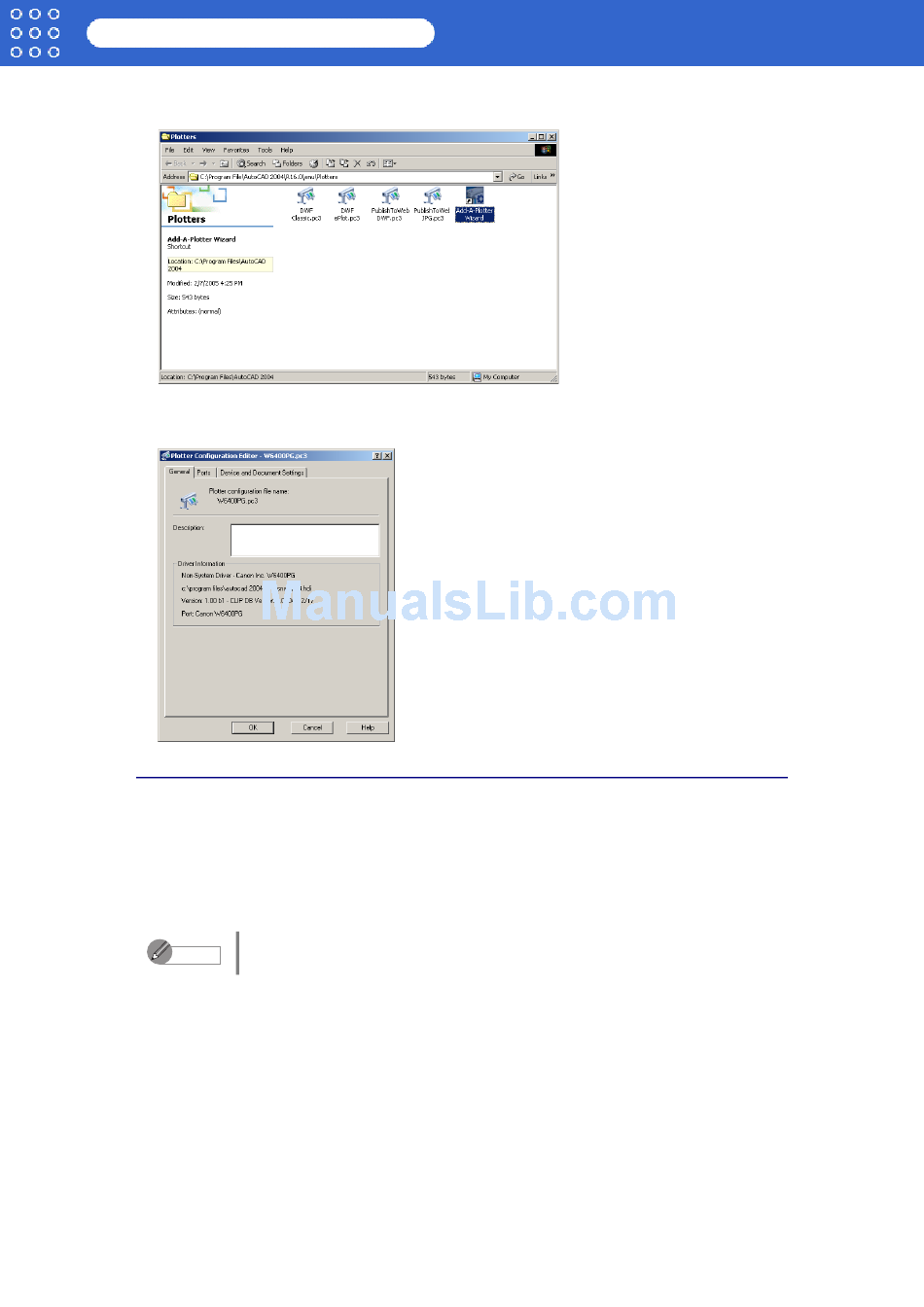

2. Double-click the Autodesk Plotter Manager icon.
The Plotters window opens.
3. Double-click the W6400PG icon (the icon name is the name of the printer you use) to open.
The Plotter Configuration Editor dialog box opens.

Plotter Configuration Editor Dialog Box Functions

The Plotter Configuration Editor dialog box has three sheets. The Plotter Configuration
Editor dialog box display can be manipulated by selecting the items on these sheets or in the
Explorer tree.
This section describes how to perform the settings in the Plotter Configuration Editor dialog
box.
For more details about the General sheet and the Ports sheet, please refer to
Note
the AutoCAD manual.

■ Device and Document Settings Sheet

Use this sheet to perform the main printing settings.
The settings for each item are shown in a tree structure on this sheet. When you select an item
the screen display changes so you make changes for the Resolution and other graphic
settings, the Media Type, Color Matching and Custom Properties settings, the Drying Time
and Roll Paper Margin for Safety and other detailed media settings.
