Installation and Assembly:

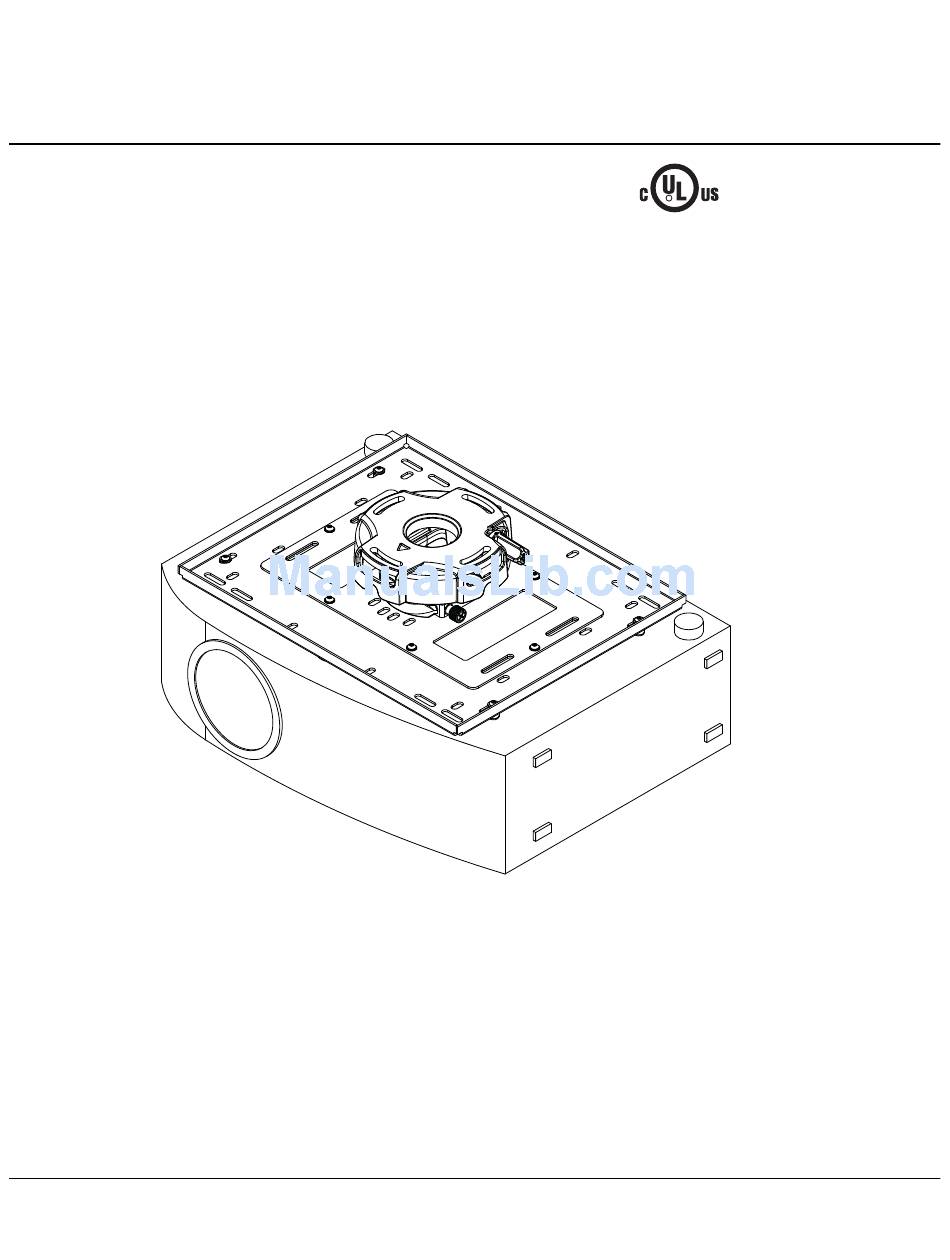

Advanced Projector Ceiling Mount with Precision Gear
Model: ELPMBPRG
Manufactured by Peerless Industries, Inc.
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
This product is UL Listed. It must be
installed by a qualified professional
installer.
R
Maximum UL Load Capacity: 50 lb (22.7 kg)
ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08
Advertisement
Table of Contents
Related Manuals for PEERLESS ELPMBPRG - Advanced Projector Ceiling Mount
Summary of Contents for PEERLESS ELPMBPRG - Advanced Projector Ceiling Mount
- Page 1 Installation and Assembly: Advanced Projector Ceiling Mount with Precision Gear Model: ELPMBPRG This product is UL Listed. It must be installed by a qualified professional installer. Maximum UL Load Capacity: 50 lb (22.7 kg) Manufactured by Peerless Industries, Inc. 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com ISSUED: 04-01-08 SHEET #: 055-9254-3 05-29-08...
-
Page 2: Table Of Contents
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings con- tained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, call Peerless customer care at 1-800-729-0307. -
Page 3: Parts List
Before you start check the parts list to ensure all of the parts shown are included. Parts List Description Qty. Part Number A projector mount assembly 055-2804 B adapter plate 055-2806 C dedicated adapter plate 055-2871 D M4 x 20 mm socket pin serrated washer head screw 510-2163 E M5 x 20 mm socket pin serrated washer head screw 510-2065... -
Page 4: Installation To Extension Column
Installation to Extension Column NOTE: Refer to accompanying instructions for ELPMBP01, ELPMBP02, ELPMBP03 or CMJ and ACC Series Ceiling Mounts (sold separately) for installing these models to ceiling. Screw projector mount assembly (A) onto extension column as shown in figure 1.1. NOTE: Swivel stop screw is used to jam against threads of extension column or flush mount tube to prevent any excess movement of projector mount assembly (A) as shown in detail 1. -
Page 5: Installation To Wood Joist Ceilings
Installation To Wood Joist Ceilings WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that projector mount assembly is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. -
Page 6: Installation To Concrete Ceilings
Installation to Concrete Ceilings WARNING • Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor. • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard- ware and components. -
Page 7: Installing Plates To Projector
Installing Plates to Projector CAUTION • All spacers shall be used where indicated. Not using spacers can cause damage to projector. • It is the responsibility of the installer to ensure that the projector is properly ventilated. ® NOTE: For all PowerLite models, the manufacturer's product weight must be reviewed to ensure that the weight does not exceed 50 lbs. - Page 8 NOTE: Shoulder indicates back of adapter plate (B) Flip projector upside down. Find your projector model from the hole patterns listed below. Using the holes indicated on the corresponding hole pattern diagram, attach adapter plate (B) to projector using the appropriate number of M4 x 20 mm socket pin serrated washer head screws (D) and spacers (F).
-
Page 9: Installing Connection Block To Projector Mount Assembly
Installing Connection Block to Projector Mount Assembly WARNING • Always use an assistant or mechanical lifting equipment to safely lift and position the projector. Slide connection block with projector into projector mount assembly (A) as shown. Tighten captive screw to secure projector to projector mount assembly (A). -
Page 10: Cable Management
Cable Management To make an opening to route cables through projector mount assembly, adjust projector mount KNOB FOR ROLL KNOB FOR TILT assembly to full upward tilt position and maximum ADJUSTMENT ADJUSTMENT left or right roll position by turning knobs for adjustments as shown in figure 5.1. -
Page 11: Projector Alignment
Projector Alignment To adjust yaw (swivel) for extension column installation: Loosen screw on projector mount assembly (A) indicated below until projector mount can be rotated. Rotate mount to desired position and retighten screw. To adjust pitch (forward and backward tilt): Turn knob on back of mount as shown below. Pull knob out and turn by hand for easy adjustment or insert #2 phillips screwdriver in end of knob and turn. -
Page 12: Accessories And Warranty Information
Accessories NOTE: All accessories are available for purchase through Epson (www.epson.com) ELPMBP01 ELPMBP02 Adjustable Suspended Ceiling Channel Kit False Ceiling Plate Kit • Mounts above 2' x 2' or 2' x 4' ceiling tile • Replaces a 2' x 2' ceiling tile and mounts to...
