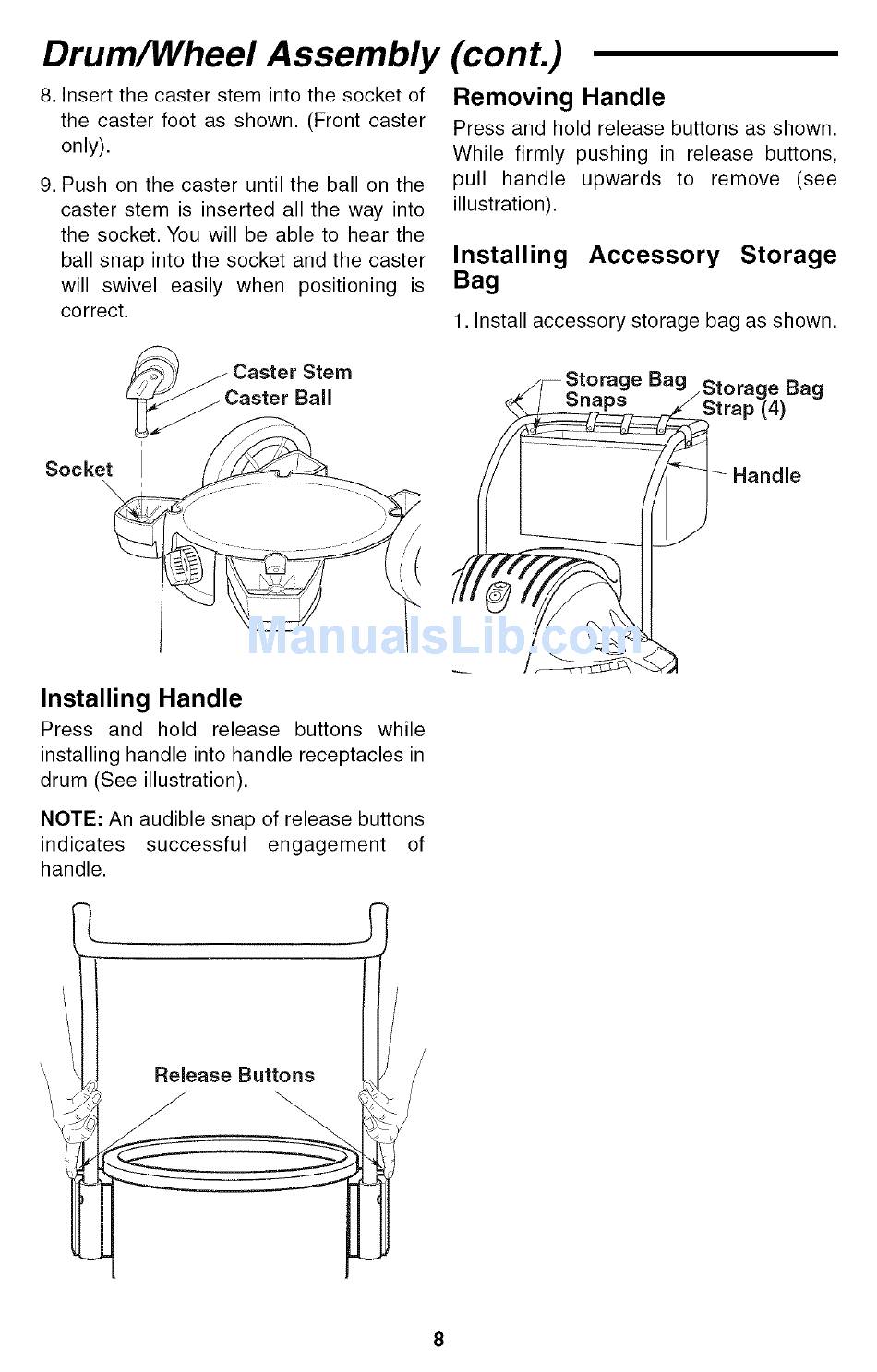

8.Insert thecaster stem into thesocket of
thecaster f ootasshown. (Front caster
only).
Drum/Wheel
Assembly
(cont.)
Removing
Handle
Press and hold release buttons as shown.
While firmly pushing in release buttons,
pull
handle
upwards
to
remove
(see
illustration).
9. Push on the caster until the ball on the
caster stem is inserted all the way into
the socket. You will be able to hear the
ball snap into the socket and the caster
will swivel easily when
positioning
is
correct.
Socket
Cast e r Stem
aster Ball
Installing
Handle
Press
and hold
release
buttons
while
installing handle into handle receptacles in
drum (See illustration).
Installing
Accessory
Storage
Bag
1. Install accessory storage bag as shown.
,/F
Storage Bag .Storage
Bag
NOTE: An audible snap of release buttons
indicates
successful
engagement
of
handle.
Release Buttons
