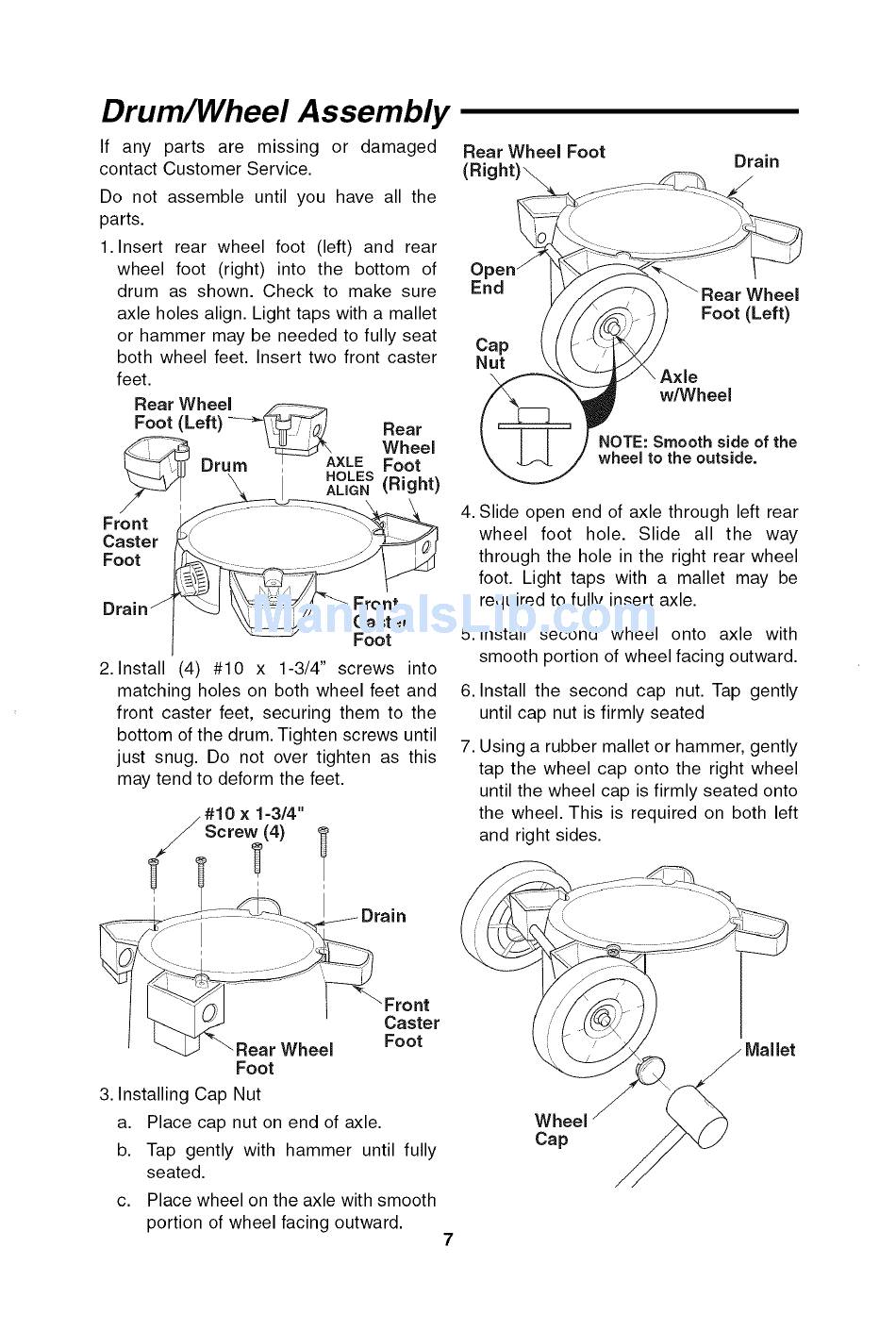

Drum/Wheel
Assembly
If any parts
are
missing
or damaged
contact Customer Service.
Do not assemble
until you have all the
parts.
1. Insert
rear wheel foot (left) and rear
wheel foot (right)
into the bottom
of
drum as shown. Check to make sure
axle holes align. Light taps with a mallet
or hammer may be needed to fully seat
both wheel feet. Insert two front caster
feet.
Rear Wheel
/F--_-_
Foot (Left) ---_J
Rear
Wheel
Drum
AXLE
Foot
HOLES (Right)
ALIGN
Front
Caster
Foot
Front
Caster
Foot
2. Install
(4) #10
x 1-3/4" screws
into
matching holes on both wheel feet and
front caster feet, securing them to the
bottom of the drum. Tighten screws until
just snug. Do not over tighten as this
may tend to deform the feet.
#10x1=3/4"
Screw (4)
_'
'
Caster
Wheel
Foot
Foot
3. Installing Cap Nut
a. Place cap nut on end of axle.
b. Tap gently with hammer
until fully
seated.
c.
Place wheel on the axle with smooth
portion of wheel facing outward.
Rear Wheel Foot
Drain
/
O
End
Cap
Nut
Wheel
Foot (Left)
w/Wheel
NOTE: Smooth side of the
wheel to the outside.
4. Slide open end of axle through left rear
wheel
foot
hole.
Slide
all the
way
through the hole in the right rear wheel
foot. Light taps with a mallet may be
required to fully insert axle.
5. Install
second
wheel
onto
axle with
smooth portion of wheel facing outward.
6. Install the second cap nut. Tap gently
until cap nut is firmly seated
7. Using a rubber mallet or hammer, gently
tap the wheel cap onto the right wheel
until the wheel cap is firmly seated onto
the wheel. This is required on both left
and right sides.
Wheel
Cap
