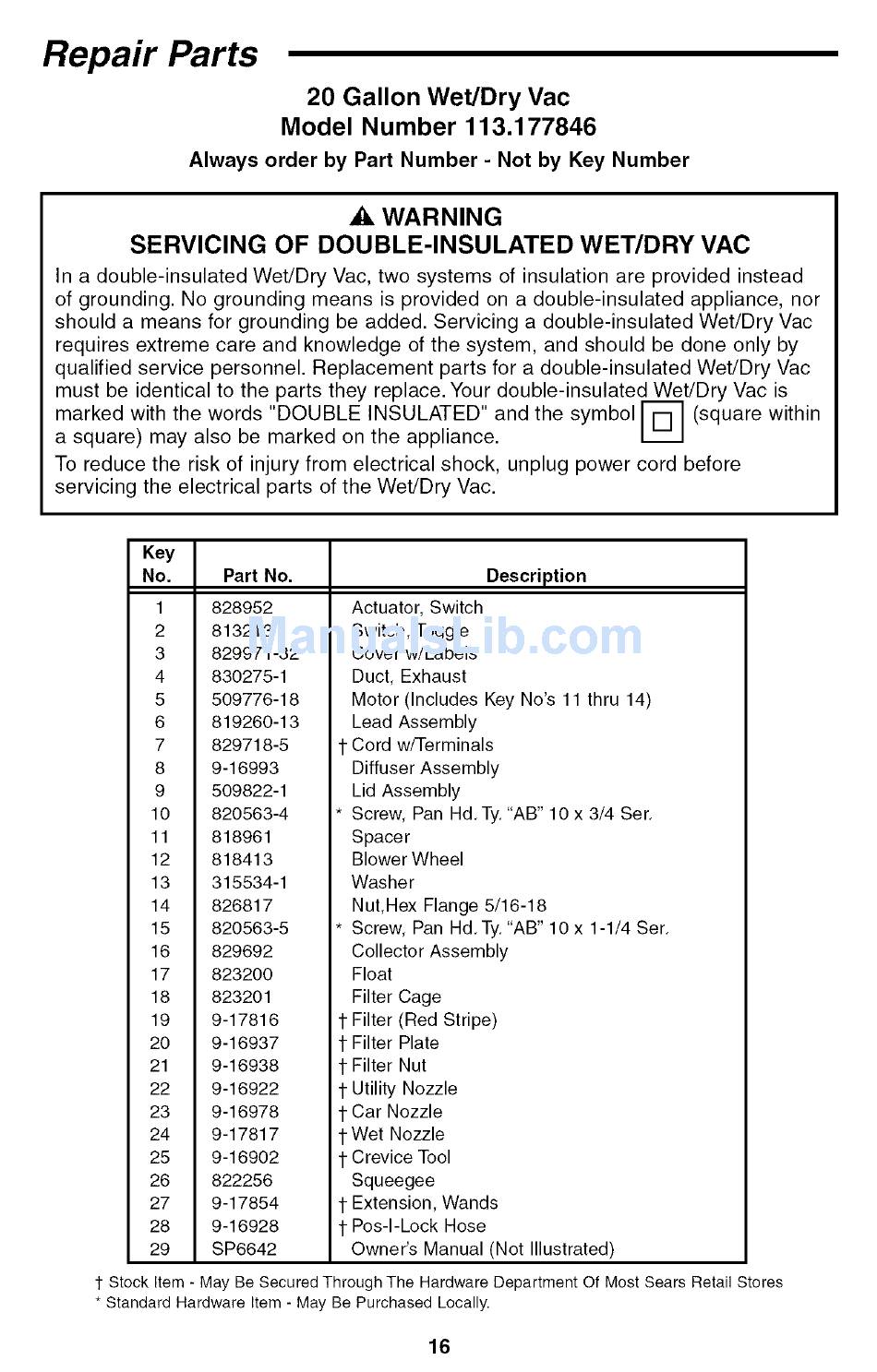

Repair Parts
20 Gallon Wet/Dry
Vac
Model Number
113.177846
Always
order
by Part Number
- Not by Key Number
WARNING
SERVICING
OF DOUBLE-INSULATED
WET/DRY
VAC
In a double-insulated
Wet/Dry Vac, two systems of insulation are provided instead
of grounding. No grounding means is provided on a double-insulated
appliance, nor
should a means for grounding be added. Servicing a double-insulated
Wet/Dry Vac
requires extreme care and knowledge of the system, and should be done only by
qualified service personnel. Replacement parts for a double-insulated
Wet/Dry Vac
must be identical to the parts they replace. Your double-insulated
Wet/Dry Vac is
marked with the words "DOUBLE INSULATED" and the symbol _-]
(square within
a square) may also be marked on the appliance.
To reduce the risk of injury from electrical shock, unplug power cord before
servicing the electrical parts of the Wet/Dry Vac.
Key
No.
Part No.
1
828952
2
813213
3
829971-32
4
830275-1
5
509776-18
6
819260-13
7
829718-5
8
9-16993
9
509822-1
10
820563-4
11
818961
12
818413
13
315534-1
14
826817
15
820563-5
16
829692
17
823200
18
823201
19
9-17816
20
9-16937
21
9-16938
22
9-16922
23
9-16978
24
9-17817
25
9-16902
26
822256
27
9-17854
28
9-16928
29
SP6642
Description
Actuator, Switch
Switch, Toggle
Cover w/Labels
Duct, Exhaust
Motor (Includes Key No's 11 thru 14)
Lead Assembly
t Cord w/Terminals
Diffuser Assembly
Lid Assembly
* Screw, Pan Hd.Ty. "AB" 10 x 3/4 Ser.
Spacer
Blower Wheel
Washer
Nut, Hex Flange 5/16-18
* Screw, Pan Hd.Ty. "AB" 10 x 1-1/4 Ser.
Collector Assembly
Float
Filter Cage
t Filter (Red Stripe)
t Filter Plate
t Filter Nut
t Utility Nozzle
t Car Nozzle
t Wet Nozzle
t Crevice Tool
Squeegee
t Extension, Wands
t Pos-I-Lock Hose
Owner's Manual (Not Illustrated)
1 Stock Item - May Be Secured Through The Hardware Department
Of Most Sears Retail Stores
* Standard Hardware
Item - May Be Purchased
Locally.
