Rear cover assembly removal

1. Remove the fuser assembly. See
2. Remove the transfer belt unit. See
3. Remove the right cover. See

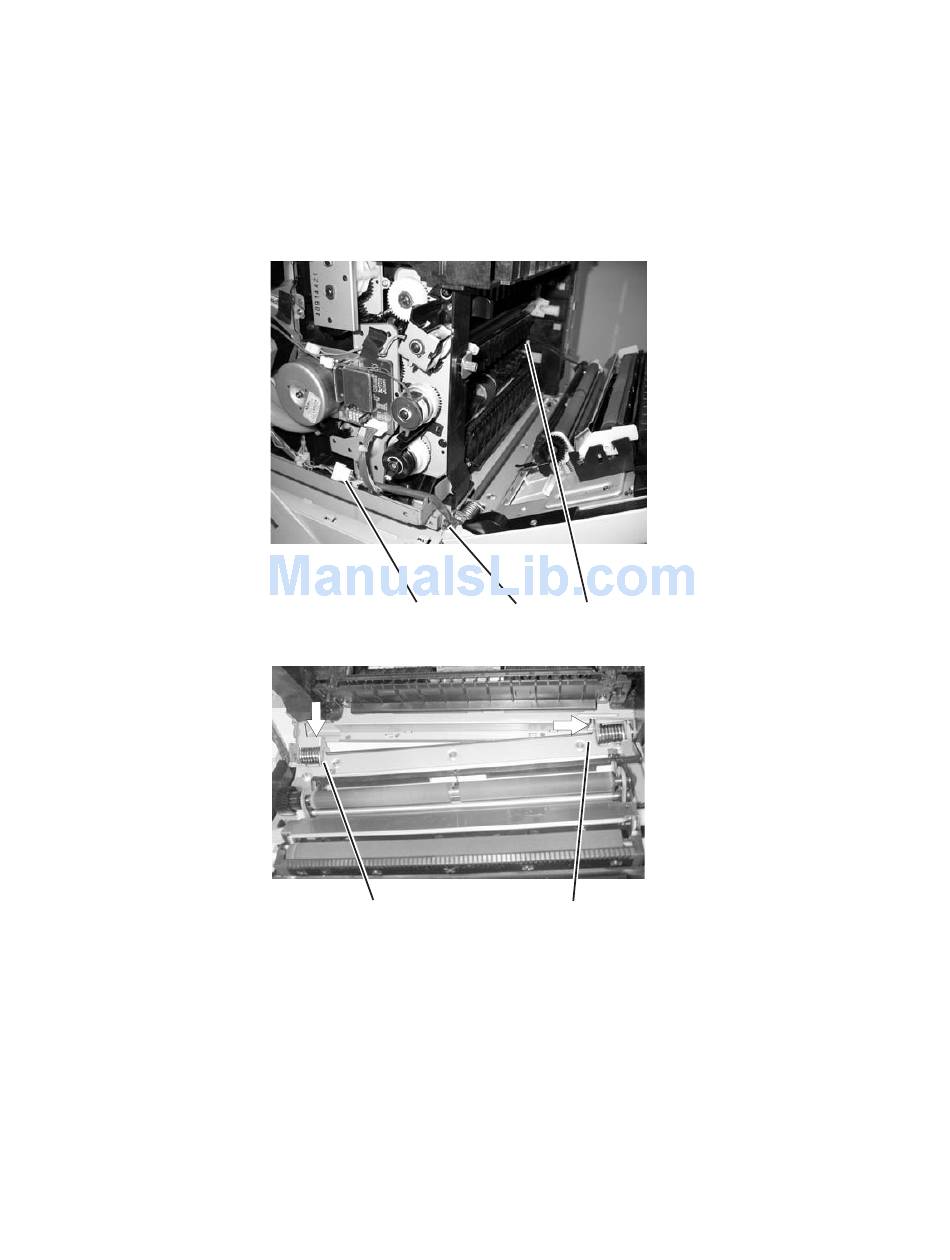

4. Disconnect the rear cover assembly connector (A).
5. Remove the support pin (B), disconnecting the support cable from the MFP.
6. Remove two screws (C) from the rear cover assembly.
7. Slide the right side of the rear cover assembly away from the MFP until the hinge clears the slot.
8. Slide the rear cover assembly toward the right side until the captured end of the rear cover assembly
clears the mounting bracket.
9. Remove the rear cover assembly by pulling it away from the MFP.
