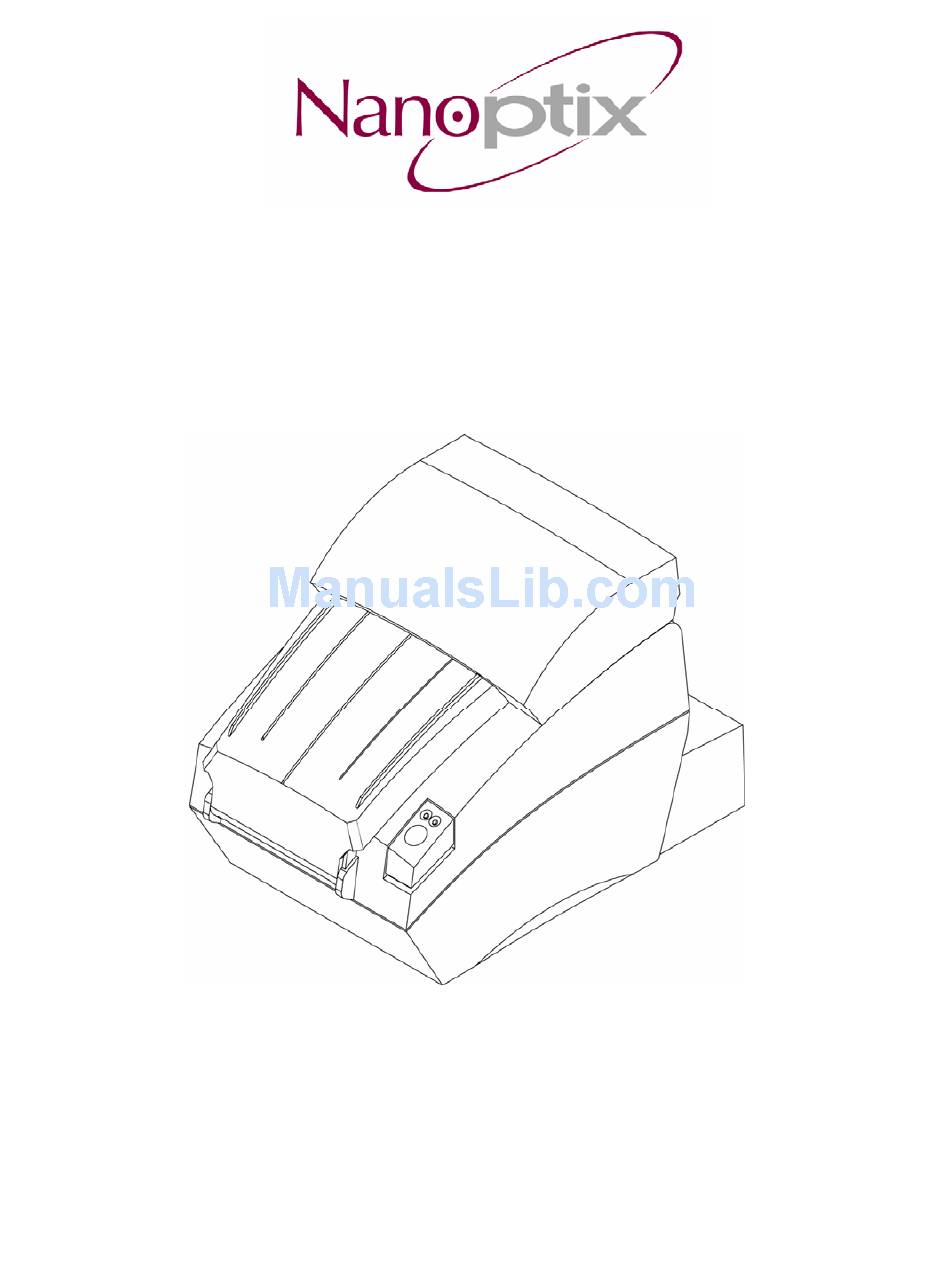

- Page 1 Spill-Proof Cuts Thermal Printer Owner's Manual First Edition: JUNE 2005 Last Revision: AUGUST 2006 Document #103494...
-
Page 2: Legal Notices
Printed in Canada Confidential, Unpublished Property of Nanoptix Inc. Trademarks Epson is registered trademark of Epson Corporation. Windows is registered trademark of Microsoft Corporation. Nanoptix is a trademark. Other trademarks and registered trademarks are the property of their respective holders. - Page 3 An approved Nanoptix interface cable must be used with this product. Using a cable other than Nanoptix approved product will require that you test the cable with the Nanoptix Inc. printer and your system for FCC and CE mark certification.
-
Page 4: Table Of Contents
2.2 Ordering Thermal Paper ...10 2.3 Ordering Miscellaneous Supplies ...11 Ordering Power Supply and Power Cords... 11 Ordering Communication Cables... 12 Communication Cables Pin-Out ... 12 Communicating with the Printer ... 15 APPENDIX A: Mechanical Drawings... 16 103494 Aug. 2006 Spill-Proof Cuts Thermal Printer... - Page 5 XAMPLE 8: S LED... 8 IGURE TATUS 9: M IGURE ECHANICAL IMENSIONS 103494 Aug. 2006 Spill-Proof Cuts Thermal Printer ... 1 RINTER UTS CONNECTION RETAINED WITH PLASTIC POSTS PTIONAL LASTIC OVER ... 7 ... 16 Owner’s Manual ... 2 ... 2...
- Page 6 ABLE MALE NTERFACE 12: RS-232 DB25 ABLE FEMALE 13: C ABLE RAWER NTERFACE 103494 Aug. 2006 Spill-Proof Cuts Thermal Printer LED... 8 ... 9 ROBLEMS ... 9 ... 10 ... 10 UMBERS ... 11 ... 11 ... 12 UMBERS ... 12 NTERFACE ...
-
Page 7: About The Printer
With thermal printing technology, there is no ribbon cassette to change, and paper loading is extremely simple. The printer has a built in power supply making it very compact allowing it to fit almost anywhere. The printer is also very easy to use. -
Page 8: Connection
Spill-Proof Cuts Thermal Printer Owner’s Manual 1.2 Connection To prevent the Nanoptix Spill-Proof Cuts Printer from accidental disconnect, the USB and the Power cable can be retained using the plastic posts and cover shown in Figures 2 and 3. Plastic Post... -
Page 9: General Specifications
Sensors Human Interface Dimensions Weight Agency Compliance Emission Standards 103494 Aug. 2006 Spill-Proof Cuts Thermal Printer Direct Thermal 8 dot/mm (203 dpi) 80mm 80mm or 82.5 mm 82.5mm 0 to 50 C -40 C to +65 C 5% to 90% RH at 50C (non-condensing) -
Page 10: Printer Controls
1.4 Printer Controls To reset Printer In the event of a fault condition, simply turn the power switch off and on again. The printer will go through a startup routine and reset itself. Lift Top Cover Figure 4: Resetting Printer 103494 Aug. -
Page 11: Paper Feed Button
Spill-Proof Cuts Thermal Printer Owner’s Manual Paper Feed Button Use the Paper Feed Button to advance the paper. Figure 5: Paper Feed Button 103494 Aug. 2006... -
Page 12: Changing Paper
1.5 Changing Paper Caution: Do not operate the printer if it runs out of paper. The printer will not operate without paper, but it may continue to accept data from the host computer. Because the printer cannot print any transactions, the data may be lost. -
Page 13: Testing The Printer
1.6 Testing the Printer Run this test to check the printer. The test prints and cuts a resident test ticket. Verify this ticket to ensure unit is printing and operating correctly. To print the test ticket, power-on the printer while pressing and holding the Paper Feed Button (figure 5) for approximately 3 seconds. -
Page 14: Troubleshooting The Printer
The printer is simple and generally trouble-free, but from time to time minor problems may occur. Follow these procedures to determine the cause and resolution of any problems the printer may be having. If the procedures in this section do not correct the problem, contact a service representative. -
Page 15: Printing Problems
Problem Possible Causes Printer Does Not Printer not plugged in. Function When Turned Door not fully closed. Table 4: Printer Does Not Work 103494 Aug. 2006 Spill-Proof Cuts Thermal Printer Owner’s Manual What to Do Open the top cover, inspect and clear any jammed paper. -
Page 16: Media And Supplies Guide
2. Media and Supplies Guide 2.1 Thermal Paper Specifications The printer requires qualified thermal paper with the following dimensions: Width 80 mm ± .2 mm (3.15 in. ± .008 in.) Table 5: Thermal Paper Dimensions The paper must not be attached to the core. If Top of Form Option is installed, paper with a colored stripe at the end can be used to indicate that the paper is running low. -
Page 17: Ordering Miscellaneous Supplies
24V, 60W Power Supply Table 8: Power Cord Part Numbers Contact your Nanoptix sales representative for more information from our toll free line at 1-888-983-3030. 103494 Aug. 2006 Spill-Proof Cuts Thermal Printer Owner’s Manual Numbers Tel: 920-734-9841 Toll-free: 800-922-1729 1.888.KANZAKI... -
Page 18: Ordering Communication Cables
Several connector options are available depending on the interface card installed on the back on the printer. For all cases, the Cash Drawer and USB are installed. The Cash Drawer drivers can supply up to 2 Amp when not printing. -
Page 19: Table 11: Rs-232 Db9 Male Interface
Signal Name AUX_PWR RS232_RXD RS232_TXD RS232_RTS DGND RS232_CTS RS232_RTS RS232_CTS nc or PWR Table 11: RS-232 DB9 male Interface 103494 Aug. 2006 Spill-Proof Cuts Thermal Printer Printer I/O Host I/O 5V Output Input Output Output Input Output Input Ground Ground Input... -
Page 20: Table 12: Rs-232 Db25 Female Interface
RS232_RTS or 4k7pu INIT Table 12: RS-232 DB25 female Interface Signal Name DGND Cash 1 Cash 2 Stat Table 13: Cash Drawer Interface 103494 Aug. 2006 Spill-Proof Cuts Thermal Printer Printer I/O Host I/O Ground Ground Output Input Input Output Output Input... -
Page 21: Communicating With The Printer
Over the years, Nanoptix has developed a multitude of emulation for compatibility with the most popular printers in the market. At the time of printing this manual, we have the following emulations available: Epson LQ570+ Epson TM-T88III Star TUP-400 Axiohm A722... -
Page 22: Appendix A: Mechanical Drawings
Spill-Proof Cuts Thermal Printer Owner’s Manual 4. APPENDIX A: Mechanical Drawings Figure 9: Mechanical Dimensions 103494 Aug. 2006...
