Summary of Contents for Nanoptix Paycheck 2

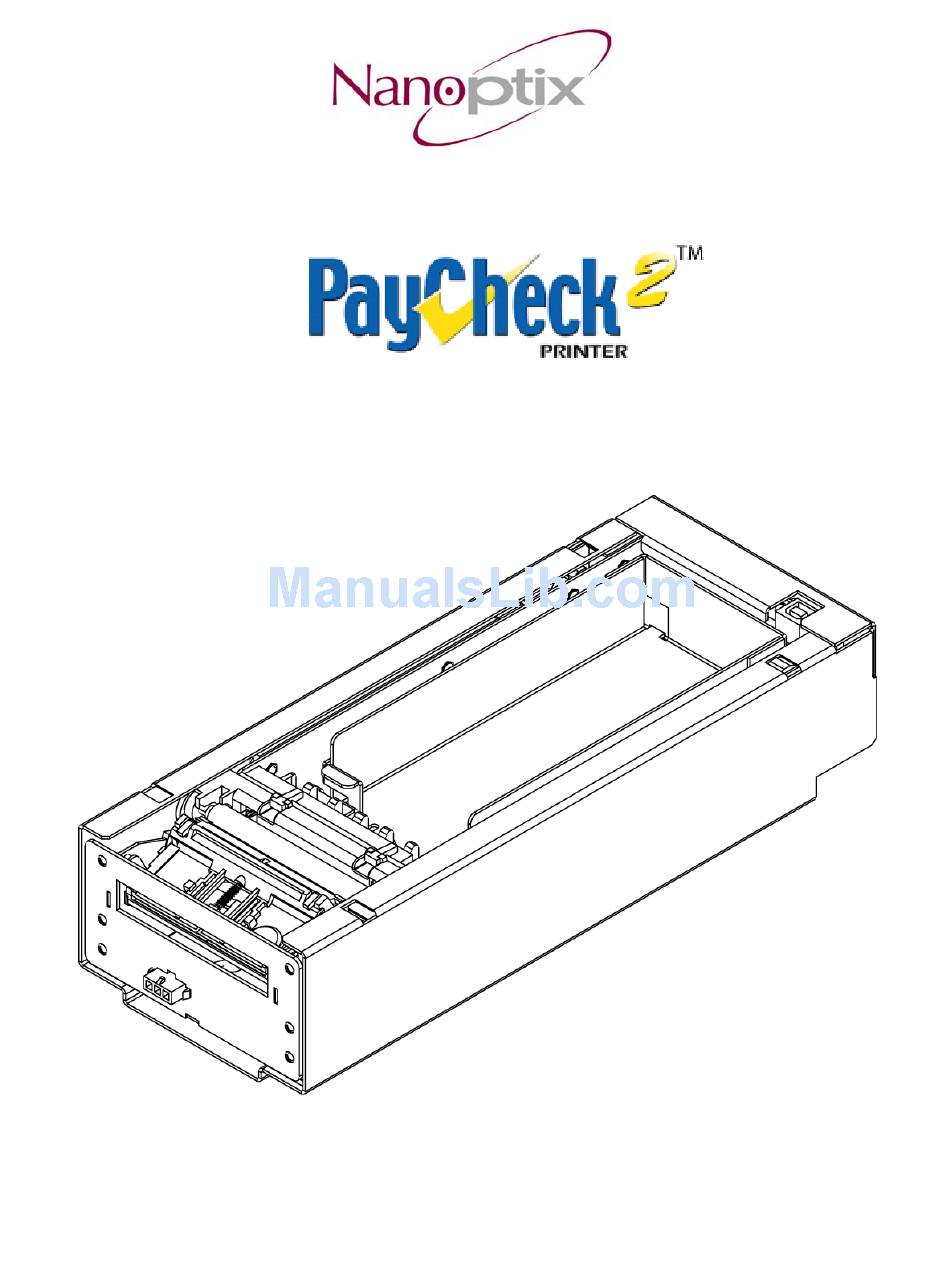

- Page 1 Owner's Manual First Edition: December 2002 Last Revision: November 2010...
-
Page 2: Legal Notices
However, there is no guarantee that interference to radio communications will not occur in a particular commercial installation. If this equipment does cause interference, which can be determined by turning the equipment off and on, the user is encouraged to contact Nanoptix Inc. immediately. - Page 3 AC line filtering, over-current and short-circuit protection. Use of this product with a power supply other than the Nanoptix Inc. power supply will require you to test the power supply and Nanoptix Inc. printer for FCC and CE mark certification.
-
Page 4: Revision History
Revision History Date Changes Author 22/11/2001 Document Created Denis Daigle 15/07/2003 Corrections to text Denis Daigle 15/01/2004 Corrections, added FX chipset option P.Chiasson 01/03/2005 Added hot swappable option P.Chiasson 15/11/2005 Revised for Paycheck II P.Chiasson 15/11/2010 Revised protocol description G. Robichaud... -
Page 5: Table Of Contents
Table of Contents Revision History ................iii About the Printer ..............1 1.1 Description of Printer ...................1 1.2 General specifications..................2 1.3 Printer Controls.....................3 Printer Reset (Service use only) ....................3 Paper Feed Button........................3 LED ............................4 1.4 Changing Paper ....................5 1.5 Testing the Printer ..................6 1.6 Troubleshooting the Printer.................7 Troubleshooting with LED...................... - Page 6 Figures 1: N ..........1 IGURE ANOPTIX AYCHECK RINTER 2: P ................. 3 IGURE RINTER ESET 3: P ..............3 IGURE APER UTTON 4: LED ................4 IGURE S POSITION 5: L ................ 5 IGURE OADING APER 6: T ................6 IGURE ICKET 7: M...
- Page 7 Tables 1: S ................2 ABLE PECIFICATION 2: T LED............. 7 ABLE ROUBLESHOOTING WITH 3: T ........7 ABLE ROUBLESHOOTING RINTING ROBLEMS 4: P ............8 ABLE RINTER 5: O ............8 ABLE RDERING HERMAL APER 6: P ................ 11 ABLE UMBERS 7: C...
-
Page 8: About The Printer
1. About the Printer 1.1 Description of Printer The Nanoptix Paycheck II Printer, also known as Triton, is extremely fast, quiet, and very reliable. With thermal printing technology, there is no ribbon cassette to change, and paper loading is extremely simple. The printer is small enough to fit almost anywhere and is easy to use with the ticket exiting from the front. -
Page 9: General Specifications
1.2 General specifications Print Method Direct Thermal Resolution 8 dot/mm (203 dpi) 64mm Print Width 65mm Paper Width Cartridge Size 200, 400, 800 Operating Temperature 0 to 50 C Storage Temperature -40 C to +65 C 5% to 90% RH at 50C (non-condensing) Operating Relative Humidity Serial and USB Communication Interface Options... -
Page 10: Printer Controls
1.3 Printer Controls Printer Reset (Service use only) To reset the printer, simply unplug and plug the cable. Once plugged in, the printer goes through a startup routine and resets itself. Figure 2: Printer Reset Paper Feed Button Use the Paper Feed Button to advance the paper. The paper will automatically feed. Tear off the form that has been fed and the printer will be ready to print on a full form. -
Page 11: Led
The LED on the main controller board shows the printer status. Please refer to section 1.7 for LED status and troubleshooting with LED. An external LED can be connected through the front 3-pin Molex connector. The pin-out is described in section 2.3. Error LED Status LED (RED) -
Page 12: Changing Paper
1.4 Changing Paper Change the paper when the paper is low or out. Caution: Do not operate the printer or host computer if the printer runs out of paper. The printer will not operate without paper, but it may continue to accept data from the host computer. Because the printer cannot print any transactions, the data may be lost. -
Page 13: Testing The Printer
1.5 Testing the Printer Run this test to check the printer. The test prints and cuts a resident test ticket. Verify this ticket to judge the printing quality. Model: TRITON-1 Firmware: TRT-2.4 1 J-61AU COMMUNICATION Interface: Serial Baud: 19200 Data Bits: Parity: NONE Handshaking:... -
Page 14: Troubleshooting The Printer
1.6 Troubleshooting the Printer The printer is simple and generally trouble-free, but from time to time problems may occur. Follow these procedures to determine the cause and resolution of any problems the printer may be having. If the procedures in this section do not correct the problem, contact a service representative. -
Page 15: Printer Does Not Work
We recommend the following paper grade produced by Appleton and Kanzaki Specialty Papers. There are a number of paper converters qualified to supply this paper, provided the stacks are from these recommended grades. Manufacturer Numbers Nanoptix part no Paper Grade 100505-3024 (200 stack) 100505-3025 (400 stack) Appleton Papers Tel:920-991-8438 Royale 700-4.5... -
Page 18: Ordering Miscellaneous Supplies
2.3 Ordering Miscellaneous Supplies Power Supply and Power Cord Contact your sales representative to order the power supply listed in the table. Part Part Number Power Supply (24VDC, 2.5A max., 60W) 100600-0001 Power cord (North American) 102080-0013 Power cord (continental Europe) 102080-0014 Table 6: Part Numbers Ordering Communication Cables... -
Page 19: Front Molex (For Bezel)
The tables below detail the connection pin-out for the front Bezel Connector (3-pin Molex). Signal Printer I/O Bezel PWM Output 24VDC Output Table 9: Pinout and signals of Front Molex (for Bezel) -
Page 20: Appendix A: Mechanical Drawings
APPENDIX A: Mechanical Drawings Side View (Max screw protrusion inside printer: 6mm) Bottom View... -
Page 21: Figure 7: Mechanical Dimensions
Front View Top View Figure 7: Mechanical Dimensions...
