SPT WA-1351DE Instruction Manual
  1. Manuals
  2. Brands
  3. SPT Manuals
  4. Air Conditioner
  5. WA-1351DE
  6. Instruction manual

SPT WA-1351DE Instruction Manual

12,000btu dual-hose system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

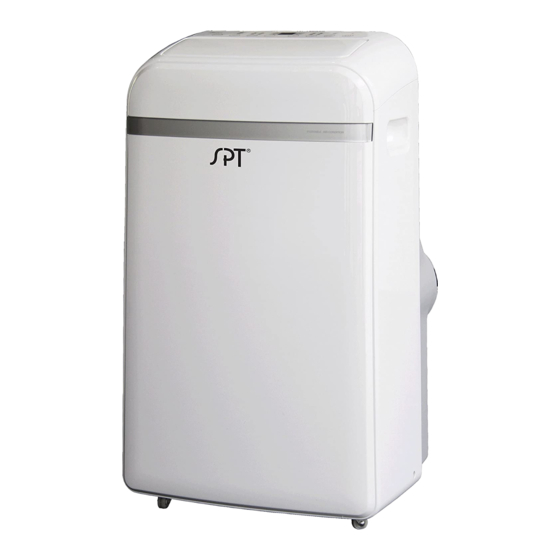

WA-1351DE: 12,000BTU DUAL-HOSE SYSTEM
INSTRUCTIONS MANUAL
Thank you for purchasing this Portable Air Conditioner.
Before using the unit, please read this instruction manual carefully and keep it for future reference.
READ AND SAVE THESE INSTRUCTIONS!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA-1351DE and is the answer not in the manual?

Questions and answers

Related Manuals for SPT WA-1351DE

Summary of Contents for SPT WA-1351DE

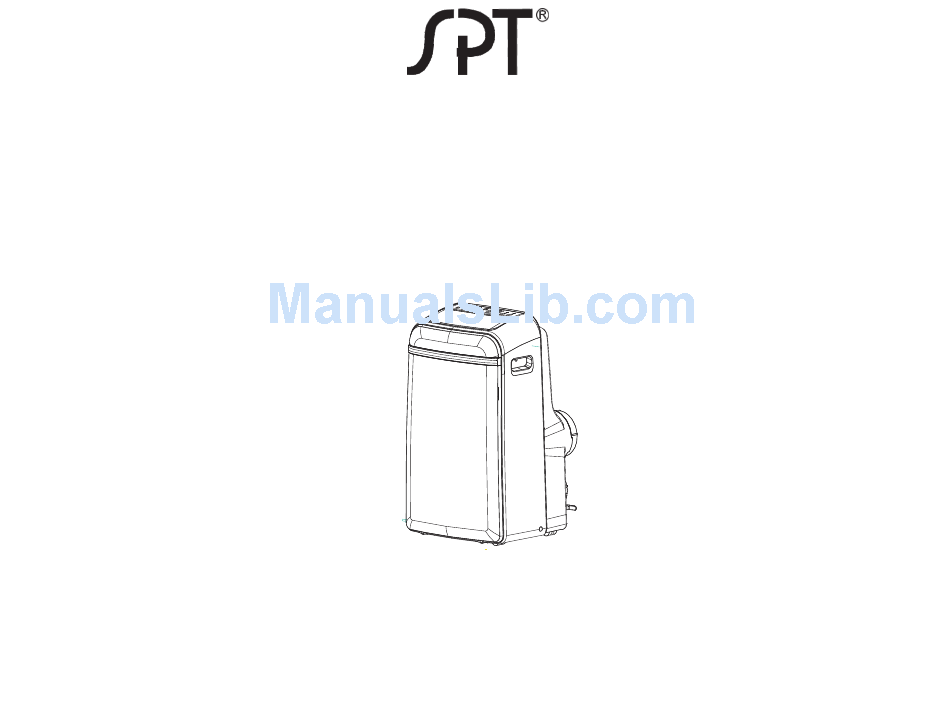

  • Page 1 WA-1351DE: 12,000BTU DUAL-HOSE SYSTEM INSTRUCTIONS MANUAL Thank you for purchasing this Portable Air Conditioner. Before using the unit, please read this instruction manual carefully and keep it for future reference. READ AND SAVE THESE INSTRUCTIONS!

  • Page 2: Table Of Contents

    Contents P r e p a r a t i o n - - - - - - - - - - - - - - - - - - - - - - - - - - - - S a f e t y P r e c a u t i o n s - - - - - - - - - - - - - - - - - - - - - C a u t i o n s - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - I n s t a l l a t i o n - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...

  • Page 3: Preparation

    Preparation control panel horizontal louver blade upper air lter (swing automatically) (behind the grille) handle (both sides) upper air intake drain outlet air outlet lower air lter lower air intake power cord outlet power cord buckle Caster power plug socket vent control bottom tray drain outlet...

  • Page 4: Safety Precautions

    Safety Precautions • DO NOT operate an unit that has been dropped or damaged. Please read through these instructions before you start the • Only use the included accessories and specied parts for installation process. Improper installation can cause damage installation.

  • Page 5: Cautions

    Cautions • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play the appliance. Cleaning and user maintenance shall not be made by children without supervision.

  • Page 6: Installation

    Installation Note About Fluorinated Gasses Choosing The Right Location -This air-conditioning unit is a hermetically sealed unit that contains fluorinated gasses. For specic information on the type of gas and the amount, please refer to the relevant label on the unit itself. -Service, maintenance and repair of this unit must be performed by a certied technician.
  • Page 7 Installation Window Installation Kit Tools Needed -Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors; Step One: Preparing the Exhaust Hose Assemblies -Saw (optional, to shorten window adaptor for narrow windows) Press window slider adaptor and unit adaptor onto the Accessories exhaust hose.
  • Page 8 Installation Note: Once the exhaust hose assembly and adjustable slider kit are prepared, choose from one of the following installation methods. Installation for double-hung window Foam seal B Foam seal C (Adhesive type-shorter) (Non-adhesive type) Security Bracket Window slider B Window slider A (if required) Foam seal A...
  • Page 9 Installation Through-the wall connection Note: It is necessary to purchase the following parts Cover the hole using the adaptor cap when not in use. for through-the-wall installation: IMPORTANT: Wall Adaptor DO NOT OVER BEND THE EXHAUST HOSE (sold separately, please contact Sunpentown at 1-800-330-0388 or visit The exhaust hose can be compressed or extended www.sunpentown.com)

  • Page 10: Operation

    Operation CONTROL PANEL Before you begin, thoroughly familiarize yourself with the control panel and remote controller and all its functions, then follow the symbol for the functions you desire. The unit can be controlled by the unit’s control panel or with the remote controller. Mode button Swing button Fan button...
  • Page 11 Operation LED display FAN operation Displays set temperature, in either °C or °F. - Press the MODE button until FAN indicator illuminates. Displays auto-timer settings (if any) - Press the FAN button to select desired fan speed. When unit is in DRY or FAN modes, displays current - The temperature cannot be adjusted.
  • Page 12 Operation Other features TIMER function Auto-Restart When the unit is operating: If the unit breaks off unexpectedly due to power cut, it will - Press the TIMER button to program auto-stop, the restart at previous function when power resumes. TIMER OFF indicator will illuminate. Press the + or - buttons to set the time for unit to turn off.

  • Page 13: M A I N T E N A N C

    Operation Maintenance Continuous Drainage for DRY mode (optional) Safety Precautions - Remove the upper drain plug - Always unplug the unit before cleaning or servicing. from back of unit. - DO NOT use ammable liquids or chemicals. - Connect drain hose to spout. - DO NOT wash the unit under running water.

  • Page 14: D E S I G N A N D C O M P L I A N C E N O T E

    Maintenance Design and Compliance Notes Design Notice STORAGE In order to ensure the optimal performance of our products, the design specications - Drain the unit’s water collection tray according to of the unit and remote control are subject to change without prior notice. instructions in the previous section.

  • Page 15: S O C I A B L E R E M A R

    Sociable Remark Problem ossible CauP se Troubleshooting The Water Collection Tray is full. Turn off the unit, drain the water P1 Error Code from the Water Collection Tray Do not dispose this product as unsorted Unit does not turn and restart the unit. municipal waste.

  • Page 16: Using The Remote Controller

    USING THE REMOTE CONTROLLER NOTE:  Buttons design is based on typical model and might be slightly different from the actual one you purchased, the actual shape shall prevail. Remote Contr oller Specifica tions  All the functions described are accomplished by the unit, if the unit is not equipped with a certain feature, there will be no corresponding action.

  • Page 17: Function Buttons

    Function Buttons Before you begin using your new air conditioner, make sure to familiarize yourself with the remote control. The following is a brief introduction to the remote control. For detailed instructions on operation of the air conditioner, refer to the Instruction Manual. SHORT CUT ON/OFF Sets and activates your...
  • Page 18 Handling the Remote Controller NOT SURE WHAT A FUNCTION DOES? Refer to the Operation Instructions section of this manual for a detailed description on how to use your air conditioner. SPECIAL NOTE Button designs on your unit may differ slightly from the example shown.
  • Page 19 Remote L CD Scr een Indicators Transmission Indicator Lights up when remote sends signal to unit MODE display ON/OFF display Displays the current Appears when the unit is tur ned on, mode, including: and disappears when it is turned off AUTO TIMER OFF display TIMER ON display...
  • Page 20 How To Use The Basic Functions The operating temperature range for the unit is 17°C-30°C (62°F-86°F). You can increase or decrease the set temperature in 1°C(1°F) increments ON/OFF SHORT TIMER MODE TEMP TIMER ON/OFF SHORT TIMER MODE SLEEP SWING TEMP TIMER SLEEP SWING...
  • Page 21 How To Use The Basic Functions ON/OFF SHORT ON/OFF SHORT TIMER MODE TIMER MODE TEMP TEMP TIMER TIMER SLEEP SWING SLEEP SWING DRY OPERATION FAN OPERATION 1. Press the MODE button to select DRY 1. Press the MODE button to select FANmode. mode.
  • Page 22 How To Use The Basic Functions SETTING THE TIMER FUNCTION Your air conditioning unit has two timer-related functions: TIMER ON: Set the amount of time after which the unit will automatically turn on. TIMER OFF: Set the amount of time after which the unit will automatically turn off. TIMER ON function: Sets amount of time for unit to turn on, such as when you will return home.
  • Page 23 Setting combined timers: TIMER ON and TIMER OFF at the same Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM (which is 6 hours from current time); operate for 2 hours, then automatically turn off at 9:00 PM (which is 8 hours from current time).
  • Page 24 Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off (see the figure below). Your remote display Timer on Timer is set To turn ON 6 hours from current time Timer off Timer is set to turn OFF 8 hours from current time Unit turns Unit turns...
  • Page 25 How To Use The Advanced Functions SLEEP Function The SLEEP function is used to conserve energy while you sleep. When activated, unit will increase set temperature by 1°C/1°F after 30 minutes; and by another 1°C/1°F after additional 30 minutes. New temperature will be maintained for 7 hours then unit returns to originally set temperature.
  • Page 26 Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: ·...
