Console Port Pinout Assignments

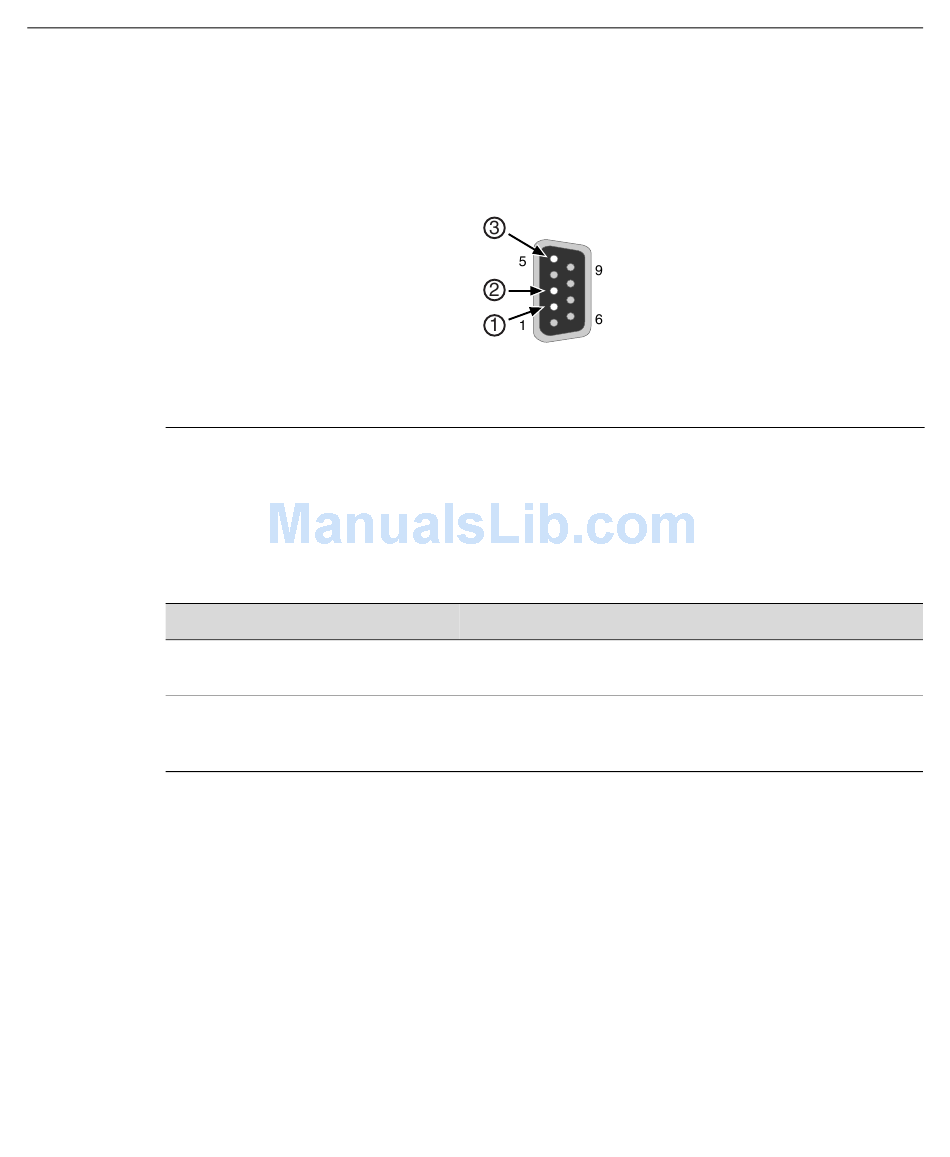

The Console port is a DB9 serial communications port for local access to Local
Management. Refer to Figure A‐1 for the Console port pin assignments.
Figure A-1
1 Pin 2, Received Data (input)
2 Pin 3, Transmitted Data (output)

Regulatory Compliance

The A2H254‐16 meets the safety and electromagnetic compatibility (EMC) requirements
listed in Table A‐12:
Table A-12 Compliance Standards
Regulatory Compliance
Safety
Electromagnetic Compatibility (EMI)
(Class A)

Console Port Pinout Assignments

3 Pin 5, Signal Ground
All other pins not connected.
Standards
UL 60950, CSA 60950, EN 60950, EN 60825, IEC 60950,
EN 60825, 21 CFR 1040.10
47 CFR Parts 2 and 15, CSA C108.8, EN 55022,
EN 55024, EN 61000-3-2, EN 61000-3-3, AS/NZS
CISPR 22, VCCI V-3
Console Port Pinout Assignments
