Using LANVIEW

Using LANVIEW
The A2H254‐16 supports the Enterasys Networks built‐in LANVIEW LED visual
diagnostic and status monitoring system. The LANVIEW LEDs on the A2H254‐16 are
located as shown in Figure 4‐1. These LEDs allow you to quickly observe network status
for diagnosing switch and network problems.

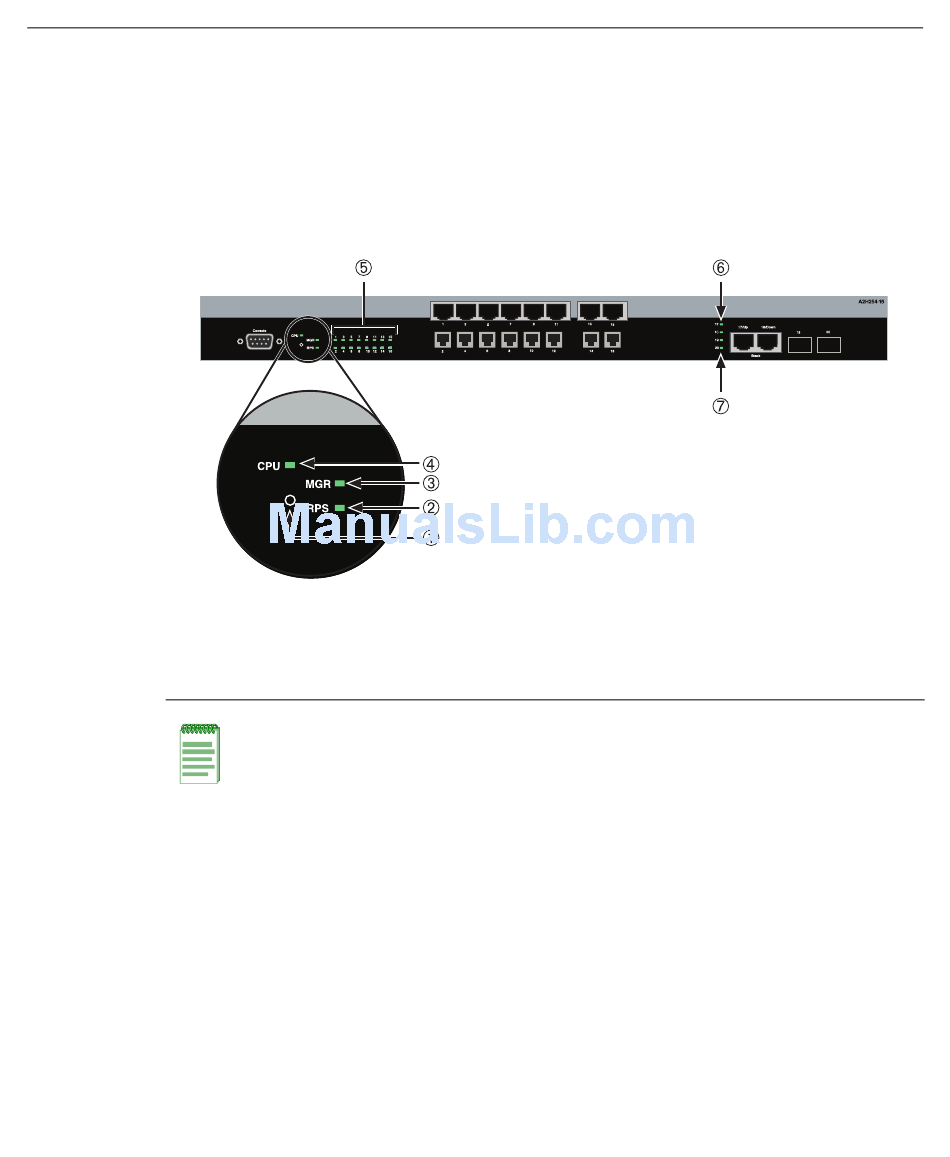

Figure 4-1
1 Recessed Password Reset Button
2 Redundant Power Supply Active
3 Unit selected as Stack Manager
4 CPU and Power Indicator
4-2 Troubleshooting

LANVIEW LEDs of A2H254-16

Note: The terms flashing, blinking, and solid used in
Flashing: LED is flashing randomly.
Blinking: LED is flashing at a steady rate (approximately 50% on, 50% off).
Solid: LED is on steady and not pulsing.
5 Link/Activity for Ethernet Ports 1-16
6 1000 Mbps Stacking Port Link/Activity
7 MGBIC Link/Activity
Table 4-1 indicate the following:
