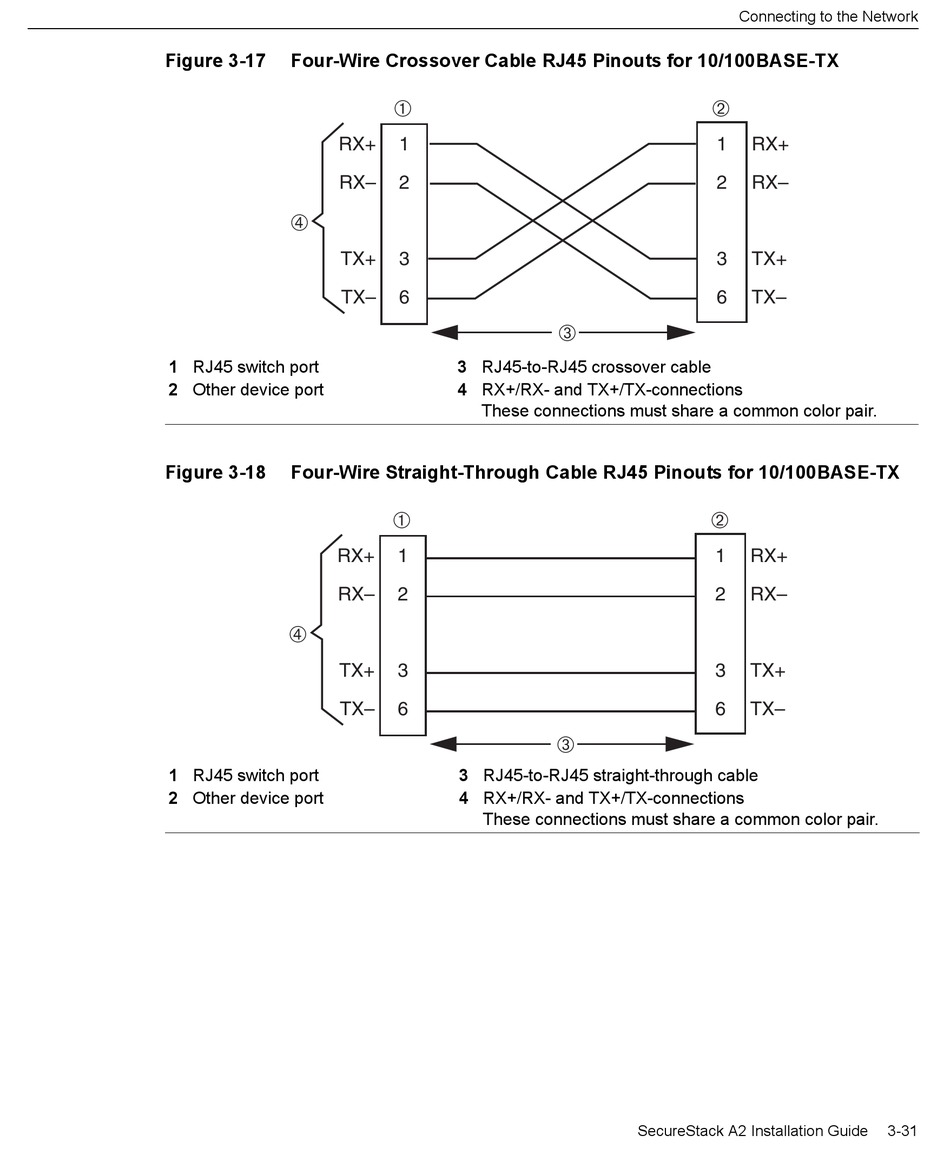

Figure 3-17
Four-Wire Crossover Cable RJ45 Pinouts for 10/100BASE-TX
Ã
1 RJ45 switch port
2 Other device port
Figure 3-18
Four-Wire Straight-Through Cable RJ45 Pinouts for 10/100BASE-TX
Ã
1 RJ45 switch port
2 Other device port
À
Â
3 RJ45-to-RJ45 crossover cable
4 RX+/RX- and TX+/TX-connections
These connections must share a common color pair.
À
Â
3 RJ45-to-RJ45 straight-through cable
4 RX+/RX- and TX+/TX-connections
These connections must share a common color pair.
Connecting to the Network
Á
Á
SecureStack A2 Installation Guide
3-31
