Installing the Switch on a Flat Surface

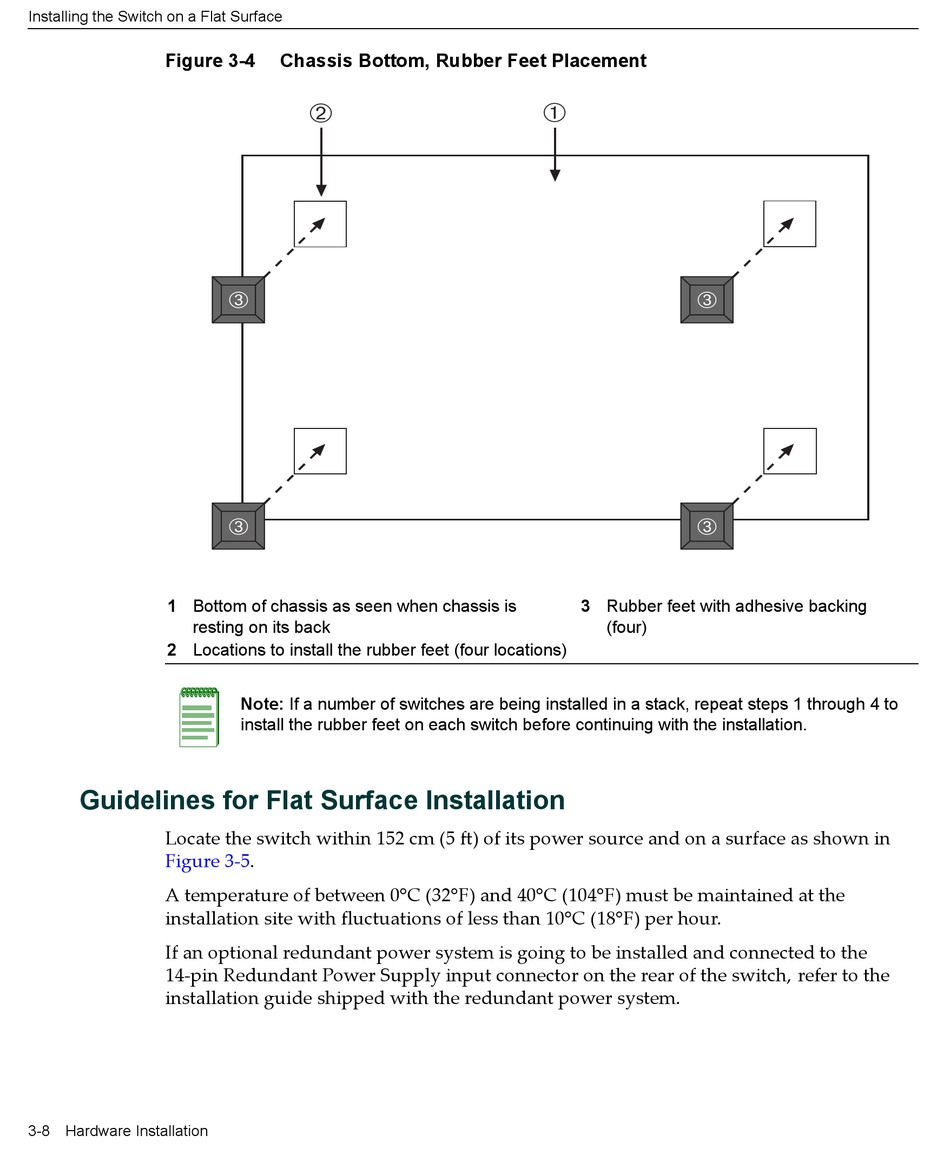

Figure 3-4
1 Bottom of chassis as seen when chassis is
resting on its back
2 Locations to install the rubber feet (four locations)

Guidelines for Flat Surface Installation

Locate the switch within 152 cm (5 ft) of its power source and on a surface as shown in
Figure 3‐5.
A temperature of between 0°C (32°F) and 40°C (104°F) must be maintained at the
installation site with fluctuations of less than 10°C (18°F) per hour.
If an optional redundant power system is going to be installed and connected to the
14‐pin Redundant Power Supply input connector on the rear of the switch, refer to the
installation guide shipped with the redundant power system.
3-8 Hardware Installation

Chassis Bottom, Rubber Feet Placement

Á
Â
Â
Note: If a number of switches are being installed in a stack, repeat steps 1 through 4 to
install the rubber feet on each switch before continuing with the installation.
À
Â
Â
3 Rubber feet with adhesive backing
(four)
