Connecting to the Network

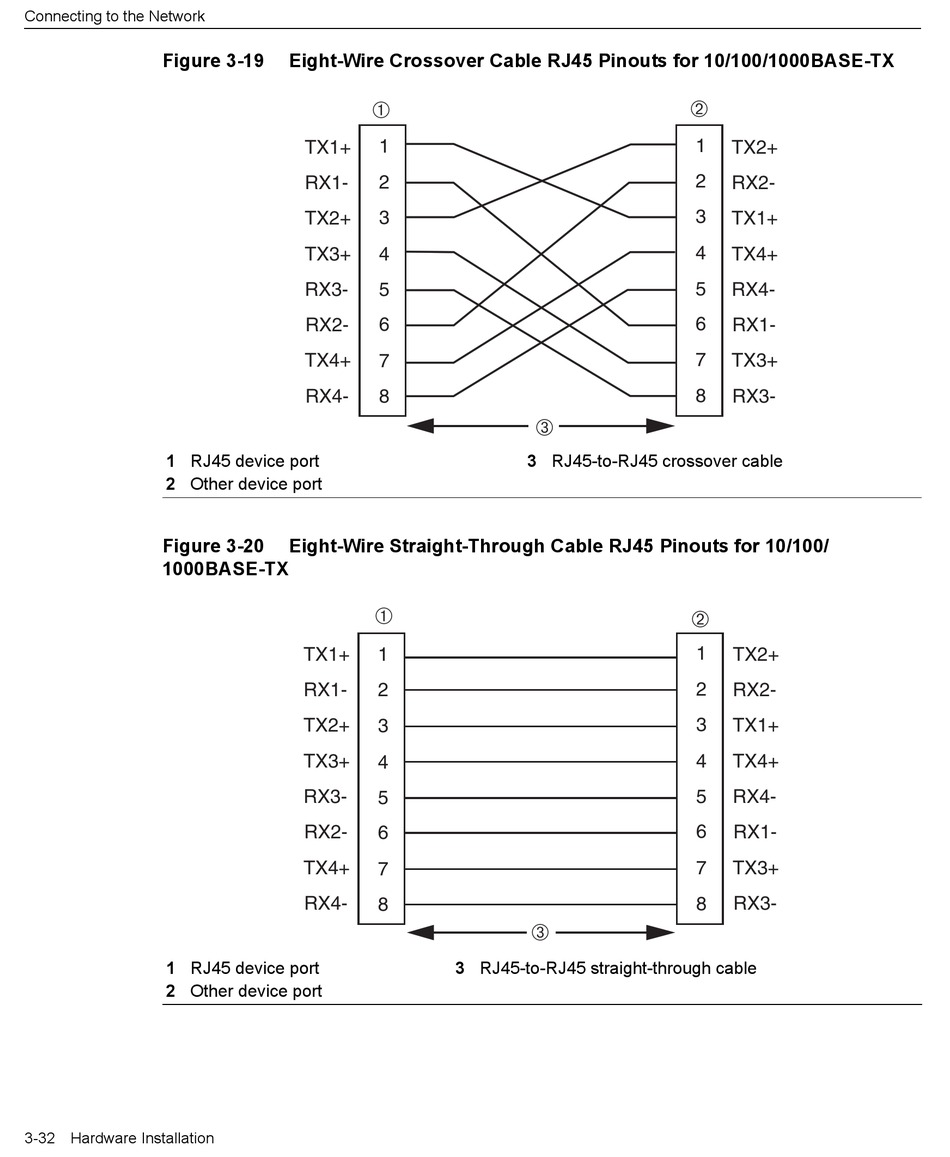

Figure 3-19
1 RJ45 device port
2 Other device port
Figure 3-20
1000BASE-TX
1 RJ45 device port
2 Other device port
3-32 Hardware Installation
Eight-Wire Crossover Cable RJ45 Pinouts for 10/100/1000BASE-TX
À
Eight-Wire Straight-Through Cable RJ45 Pinouts for 10/100/
À
3 RJ45-to-RJ45 straight-through cable
Á
Â
3 RJ45-to-RJ45 crossover cable
Á
Â
