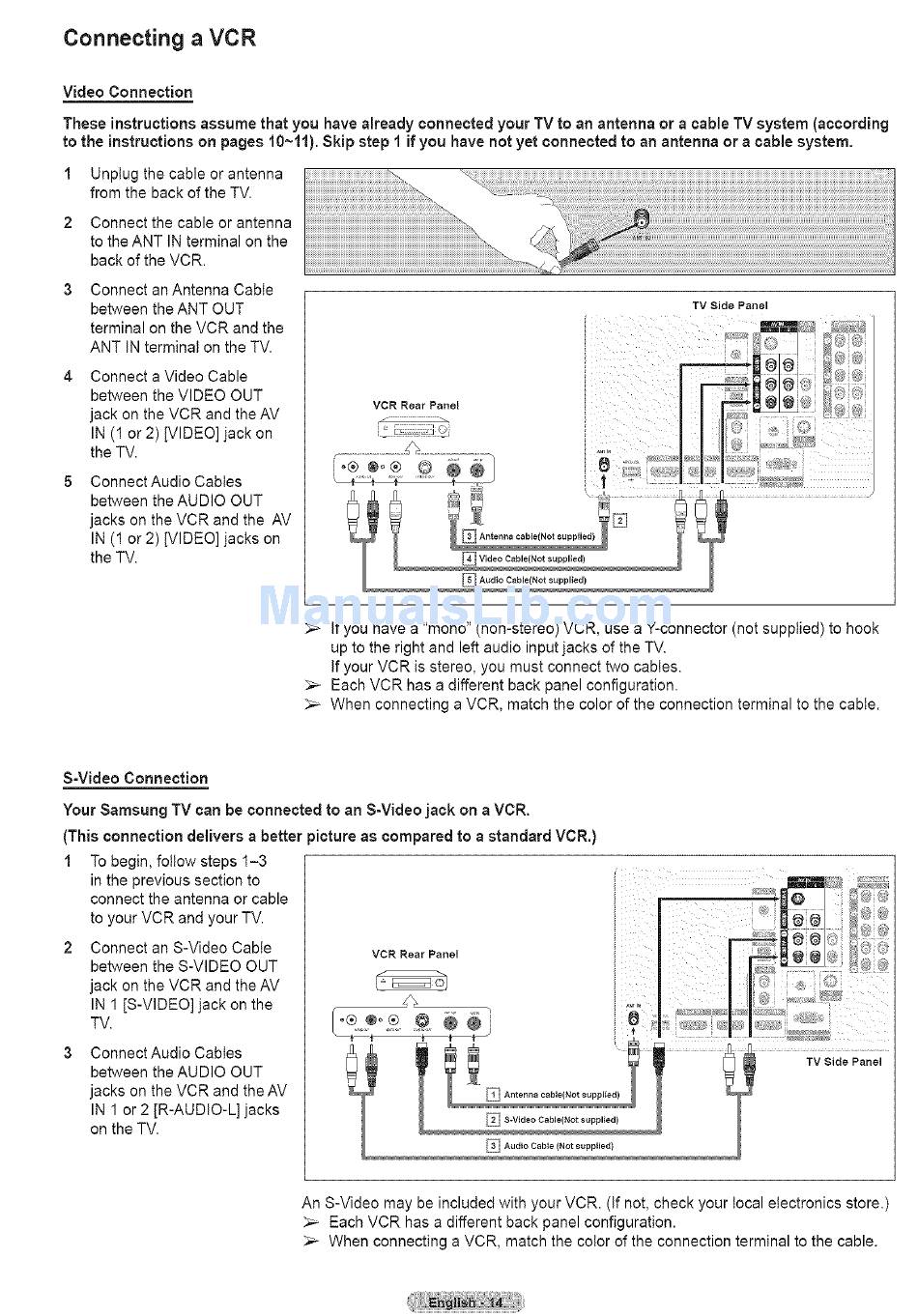

Connecting a VCR
Video Connection
These instructions assume that you have already connected your TV to an antenna or a cable TV system (according
to the instructions on pages 10~11). Skip step 1 if you have not yet connected to an antenna or a cable system.
1
Unplug the cable or antenna
from the back of the TV.
2
Connect the cable or antenna
to the ANT IN terminal on the
back of the VCR.
Connect an Antenna Cable
between the ANT OUT
terminal on the VCR and the
ANT iN terminal on the TV.
Connect a Video Cable
between the VIDEO OUT
jack on the VCR and the AV
IN (1 or 2) [VIDEO] jack on
the TV.
Connect Audio Cables
between the AUDIO OUT
jacks on the VCR and the AV
IN (1 or 2) [VIDEO] jacks on
the TV.
TV Side Panel
if you have a "mono" (non-stereo)
VCR, use a Y-connector
(not supplied) to hook
up to the right and left audio input jacks of the TV.
If your VCR is stereo, you must connect two cables.
Each VCR has a different back panel configuration.
When connecting
a VCR, match the color of the connection terminal to the cable.
S-Video Connection
Your Samsung TV can be connected to an S-Video jack on a VCR.
(This connection delivers a better
_icture as compared to a standard
VCR.)
1
To begin, follow steps 1-3
in the previous section to
connect the antenna or cable
to your VCR and your TV.
2
Connect an S-Video Cable
between the S-VIDEO OUT
jack on the VCR and the AV
IN 1 IS-VIDEO] jack on the
TV.
3
ConnectAudio
Cables
between the AUDIO OUT
jacks on the VCR and theAV
IN 1 or 2 [R-AUDIO-L] jacks
on the TV.
An S-Video may be included with your VCR. (if not, check your local electronics
store.)
Each VCR has a different back panel configuration.
When connecting
a VCR, match the color of the connection
terminal to the cable.
