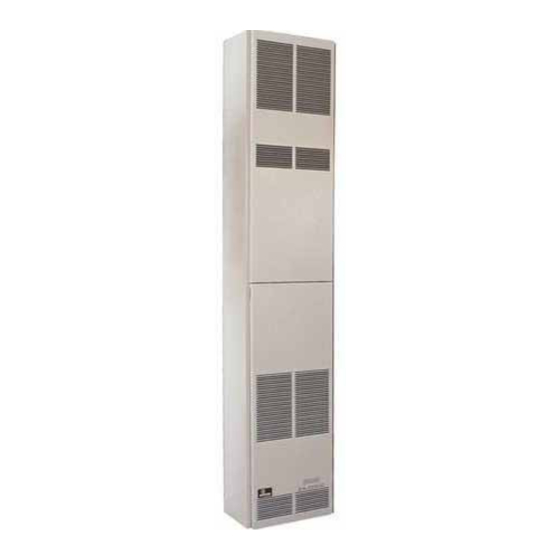

Empire Heating Systems FAW-55SPP Installation Instructions And Owner's Manual

Fan type vented wall furnace
Hide thumbs Also See for FAW-55SPP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Installation Instructions & Owner's Manual
Installer: Leave these instructions with the consumer.
Consumer: Retain these instructions for future use.
WARNING: If not installed, operated and main-
tained in accordance with the manufacturer's
instructions, this product could expose you to
substances in fuel or from fuel combustion which
can cause death or serious illness.
Page 1

INSTALLATION INSTRUCTIONS

OWNER'S MANUAL
AND
FAN TYPE
VENTED
WALL FURNACE
MODEL
FAW-55SPP
EFFECTIVE DATE
JULY 2006
WARNING: If the information in this man-
ual is not followed exactly, a fire or explosion
may result causing property damage, per-
sonal injury or loss of life.
– Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
•Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
•If you cannot reach your gas supplier,
call the fire department
– Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
12428-3-0706

Advertisement

Table of Contents
loading

Related Manuals for Empire Heating Systems FAW-55SPP

Summary of Contents for Empire Heating Systems FAW-55SPP

  • Page 1: Installation Instructions

    FAN TYPE VENTED WALL FURNACE MODEL FAW-55SPP EFFECTIVE DATE JULY 2006 • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building.
  • Page 2 Immediately call a qualified service technician to inspect the heater and to replace any part of the control system and any gas control which has been under water. • This furnace must not be connected to a chimney flue serv- ing a separate soid-fuel burning appliance. FAW-55SPP 55,000 (16.1)

  • Page 3: Safety Information For Users Of Lp-Gas

    SAFETY INFORMATION FOR USERS OF LP-GAS Propane (LP-Gas) is a flammable gas which can cause fires and explosions. In its natural state, propane is odorless and colorless. You may not know all the following safety precau- tions which can protect both you and your family from an accident.
  • Page 4 2. The FAW-55 can be attached to the wall or recessed into the wall up to 4 inches (102mm) in depth. 3. The wall in which the furnace is recessed has (0) zero (0mm) clear- ance to the furnace sides and top.
  • Page 5 11½” (292mm) Locating Furnace On Wall The furnace is to be located on a wall. The furnace is 16 inches (406mm) in width and normal 16” (406mm) on center studs will not allow the furnace to be recessed into the wall unless a stud is repositioned.
  • Page 6 When attaching furnace to the wall remove that portion of baseboard and molding on the wall which is behind the furnace. Attach furnace to wall, at the outer casing top, with (2) toggle bolts provided and to floor, at the outer casing bottom, with (2) #10 x 1 1/2”...
  • Page 7 The cold vent pipe will have a delay in proper venting and cause the wall furnace to shut “OFF” by the vent safety switch. To prevent de- layed venting as well as condensation of flue products an insulated vent enclosure is recommended.
  • Page 8 3. The 24 volt system 4. Type of gas being used and that shown on the rating label. The Service Department at Empire Comfort Systems, Inc. may be contacted to assist in servicing furnace. Servicing the Pilot and Main Burners, Pilot Orifice, Thermocouple, and Main Burner Orifices: Disconnect the gas supply at the inlet to the...

  • Page 9: For Your Safety Read Before Lighting

    FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these instructions exactly.
  • Page 10 Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store. Shipments contingent upon strikes, fires and all causes beyond our control. Empire Comfort Systems, Inc. Nine Eighteen Freeburg Ave. Belleville, Illinois 62222-0529 12428-3-0706...
  • Page 11 Page 11 12428-3-0706...
  • Page 12 Type BW gas vent pipe is available for single story or multi-story installations, Type BW gas vent pie is to be used with the Listed base plate, ceiling plate spacers and fire stop spacers. Empire Comfort Systems, Inc. 918 Freeburg Ave. Belleville, IL 62220 PH: 618-233-7420 or 800-851-3153 FAX: 618-233-7097 or 800-443-8648 info@empirecomfort.com...

Table of Contents
