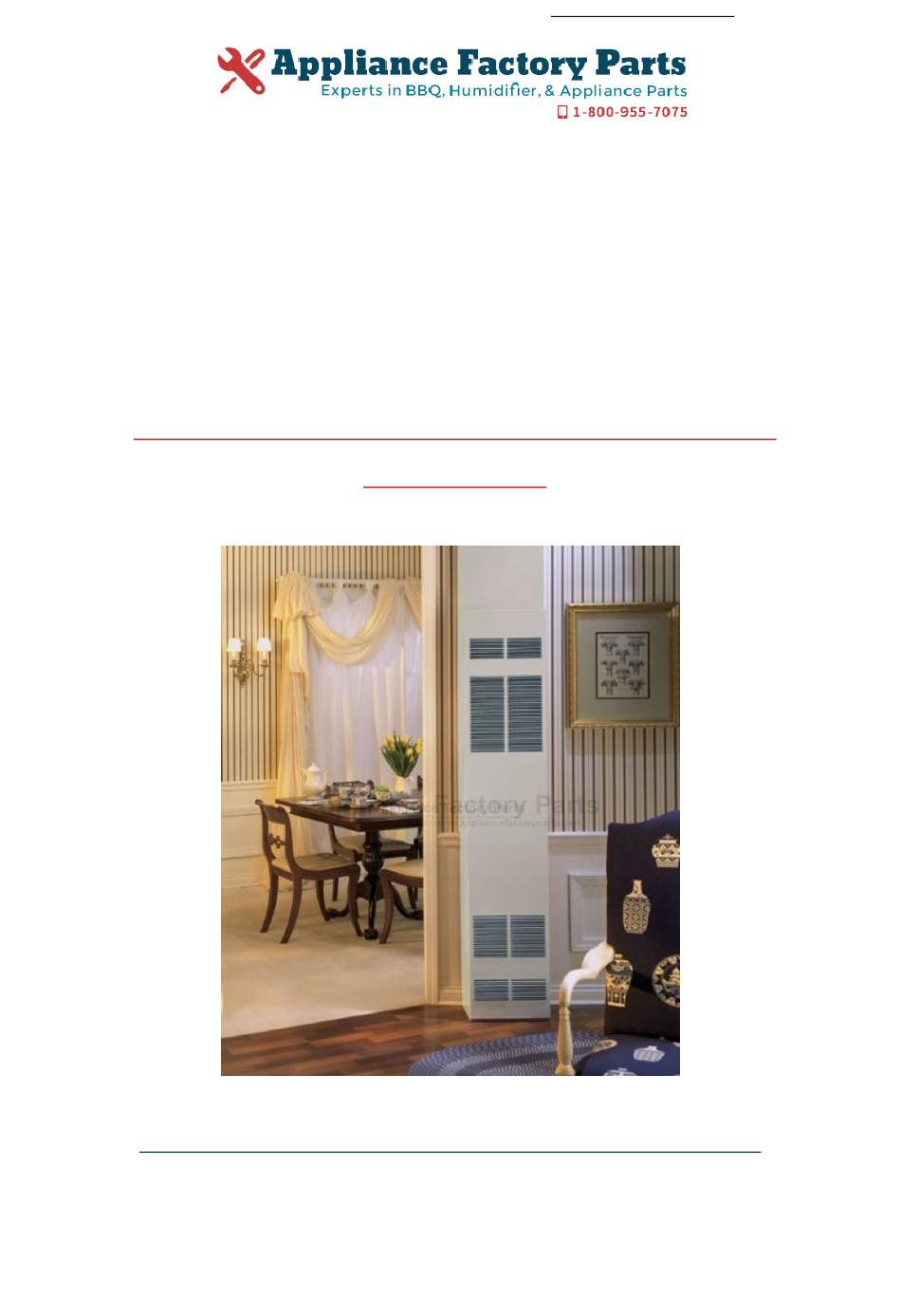

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. EMPIRE FAW-40-SPP Owner's Manual Shop genuine replacement parts for EMPIRE FAW-40-SPP Find Your EMPIRE HVAC Parts - Select From 82 Models -------- Manual continues below --------...
- Page 2 INSTALLATION INSTRUCTIONS OWNER'S MANUAL FAN TYPE VENTED WALL FURNACE MODEL FAW-40-1SPP FAW-40-1IP WARNING: If the information in these in- structions are not followed exactly, a fire or ex- plosion may result causing property damage, personal injury or loss of life. —...
- Page 3 Introduction Installation in Residential Garages Always consult your local Building Department regarding regulations, codes Gas utilization equipment in residential garages shall be installed so or ordinances which apply to the installation of a vented wall furnace. that all burners and burner ignition devices are located not less than 18" (457mm) above the floor.
- Page 4 SAFETY INFORMATION FOR USERS OF LP-GAS Propane (LP-Gas) is a flammable gas which can cause fires with the members of your household. Someday when there and explosions. In its natural state, propane is odorless and may not be a minute to lose, everyone's safety will depend on colorless.
- Page 5 Ventilation and Combustion Air WARNING: Danger of property damage, bodily injury or death, this furnace and any other fuel burning appliance must be provided with enough fresh air for proper combustion and ventilation of flue gases. Most homes will require that outside air be supplied. Do opening furnace not draw air from a corrosive environment such as a workshop or...
- Page 6 1. Type B-1 oval pipe or B-W vent pipe Qualified Installing Agency 2. Type B-1 oval elbows or B-W oval elbows Installation and replacement of gas piping, gas utilization equipment or 3. Single story type B-1 or (B-W) gas vents require a baseplate and accessories and repair and servicing of equipment shall be performed only by a qualified agency.
- Page 7 (38mm) provided screws. 5. Attach outer boot to the cabinet side with (4) #8 x 1/4" (6mm) provided screws. 6. Position and attach inner boot to inner shield with (4) #8 x 1/4" (6mm) provided screws. 7. Place the register over the 6 3/4" (171mm) square opening with the louvers positioned for the desired discharge direction and mark the mounting holes using the register as a template.
- Page 8 5. Place 7/8" (22mm) strain relief bushing around the cord of the 3' 7. Attach 8" x 12" (203mm x 305mm)boot to outer casing back with (6) (914mm) plug assembly. Insert 7/8" (22mm) strain relief bushing into #8 x 3/8" (9mm) screws provided. the 7/8"...
- Page 9 Attention! If one of the above procedures results in pressures in excess them. Be sure there is no lint or foreign debris blocking the burner ports. of 1/2 psig (14" w.c.) (3.5 kPa) on the appliance gas valve, it will result Reassemble using the same screws earlier removed and locate pilot in the in a hazardous condition.
- Page 10 #10 motor oil. To clean the motor, blow air through its ventilation openings To reset the manual reset vent safety switch: with a vacuum cleaner or low pressure air source. 1. Remove front panel. 2. Depress manual reset button. The manual reset vent safety switch is Wiring located on the draft diverter.
- Page 11 Pilot Flame Adjustment SERVICE AND MAINTENANCE SUGGESTIONS The pilot flame should envelop 3/8 to 1/2 inch (10 to 13mm) of the tip of CALL SERVICEMAN the flame rod. See Figure 10. GENERAL: All furnaces have been fire-tested to check for proper operation. To adjust: This includes, main burner flame, pilot flame, fan operation, fan control, 1.
-
Page 12: For Your Safety Read Before Lighting
STANDING PILOT MODEL FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by department. -
Page 13: For Your Safety Read Before Operating
INTERMITTENT PILOT (IP) MODEL FOR YOUR SAFETY READ BEFORE OPERATING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance is equipped with an ignition device which •... -
Page 14: Sequence Of Operation
SEQUENCE OF OPERATION Apply 24 VAC START To Appliance Thermostat Calls for Heat 5 Minute Retry Delay Pilot Valve Ignition OFF Flame Signal Wait for Flame Signal to Detected Disappear System Check Internal Check Trial for Pilot Valve Opens ... - Page 15 START IP SYSTEM TROUBLESHOOTING SEQUENCE Turn OFF Gas Supply INSET A End View Disconnect System Control SmartValve System Troubleshooting Sequence of Control Harness Note: Before Troubleshooting, Become Familiar Harness 24 Volt Connector Set Thermostat to Call for with the Sequence of Operation Thermostat Heat...
- Page 16 PLEASE NOTE: When ordering parts, it is very important that part number and description of part coincide. INDEX PART INDEX PART NUMBER DESCRIPTION NUMBER DESCRIPTION WFA-115 GASKET - HEADER R-3170 GAS VALVE - NAT (IP ONLY) DV-1247 TOP PLATE (USA) R-3171 GAS VALVE - LPG (IP ONLY) 15668...
- Page 17 Page 16 12427-7-1007...
-
Page 18: Service Notes
SERVICE NOTES 12427-7-1007 Page 17... - Page 19 SERVICE NOTES Page 18 12427-7-1007...
- Page 20 SERVICE NOTES 12427-7-1007 Page 19...
- Page 21 Empire Comfort Systems, Inc. 918 Freeburg Ave. Belleville, IL 62220 PH: 618-233-7420 or 800-851-3153 FAX: 618-233-7097 or 800-443-8648 info@empirecomfort.com www.empirecomfort.com Page 20 12427-7-1007...
