installer: leave this manual with the appli-
ance.
consumer: retain this manual for future refer-
ence.
WarninG: if the information in these instruc-
tions are not followed exactly, a fire or explosion
may result causing property damage, personal
injury or loss of life.
— Do not store or use gasoline or other flamma-
ble vapors and liquids in the vicinity of this or
any other appliance.
— WHat to Do iF You sMell Gas
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not
use any phone in your building.
•
Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppli-
er's instructions.
•
If you cannot reach your gas supplier, call
the fire department.
— installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
installation instructions
oWner's Manual
anD

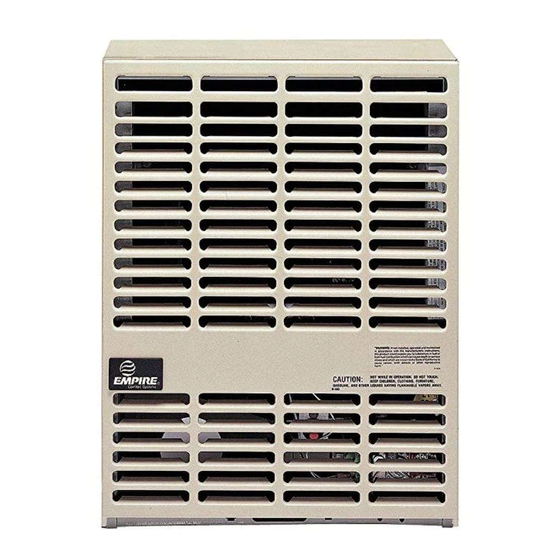

Direct Vent
Wall Furnace
MoDels
DV-210-sG
DV-215-sG
this appliance may be installed in an after-
market, permanently located, manufactured
home (usa only), or mobile home, where not
prohibited by state or local codes.
this appliance is only for use with the type of gas
indicated on the rating plate. this appliance is
not convertible for use with other gases, unless
a certified kit is used.
WarninG: if not installed, operated, and
maintained in accordance with the manufactur-
er's instructions, this product could expose you
to substances in fuel or from fuel combustion
which can cause death or serious illness.
Page 1
Advertisement
Table of Contents
Related Manuals for Empire Heating Systems DV-210-SG
Summary of Contents for Empire Heating Systems DV-210-SG
-
Page 1: Installation Instructions
Manual Direct Vent Wall Furnace MoDels DV-210-sG DV-215-sG installer: leave this manual with the appli- ance. consumer: retain this manual for future refer- ence. WarninG: if the information in these instruc- tions are not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. -
Page 2: Table Of Contents
taBle oF contents section PaGe Important Safety Information ........................3 Safety Information for Users of LP Gas ......................4 Requirements for Massachusetts ........................5 Introduction ..............................6 Specifications ...............................6 Gas Supply ..............................7 Clearances ..............................8 Installation Instructions ..........................8-9 Thermostat Location ..........................10 Lighting Instructions ..........................11 Pilot Flame Characteristics ........................12 Main Burner Flame Characteristics ......................12 Maintenance ...............................12... -
Page 3: Important Safety Information
iMPortant saFetY inForMation tHis is a HeatinG aPPliance Do not oPerate tHis aPPliance WitHout Front Panel installeD. • Due to high temperatures the appliance should be located • Do not put anything around the furnace that will obstruct out of traffic and away from furniture and draperies. the flow of combustion and ventilation air. -
Page 4: Safety Information For Users Of Lp Gas
saFetY inForMation For users oF lP-Gas Propane (LP-Gas) is a flammable gas which can cause fires with the members of your household. someday when there and explosions. in its natural state, propane is odorless and may not be a minute to lose, everyone's safety will depend on colorless. -
Page 5: Requirements For Massachusetts
requireMents For MassacHusetts For all side wall horizontally vented gas fueled equipment 3. SIGNAGE. A metal or plastic identification plate shall be installed in every dwelling, building or structure used in permanently mounted to the exterior of the building at a whole or in part for residential purposes, including those minimum height of eight (8) feet above grade directly in owned or operated by the Commonwealth and where the... -
Page 6: Introduction
introDuction introduction Qualified Installing Agency Always consult your local Building Department regarding Installation and replacement of gas piping, gas utilization equipment regulations, codes or ordinances which apply to the installation of or accessories and repair and servicing of equipment shall be a direct vent wall furnace. -
Page 7: Gas Supply
Gas suPPlY locating Gas supply Compounds used on threaded joints of gas piping shall be resistant to the The gas line can enter the unit either through the floor or outside wall. action of liquefied petroleum gases. The gas lines must be checked for The gas line opening should be made at this time. -
Page 8: Clearances
clearances 1. In selecting a location for installation, it is necessary to provide The vent terminal of a direct vent appliance, with an input of 10,000 adequate accessibility clearances for servicing and proper Btu per hour (3 kW) or less shall be located at least 6" (150mm) installation. -
Page 9: Installation Instructions
installation instructions (continued) 3" (76mm) diameter flue outlet tube. Attach vent cap to outside cutting Vent tubes wall plate with (3) #10 x 1/2" (13mm) screws provided. This is the most important part of the installation. With the furnace 5. Reassembly and resealing vent-air intake system is installed on wall the 5"... -
Page 10: Thermostat Location
tHerMostat location These heating thermostats are specially designed for use on self- generating systems. They should never be used on line or low voltage A.C. circuits. exterior Wall — The thermostat may be mounted on an exterior wall above the heater if it is located in the same stud space as the vent tubes and is a minimum of 6"... -
Page 11: Lighting Instructions
liGHtinG instructions FOR YOUR SAFETY READ BEFORE LIGHTING WarninG: If you do not follow these instructions exactly, a fire or explo- sion may result causing property damage, personal injury or loss of life. a. this appliance has a pilot which must be lighted by •... -
Page 12: Pilot Flame Characteristics
Pilot FlaMe cHaracteristics The pilot flame is blue and goes toward the main burner and thermopile horizontally. A slight yellow tip on the flame is normal. The pilot flame must surround and extend approximately 1/4" (6mm) beyond the thermopile, and must extend beyond the first M AI N BU R N ER row toward the second row of main burner ports. -
Page 13: Troubleshooting
trouBlesHootinG Lit match goes out as it enters lighter port. Check for defective or weak thermopile. Certain wind conditions will blow out match. Ignite Check input, reduce as needed. match, and as it flares, thrust match through opening. Cover on pilot lighter hole must be air tight. Open nearby door or window and relight pilot. -
Page 14: How To Order Repair Parts
HoW to orDer rePair Parts Parts can be ordered only through your service person or dealer. For best results, the service person or dealer should order parts through the distributor. Parts can be shipped directly to the service person/dealer. All parts listed in the Parts list have a Part number. When ordering parts, first obtain the Model number from the name plate on your equipment. -
Page 15: Parts View
Parts VieW 12433-10-0109 Page 15... -
Page 16: Optional Blower Installation Instructions
oPtional BloWer installation instructions DVB-1 For Direct Vent Wall Furnaces DV-210-(7, 9)SG and DV-215-(7, 9)SG Cleaning the Blower Wheel In some areas, such as near bedrooms and on floors with a hard surface, the blower wheel will be filled with lint very quickly. A visual check of the blower wheel should be made after 30 days use. -
Page 17: Service Notes
Empire Comfort Systems Inc. EMPIRE EMPIRE 918 Freeburg Ave. Belleville, IL 62220 If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. Comfort Systems www.empirecomfort.com Page 20 12433-10-0109...
