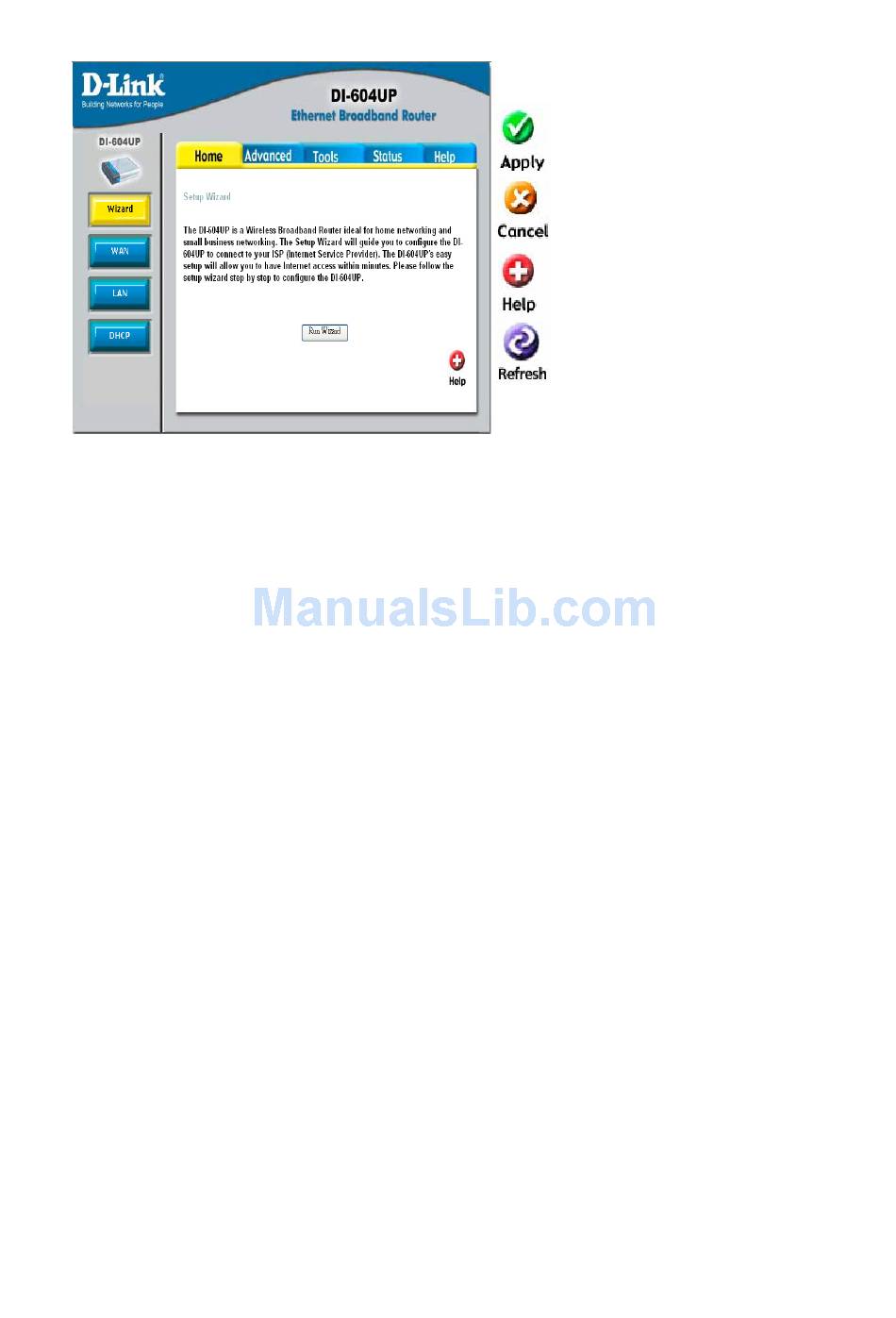

The Home > Wizard window will appear. Please refer to the Quick Installation
Guide for more information regarding the Setup Wizard.
These buttons appear on most of the configuration windows in this section. Please
click on the appropriate button at the bottom of each window after you have made a
configuration change.
Note: if you have changed the default IP Address assigned to the DI-604UP, make sure to enter the
correct IP Address.
Using the Configuration Menu
Setup Wizard
The Setup Wizard page is the first page that appears when logging into
the web-based management interface. The Setup Wizard is a utility used
to quickly configure the DI-604UP. It will guide you through four quick and
basic steps to help you connect to your ISP. You will be connected to your
ISP (Internet Service Provider) and have Internet access within minutes.
WAN
WAN is short for Wide Area Network. The WAN settings can be referred to
as the Public settings. All IP information in the WAN settings are public IP
addresses which are accessible on the Internet.
The WAN settings consist of three options: Dynamic IP Address, Static
IP Address, PPPoE and Others(PPTP,L2TP,BigPond Cable and Multi-PPPoE).
Select the appropriate option and fill in the information needed to connect to your
ISP.
Clicking Apply will save
configured settings to the
router.
Clicking Cancel will clear
changes
current page.
Clicking Help will provide
the user
information
current window.
Clicking
refresh the statistics of the
current window.
12
made to the
with helpful
about the
Refresh will
