L2TP Retype Password
Maximum Idle Time
MTU
Connect Mode

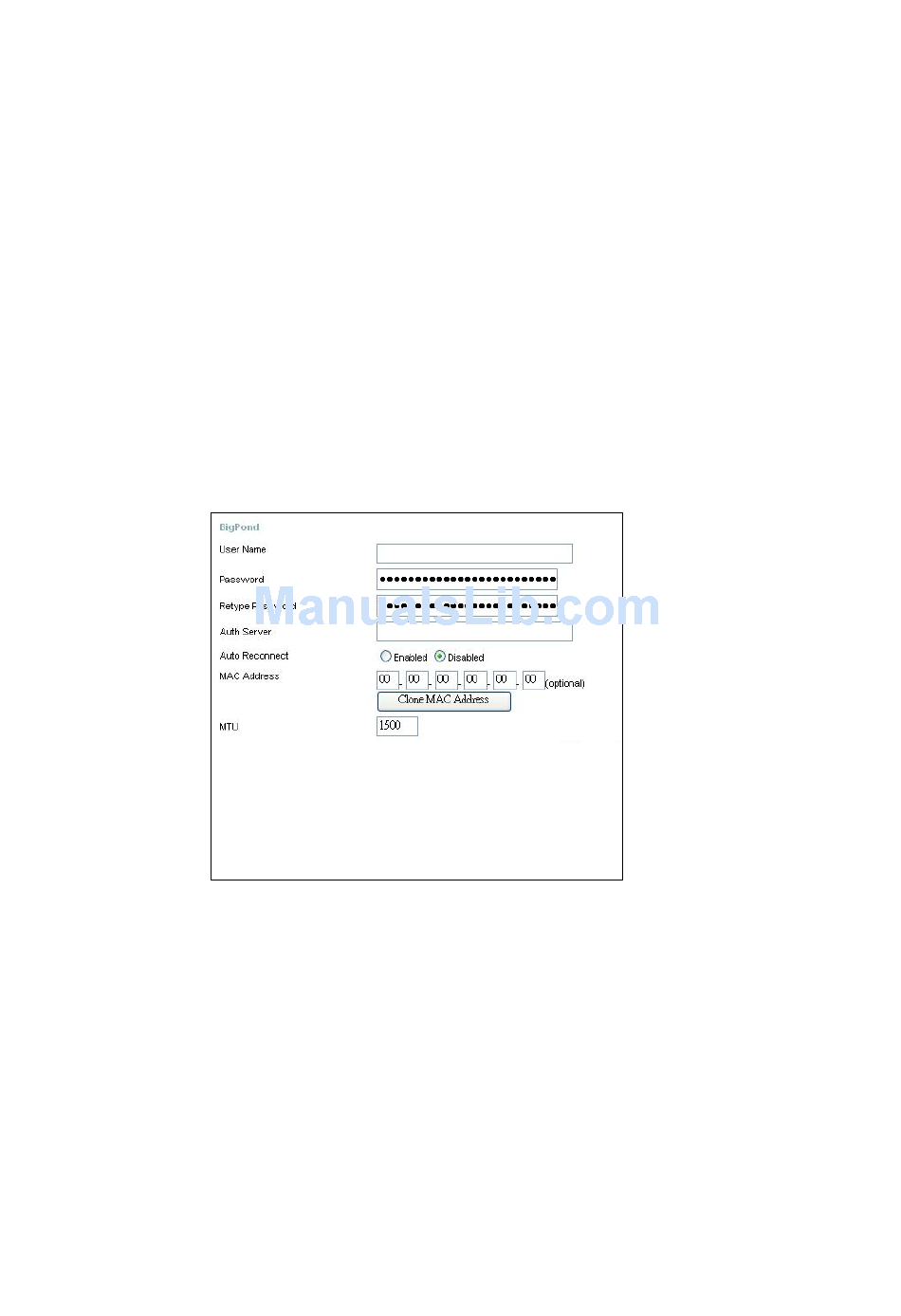

HOME > WAN > Other>BigPond Cable
This selection is for users having Big Pond Cable as their ISP. Enter the following information, as
provided to you by your ISP.
User Name
Password
Retype Password
Auth Server
Auto Reconnect
MAC Address
Clone MAC Address
Retype the password that was entered in the L2TP field. Ensure that
these two passwords are identical or an error will occur.
A value of 0 means the PPP connection will remain connected. If your
network account is billed according to the amount of time the Router
is actually connected to the Internet, enter an appropriate Idle Time
value (in seconds). This will disconnect the Router after the WAN
connection has been idle for the amount of time specified. The default
value = 5.
Enter an MTU value only if required by your ISP. Otherwise, leave it at
the default setting.
If Connect-on-demand is selected, will allow the router to connect any
workstation on your LAN to the Internet upon request. If Always-on, no
request from the workstation will be needed to connect to the Internet.
If Manual is selected, the workstation on the LAN must manually
connect to the Internet through this router.
Enter the user name as provided to you by your ISP.
Enter The PPPoE user name provided to you by your ISP.
Retype the password entered in the previous field.
Enter the name of the Authentication Server as provided to you by your
ISP. This is the computer that will accept your user name and password
to be authenticated on the network.
Checking the Enabled radio button will allow the router to reconnect to
the network automatically if it becomes disconnected.
The default MAC Address is set to the WAN's physical interface MAC
address on the Broadband Router. It is not recommended that you
change the default MAC address unless required by your ISP.
The default MAC address is set to the WAN's physical interface MAC
address on the Broadband Router. You can use the Clone MAC
