Hardware Description

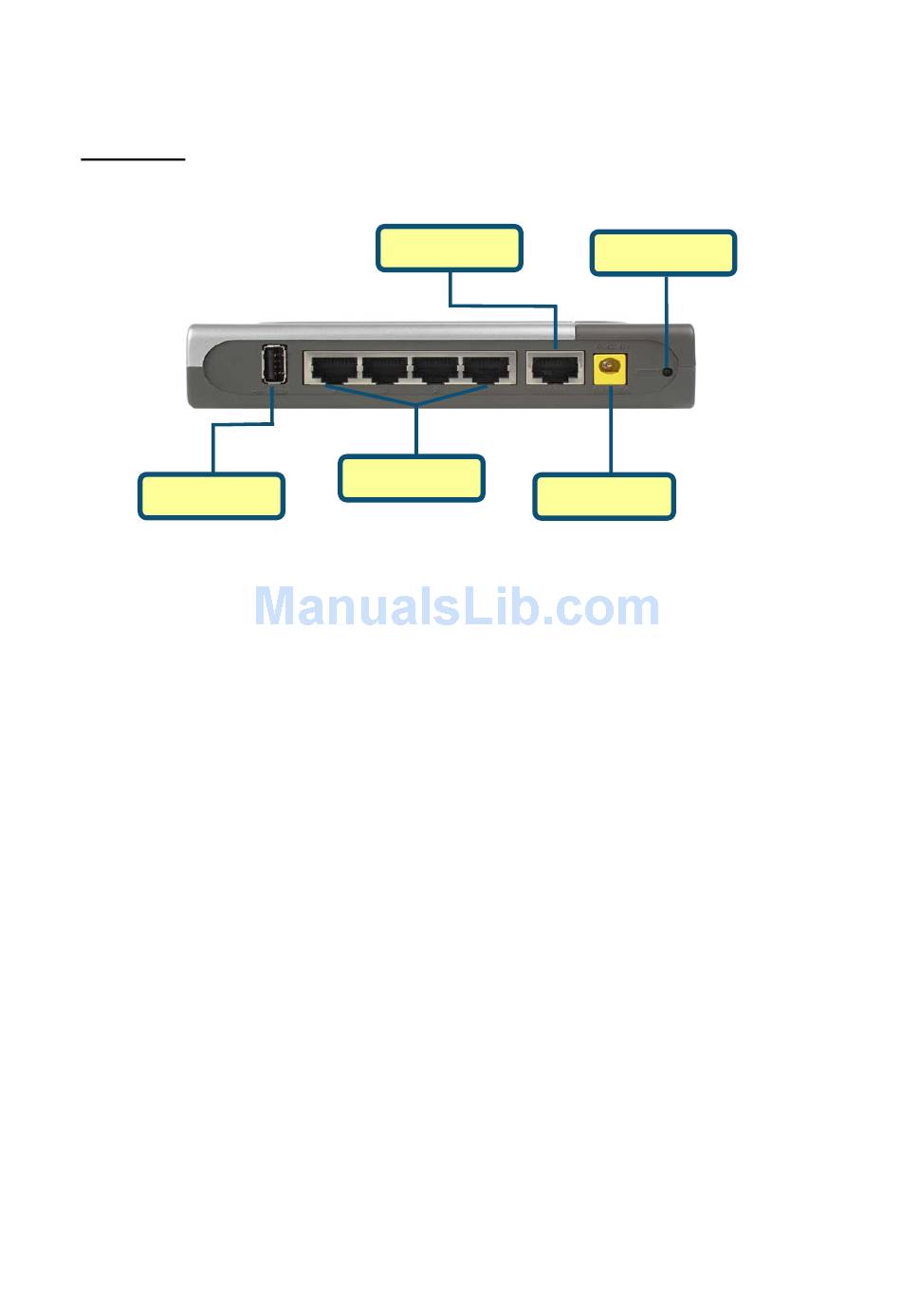

Rear Panel
USB Port

Reset

Used to restore the DI-604UP back to factory default settings.
LAN
LAN port sockets (CAT5 Ethernet RJ-45 cable) . The LED glows
PORTS*
steadily when a port is connected to a hub, switch or network
1-4
-adapter-equipped computer in your local area network
(LAN.)
WAN* WAN port socket (CAT5 Ethernet RJ-45 cable). This is where
you will connect your Cable or DSL modem.
USB Port Connect to the printer using a USB cable. This feature is used to
share the printer on the network.
Power Connect one end of your included power adapter to the power
port and the other end into your power outlet.
*All ports (both LAN & WAN) are Auto-MDIX. All ports auto-sense cable
types to accommodate Straight-through or Cross-over cable.
Reset
To reset the system settings to factory defaults, please follow these steps:
1. Leave the device powered on , do not disconnect the power
2. Press the reset button and hold (use a paper-clip)
3. Keep the button pressed about 5-6 seconds
4. Release the button
The DI-604UP will then automatically reboot itself.
