Status > Device Information - D-Link DI-604UP - Broadband Router Plus USB Print Server Product Manual

Refresh Click on Refresh to run the VCT test. Allow the router a few
seconds to complete the test.

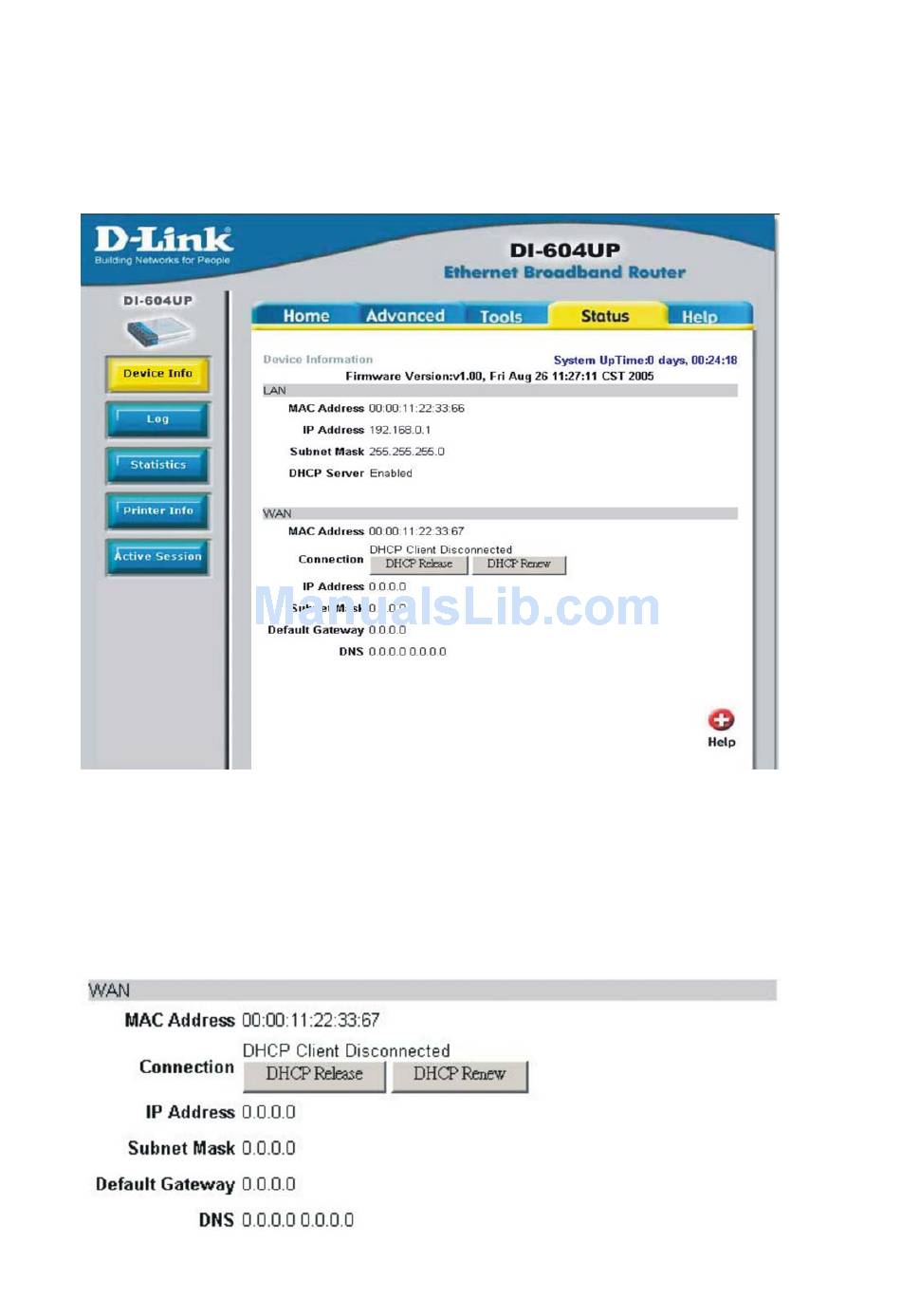

STATUS > DEVICE INFORMATION
This page displays the current information for the Broadband Router. It will
display the WAN, LAN, and MAC address information.
If your WAN connection is set up for Dynamic IP address, there will be a
Release button and Renew button. Use Release to disconnect from your
ISP and use Renew to connect to your ISP.
If your WAN connection is set up for PPPoE, there will be a Connect
button and Disconnect button. Use Disconnect to drop the PPPoE
connection and use Connect to establish the PPPoE connection.
45
