Remove the two 30-amp fuses prior to connecting these wires and do not re-
place them until the satellite has been plugged into the control module. These
wires are the source of current for pink ignition, orange accessory, purple starter,
and the coils for the relays in the relay pack. They must be connected to a high
current source. Since the factory supplies (+)12V to the key switch that is used to
operate the motor, it is recommended that these wires be connected there.
Note: If the factory supplies two separate (+) 12V feeds to the ignition switch,
connect one RED wire of the satellite to each feed at the switch.

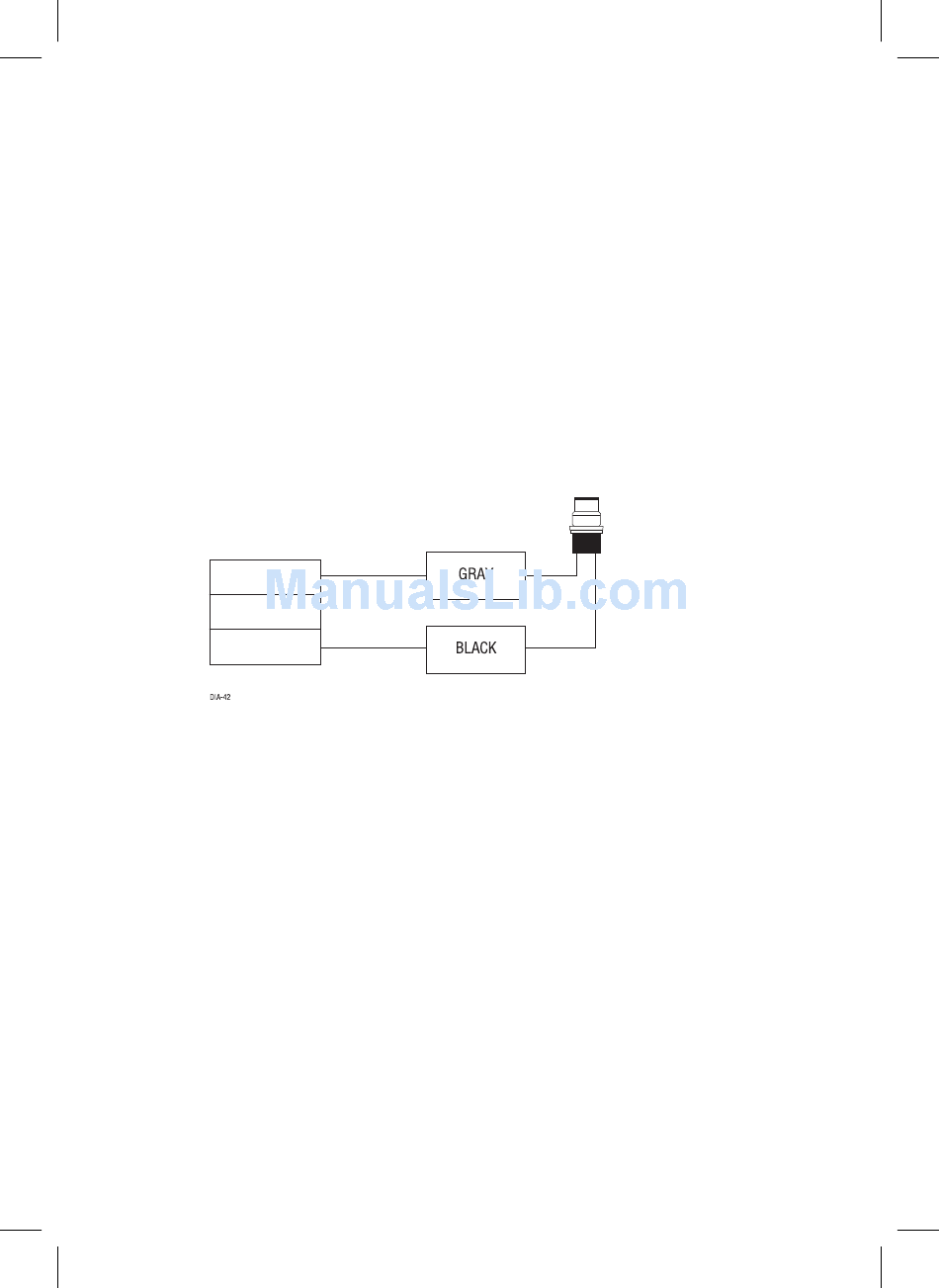

➤ Program switch - 2-pin connector
The program switch plugs into the blue two-pin connectors
