H1/8; H1/9; H1/10; H1/11 - Directed Electronics MERLIN 2000 Installation Manual

H1/8 YELLOW (+) ignition input
Connect this wire to an ignition wire as described in the Finding the Wires You Need section of this manual. This
wire must show (+)12V with the key in the run position and during cranking. Make sure that this wire cannot be
shorted to the chassis at any point.
H1/9 BROWN (-) siren output
The siren should be mounted away from excessive heat sources, such as the exhaust manifold. Connect the H1/9
wire to the brown wire of the siren. For the remaining siren connections, refer to the Making Siren Connections
section of this guide.

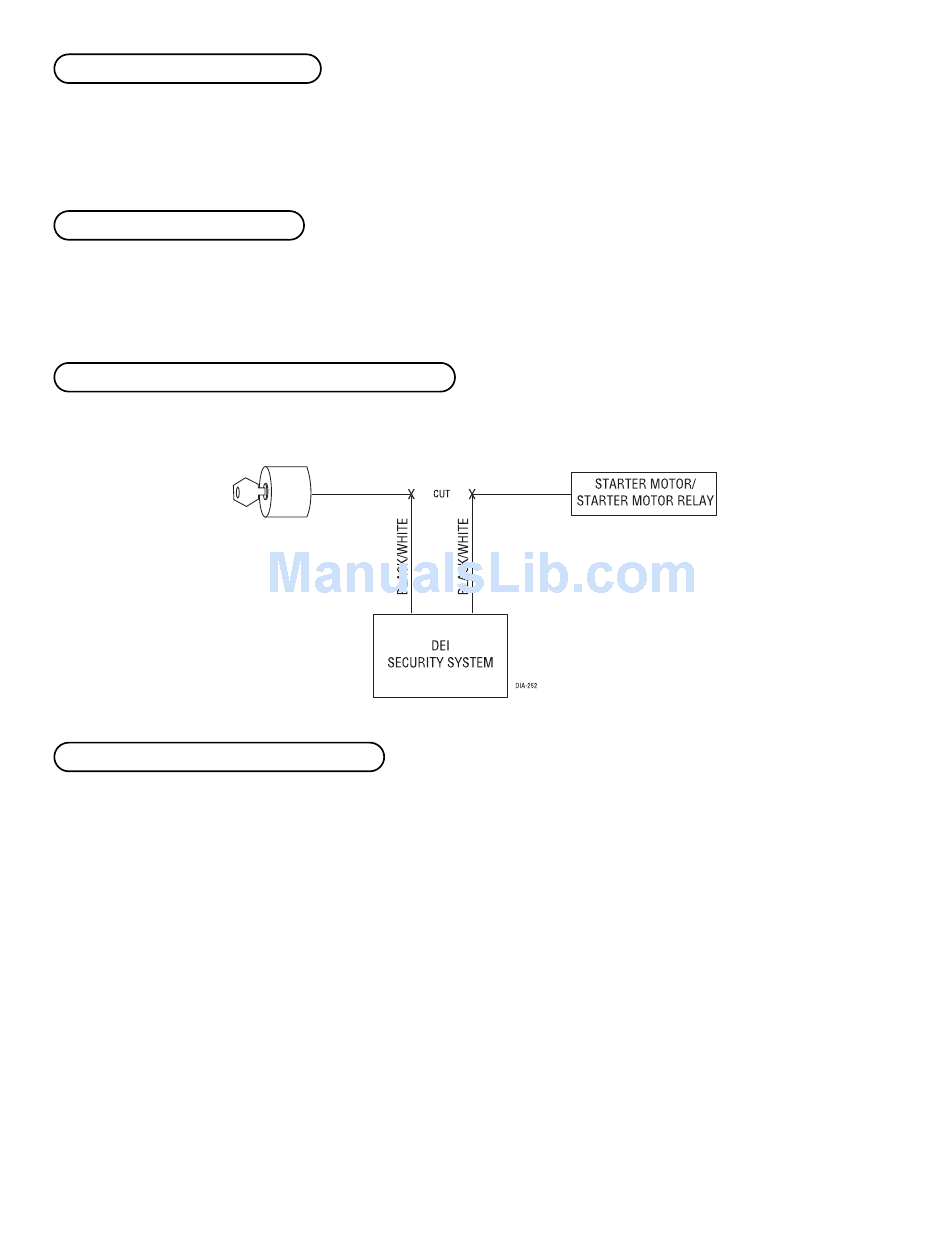

H1/10 and H1/13 BLACK/WHITE starter kill wires
Use one of these wires as a starter kill input and the other as a starter kill output (these wires are interchangeable).
H1/11 WHITE/BLUE (-) channel 3 output
This wire provides a (-) 200 mA output whenever the transmitter button(s) controlling Channel 3 is pressed. This
output can be programmed to provide the following types of outputs (see System Features Learn Routine section
of this guide):
I An instant validity output will send a signal immediately when the buttons controlling Channel 3 are
pressed. The signal will last as long as the transmission is received.
I A latched output will send a signal continuously when the Channel 3 transmitter button(s) is pressed and
will continue until the button(s) is pressed again.
I A latched/reset with ignition output works similar to the latched output, but will also reset (output will
stop) when the ignition is turned on then off.
I A 30-, 60- or 90-second timed output will send a signal for 30, 60, or 90 seconds, respectively, when the
Channel 3 transmitter button(s) is pressed.
IMPORTANT! Never use this wire to drive anything except a relay or a low-current input! This
transistorized output can only supply (-)200 mA, and connecting directly to a solenoid, motor, or
other high-current device will cause the module to fail.
