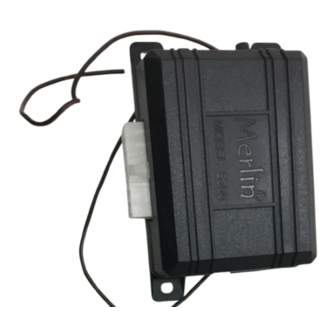

Model 2000
Installation Guide
®
© 2001 Directed Electronics, Inc. Vista, CA N122 3-01
Rev. B 1.0

Advertisement

   Related Manuals for Directed Electronics MERLIN 2000

   Summary of Contents for Directed Electronics MERLIN 2000

  • Page 1

    Model 2000 Installation Guide ® © 2001 Directed Electronics, Inc. Vista, CA N122 3-01 Rev. B 1.0...

  • Page 2: Table Of Contents

    Bitwriter™, Code Hopping™, DEI®, Doubleguard®, ESP™, FailSafe®, Ghost Switch™, Learn Routine™, Nite-Lite®, Nuisance Prevention Circuitry®, NPC®, Revenger®, Silent Mode™, Soft Chirp®, Stinger®, Valet®, Vehicle Recovery System®, VRS®, and Warn Away® are all Trademarks or Registered Trademarks of Directed Electronics, Inc. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 3: What Is Included

    I Two back-up battery siren keys I A mercury tilt switch (for motorcycle installations) Shock Sensor Antenna Sensitivity Adjustment White LED Port (2-Pin Connector) Blue Valet Switch Port H1 Primary (2-Pin Connector) Harness Port (14-Pin Connector) © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 4: Installation Points To Remember

    Molex plug contacts to prevent the terminals from oxidizing. I Make sure to test all functions. The “Using Your System” section of the owner’s guide is very helpful when testing the system. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 5: Deciding On Component Locations, Siren, Control Module, Valet/program Switch, Status Led

    I It should be visible from both sides and the rear of the vehicle, if possible. I It needs at least -inch clearance to the rear. I The LED fits in a -inch hole. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 6: Finding The Wires You Need, Obtaining Constant 12v, V Switched Ignition Wire

    2. Attach the (-) probe of the meter to battery ground. 3. Probe the wire you suspect of being the ignition wire. The ignition switch harness is an excellent place to find this wire. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 7: Starter Wire, Parking Light Wire

    If the meter changes more than a volt when using the dimmer, look for another wire. If it stays relatively close to (+)12V, you have found your parking light wire. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 8: Making Your Wiring Connections

    If you use tapping connectors such as 3M T-Taps (not to be confused with Scotch-Locks), avoid using them in higher-current applications (constant 12V, ground, etc.). Some tapping connectors are inferior in quality and should be avoided. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 9: Primary Harness (h1), 14-pin Connector

    ______ H1/11 WHITE/BLUE (-) CHANNEL 3 OUTPUT ______ H1/12 RED/WHITE (-) CHANNEL 2 OUTPUT ______ H1/13 BLACK/WHITE* STARTER KILL OUTPUT ______ H1/14 WHITE (+) LIGHT FLASH OUTPUT #2 *NOTE: These wires are interchangeable. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 10: Primary Harness Wire Connection Guide

    This wire supplies (-) ground as long as the system is armed. This output ceases as soon as the system is dis- armed. This wire can be used to turn on an optional sensor or to ready an optional accessory, such as a pager module. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 11

    The harness must be unplugged from the control module. Use the supplied fuseholder, and don't forget to put the 15A fuse in after everything else is connected! Before connecting this wire, remove the supplied fuse. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 12

    IMPORTANT! Never use this wire to drive anything except a relay or a low-current input! This transistorized output can only supply (-)200 mA, and connecting directly to a solenoid, motor, or other high-current device will cause the module to fail. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 13

    Channel 2 transmitter button(s) is pressed. H1/13 BLACK/WHITE starter kill wire Refer to H1/10 BLACK/WHITE starter kill wire description. H1/14 WHITE (+) light flash output Refer to H1/6 WHITE (+) light flash output wire description. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 14: Making Siren Connections, Enabling The Back-up Battery Siren

    2. Insert the siren key into the siren lock switch and turn the key to the RIGHT to enable the back-up battery siren. 3. Remove the siren key and replace the water protective cap on the back of the siren. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 15: Plug-in Led And Valet/program Switch, On-board Doubleguard Shock Sensor

    NOTE: For watercraft, we recommend turning off the shock sensor whenever the craft is in the water to avoid false triggers. For instructions on how to bypass the shock sensor, refer the Multi-Level Security Arming section of this guide. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 16: Transmitter/receiver Learn Routine

    The learn routine will be exited when the ignition is turned off or if 10 seconds elapse between programming steps. The siren will emit a short chirp and then a long chirp to indicate that the learn routine has been exited. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 17: System Features Learn Routine

    Valet®/Program switch four times and then press it once more and hold it. The siren would chirp seven times to confirm access to the seventh feature. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 18: Features Menu, Feature Descriptions

    5 CHANNEL 2 DELAYED/LATCHED/LATCHED RESET WITH IGNITION/30-SECOND TIMED/60-SECOND TIMED/90- SECOND TIMED: Channel 2 can be programmed for these output configurations. The unit is set to the default delayed output. To change the configuration, use to toggle to the different settings. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 19: Multi-level Security Arming

    NOTE: Multi-Level Security Arming only applies to a single arming cycle. Once the system is dis- armed and then re-armed, all the zones will be active again. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 20: Nuisance Prevention Circuitry, Diagnostics, Arming Diagnostics, Disarming Diagnostics

    LED will indicate which zone was triggered (see the Table of Zones section of this guide). The system retains this information in its memory, and chirps four times each time the system is disarmed, until the next time the ignition is turned on. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 21: Table Of Zones, Troubleshooting

    I Check to make sure that good connections have been made on all the siren wires. I Make sure that the back-up battery siren has been enabled. (See Making Siren Connections section of this guide.) © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 22

    I Check the fuses on the H1/6 and H1/14 WHITE wires. Also check for 12-volt output on the H1/6 and H1/14 WHITE wires. I Make sure that the system is connected to a parking light lead, rather than an illumination lead. © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 23

    © 2001 Directed Electronics, Inc. Vista, CA...

  • Page 24

    © 2001 Directed Electronics, Inc. Vista, CA...
