NANO-PV-D510A User Manual
IEI Technology Corp.
MODEL:
NANO-PV-D510A

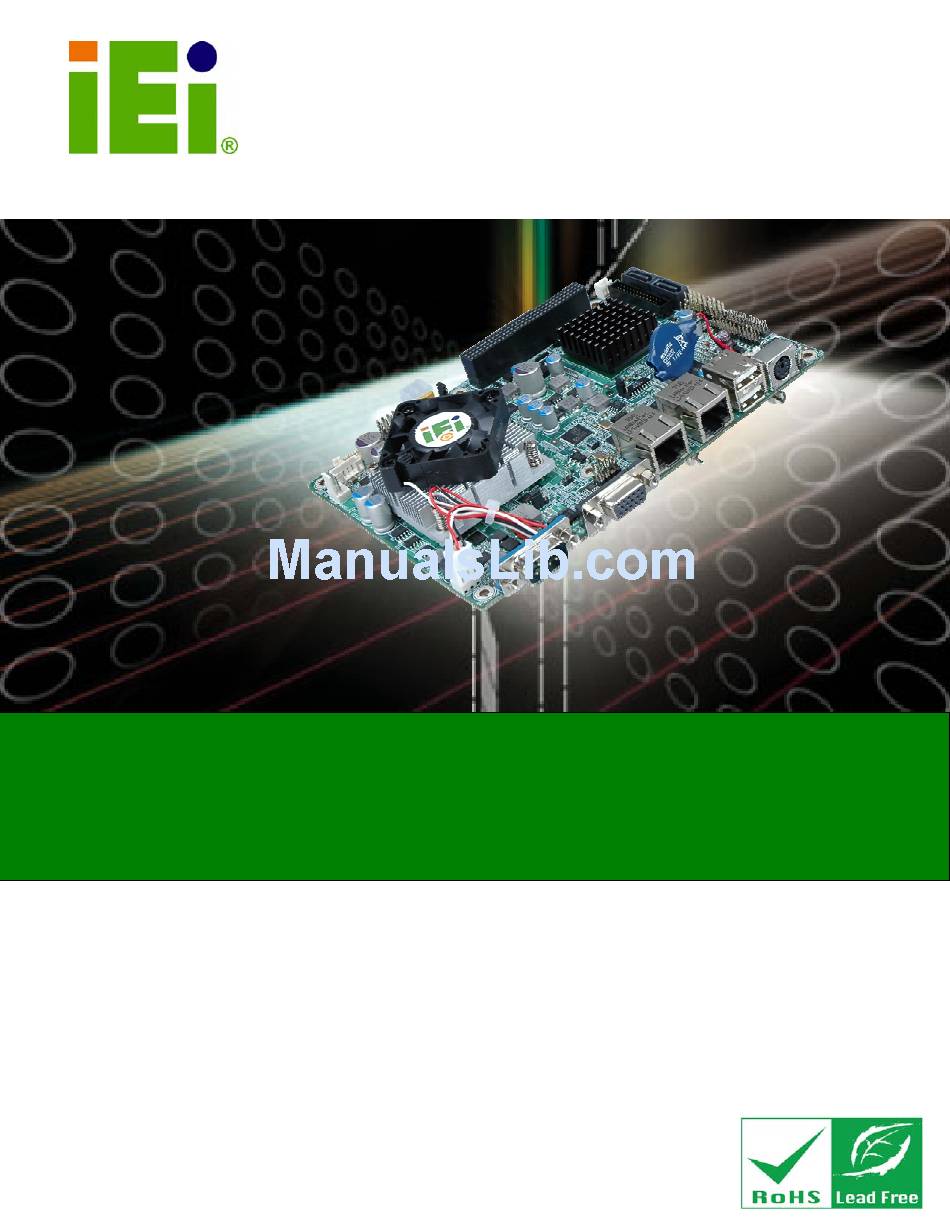

EPIC SBC with Intel® Atom™ D510 Dual Core Processor,
Gigabit Ethernet, USB, PCI-104, PCIe Mini Card, RS-232,
RS-232/422/485, SATA, CompactFlash® Type II
Rev. 1.00 – 25 May, 2010
RoHS Compliant
User Manual
NANO-PV-D510A
Page i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NANO-PV-D510A and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology NANO-PV-D510A

Summary of Contents for IEI Technology NANO-PV-D510A

  • Page 1 NANO-PV-D510A User Manual NANO-PV-D510A IEI Technology Corp. MODEL: NANO-PV-D510A EPIC SBC with Intel® Atom™ D510 Dual Core Processor, Gigabit Ethernet, USB, PCI-104, PCIe Mini Card, RS-232, RS-232/422/485, SATA, CompactFlash® Type II RoHS Compliant User Manual Page i Rev. 1.00 – 25 May, 2010...
  • Page 2 NANO-PV-D510A User Manual Revision Date Version Changes 25 May, 2010 1.00 Initial release Page ii...
  • Page 3 NANO-PV-D510A User Manual Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    NANO-PV-D510A User Manual Table of Contents 1 INTRODUCTION......................1 1.1 I ......................2 NTRODUCTION 1.2 F ........................2 EATURES 1.3 C ......................3 ONNECTORS 1.4 D ....................... 3 IMENSIONS 1.5 D ........................ 5 1.6 T ..................5 ECHNICAL PECIFICATIONS 2 UNPACKING ......................... 8 2.1 A...
  • Page 5 NANO-PV-D510A User Manual 3.2.12 PCI-104 Connector..................25 3.2.13 PCIe Mini Card Slot ..................26 3.2.14 SATA Drive Connectors ................. 28 3.2.15 SATA Power Connector.................. 29 3.2.16 Serial Port Connectors .................. 29 3.2.17 Serial Port Connector ..................30 3.2.18 SPI Flash Connector..................31 3.2.19 USB Connector ....................
  • Page 6 NANO-PV-D510A User Manual 4.6.2 Audio Cable Installation .................. 51 4.6.3 Keyboard/Mouse Connector ................52 4.6.4 Single RS-232 Cable (w/o Bracket) ..............54 4.7 E ........... 55 XTERNAL ERIPHERAL NTERFACE ONNECTION 4.7.1 LAN Connection....................55 4.7.2 PS/2 Y-Cable Connection................. 56 4.7.3 Serial Device Connection ................57 4.7.4 USB Connection....................
  • Page 7 NANO-PV-D510A User Manual 5.5.2 Boot Device Priority ..................102 5.5.3 Hard Disk Drives ................... 103 5.5.4 Removable Drives ..................104 5.5.5 CD/DVD Drives ..................... 104 5.6 S ....................... 105 ECURITY 5.7 C ......................... 106 HIPSET 5.7.1 Northbridge Chipset Configuration............... 107 5.7.2 Southbridge Configuration ................
  • Page 8 NANO-PV-D510A User Manual D.3.2 Enable the DIO Output Function..............145 E WATCHDOG TIMER....................146 F COMPATIBILITY..................... 149 F.1 C ................ 150 OMPATIBLE PERATING YSTEMS F.2 C ................151 OMPATIBLE EMORY ODULES G HAZARDOUS MATERIALS DISCLOSURE ............152 G.1 H IPB P...
  • Page 9 NANO-PV-D510A User Manual List of Figures Figure 1-1: NANO-PV-D510A ......................2 Figure 1-2: Connectors ........................3 Figure 1-3: NANO-PV-D510A Dimensions (mm)................4 Figure 1-4: Data Flow Diagram......................5 Figure 3-1: Connectors and Jumpers..................13 Figure 3-2: Connectors and Jumpers (Solder Side) ..............13 Figure 3-3: AT Power Connector Location ................15 Figure 3-4: Audio Kit Connector Location .................16...
  • Page 10 NANO-PV-D510A User Manual Figure 4-1: CompactFlash® Card Installation ................41 Figure 4-2: PCIe Mini Card Installation..................41 Figure 4-3: AT/ATX Power Select Jumper Settings ..............43 Figure 4-4: AT/ATX Power Select Jumper Settings ..............44 Figure 4-5: Clear BIOS Jumper Location ...................45 Figure 4-6: COM 3 Function Select Jumper Location...............45 Figure 4-7: CompactFlash®...
  • Page 11 NANO-PV-D510A User Manual Figure B-14: Compress Image............Error! Bookmark not defined. Figure B-15: Image Creation Confirmation ........Error! Bookmark not defined. Figure B-16: Image Creation Complete ........... Error! Bookmark not defined. Figure B-17: Image Creation Complete ........... Error! Bookmark not defined.
  • Page 12 NANO-PV-D510A User Manual List of Tables Table 1-1: Technical Specifications....................7 Table 3-1: Peripheral Interface Connectors ................14 Table 3-2: Rear Panel Connectors ....................15 Table 3-3: AT Power Connector Pinouts..................16 Table 3-4: Audio Kit Connector Pinouts..................16 Table 3-5: Battery Connector Pinouts ..................17 Table 3-6: CompactFlash®...
  • Page 13 NANO-PV-D510A User Manual Table 4-3: AT/ATX Power Select Jumper Settings ..............44 Table 4-4: Clear BIOS Jumper Settings..................44 Table 4-5: COM 3 Function Select Jumper Settings ..............45 Table 4-6: CompactFlash® Setup Jumper Settings ..............46 Table 4-7: LVDS Voltage Selection Jumper Settings..............47 Table 4-8: LVDS Screen Resolution Jumper Settings ..............48...
  • Page 14 NANO-PV-D510A User Manual BIOS Menus BIOS Menu 1: Main ........................65 BIOS Menu 2: Advanced ......................67 BIOS Menu 3: CPU Configuration ....................67 BIOS Menu 4: IDE Configuration....................68 BIOS Menu 5: IDE Master and IDE Slave Configuration ............70 BIOS Menu 6: Super IO Configuration..................74 BIOS Menu 7: Hardware Health Configuration ................79...

  • Page 15: Introduction

    NANO-PV-D510A User Manual Chapter Introduction Page 1...

  • Page 16: Introduction

    NANO-PV-D510A User Manual 1.1 Introduction Figure 1-1: NANO-PV-D510A The NANO-PV-D510A EPIC CPU card is an embedded 45 nm Intel® Atom™ processor platform. The Intel® Atom™ dual-core processor D510 embedded on the NANO-PV-D510A has a 1.66 GHz clock speed, and a 1 MB L2 cache. The NANO-PV-D510A supports one 200-pin 667/800 MHz 2.0 GB (max.) DDR2 SDRAM...

  • Page 17: Connectors

    NANO-PV-D510A User Manual 1.3 Connectors The connectors on the NANO-PV-D510A are shown in the figure below. Figure 1-2: Connectors 1.4 Dimensions The main dimensions of the NANO-PV-D510A are shown in the diagram below. Length: 165 mm Width: 115 mm Page 3...

  • Page 18: Figure 1-3: Nano-Pv-D510A Dimensions (Mm)

    NANO-PV-D510A User Manual Figure 1-3: NANO-PV-D510A Dimensions (mm) Page 4...

  • Page 19: Data Flow

    NANO-PV-D510A User Manual 1.5 Data Flow F igure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram 1.6 Technical Specifications NANO-PV-D510A technical specifications are listed in T able 1-1.
  • Page 20 NANO-PV-D510A User Manual Specification NANO-PV-D510A One single-channel 2.0 GB (max.) 667/800 MHz DDR2 Memory SDRAM SO-DIMM supported Audio Realtek ALC888 HD codec Intel® GbE PHY W82567V and PCIe GbE W82583V Super I/O Controller Fintek F81865 BIOS AMI BIOS Software programmable supports 1~255 sec. system reset...

  • Page 21: Table 1-1: Technical Specifications

    NANO-PV-D510A User Manual Specification NANO-PV-D510A Environmental and Power Specifications Power Supply 12 V only, AT/ATX support by jumper Power Consumption 12 V @ 1.63A DDR2 667 MHz 1 GB (Windows® XP, 3D mark®2001) Operating temperature -10ºC ~ 60ºC (requires cooler and silicone heat sink paste)

  • Page 22: Unpacking

    NANO-PV-D510A User Manual Chapter Unpacking Page 8...

  • Page 23: Anti-Static Precautions

    NANO-PV-D510A User Manual 2.1 Anti-static Precautions WARNING! Static electricity can destroy certain electronics. Make sure to follow the ESD precautions to prevent damage to the product, and injury to the user. Make sure to adhere to the following guidelines: Wear an anti-static wristband: Wearing an anti-static wristband can prevent electrostatic discharge.

  • Page 24: Packing List

    NANO-PV-D510A User Manual 2.3 Packing List NOTE: If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the NANO-PV-D510A was purchased from or contact an IEI sales representative directly by sending an email to ales@iei.com.tw.

  • Page 25: Optional Items

    NANO-PV-D510A User Manual Utility CD Quick Installation Guide 2.3.1 Optional Items The NANO-PV-D510A is shipped with the following components: Item and Part Number Image SATA cable (P/N: 32000-062800-RS) SATA power cable (P/N: 32100-088600-RS) LPT cable (w/o bracket) (P/N: 32200-015100-RS) RS-232/422/485 cable...

  • Page 26: Connectors

    NANO-PV-D510A User Manual Chapter Connectors Page 12...

  • Page 27: Peripheral Interface Connectors

    NANO-PV-D510A User Manual 3.1 Peripheral Interface Connectors This chapter details all the jumpers and connectors. 3.1.1 Layout The figures below show all the connectors and jumpers. Figure 3-1: Connectors and Jumpers Figure 3-2: Connectors and Jumpers (Solder Side) 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board.

  • Page 28: External Interface Panel Connectors

    NANO-PV-D510A User Manual Connector Type Label +12 V ATX power supply connector 4-pin ATX connector CPU12V1 Audio connector 10-pin header AUDIO1 Battery connector 2-pin header BAT1 CompactFlash® (CF) connector 50-pin header Digital I/O connector 10-pin header DIO1 Inverter power connector...

  • Page 29: Internal Peripheral Connectors

    NANO-PV-D510A User Manual Connector Type Label Ethernet connector RJ-45 LAN1, LAN2 Keyboard/Mouse connector PS/2 RS-232 serial port connector 9-pin male COM1 USB port, dual USB port USB6_7 VGA port connector 15-pin female VGA1 Table 3-2: Rear Panel Connectors 3.2 Internal Peripheral Connectors The section describes all of the connectors on the NANO-PV-D510A.

  • Page 30: Audio Kit Connector

    NANO-PV-D510A User Manual Description EXT_12VIN EXT_12VIN Table 3-3: AT Power Connector Pinouts 3.2.2 Audio Kit Connector CN Label: AUDIO1 CN Type: 10-pin header CN Location: See Figure 3-4 CN Pinouts: See Table 3-4 This connector connects to an external audio kit.

  • Page 31: Battery Connector

    NANO-PV-D510A User Manual 3.2.3 Battery Connector CN Label: BAT1 2-pin wafer (1x2) CN Type: CN Location: See Figure 3-5 CN Pinouts: See Table 3-5 This is connected to the system battery. The battery provides power to the system clock to retain the time when power is turned off.

  • Page 32: Figure 3-6: Compactflash® Slot Location

    NANO-PV-D510A User Manual Figure 3-6: CompactFlash® Slot Location Description Description GROUND VCC-IN CHECK1 DATA 3 DATA 11 DATA 4 DATA 12 DATA 5 DATA 13 DATA 6 DATA 14 DATA 7 DATA 15 HDC_CS0# HDC_CS1 GROUND IOR# IOW# VCC_COM IRQ15...

  • Page 33: Digital I/O Connector

    NANO-PV-D510A User Manual Description Description DATA 2 DATA 9 DATA 10 VCC-IN CHECK2 GROUND Table 3-6: CompactFlash® Slot Pinouts 3.2.5 Digital I/O Connector CN Label: DIO1 10-pin header CN Type: CN Location: See Figure 3-7 CN Pinouts: See Table 3-7 The digital I/O connector provides programmable input and output for external devices.

  • Page 34: Fan Connector

    NANO-PV-D510A User Manual 3.2.6 Fan Connector CN Label: CPU_FAN1, SYS_FAN1 3-pin header CN Type: CN Location: See Figure 3-8 CN Pinouts: See Table 3-8 The fan connector attaches to a cooling fan. Figure 3-8: Fan Connector Location Description +12V FANIO1 Table 3-8: Fan Connector Pinouts 3.2.7 Front Panel Connector...

  • Page 35: Lvds Backlight Inverter Connector

    NANO-PV-D510A User Manual The front panel connector connects to the indicator LEDs and buttons on the computer's front panel. Figure 3-9: Front Panel Connector Pinout Locations (8-pin) FUNCTION DESCRIPTION FUNCTION DESCRIPTION Power Button PWR_BTN Power LED VCC5 HDD LED HDD_LED+...

  • Page 36: Keyboard/Mouse Connector

    NANO-PV-D510A User Manual Figure 3-10: Backlight Inverter Connector Location Description BACKLIGHT ADJUST GROUND +12 V GROUND BACKLIGHT ENABLE Table 3-10: Backlight Inverter Connector Pinouts 3.2.9 Keyboard/Mouse Connector CN Label: KB/MS1 6-pin header (1x6) CN Type: CN Location: See Figure 3-11...

  • Page 37: Lvds Lcd Connector

    NANO-PV-D510A User Manual Description +5 V KB DATA MS DATA MS CLK KB DATA KB CLK GROUND Table 3-11: Keyboard/Mouse Connector Pinouts 3.2.10 LVDS LCD Connector CN Label: LVDS1 CN Type: 30-pin crimp (2x15) CN Location: See Figure 3-12 CN Pinouts: See Table 3-12 The LVDS connector is for an LCD panel connected to the board.

  • Page 38: Parallel Port Connector

    NANO-PV-D510A User Manual Description Description GROUND GROUND LDDC_DATA LDDC_CLK VCC_LCD VCC_LCD VCC_LCD VCC_LCD Table 3-12: LVDS Connector Pinouts 3.2.11 Parallel Port Connector CN Label: LPT1 26-pin box header CN Type: CN Location: See Figure 3-13 CN Pinouts: See Table 3-13 The parallel port connector connects to a parallel port connector interface or some other parallel port device such as a printer.

  • Page 39: Connector

    NANO-PV-D510A User Manual Description Description GROUND GROUND GROUND GROUND GROUND GROUND GROUND Table 3-13: Parallel Port Connector Pinouts 3.2.12 PCI-104 Connector CN Label: PCI104_PLUS1 PCI-104 connector CN Type: CN Location: See Figure 3-14 CN Pinouts: See Table 3-14 The PCI-104 connector is for installing a PCI-104 expansion card.

  • Page 40: Pcie Mini Card Slot

    NANO-PV-D510A User Manual Row A Row B Row C Row D SERR# SB0# PERR# +3.3 V SDONE STOP# +3.3 V LOCK# +3.3 V TRDY# DEVSEL# FRAME# IRDY# +3.3 V AD16 +3.3 V C/BE2# AD18 +3.3 V AD17 AD21 AD20 AD19 +3.3 V...

  • Page 41: Figure 3-15: Pcie Mini Card Slot Location

    NANO-PV-D510A User Manual Figure 3-15: PCIe Mini Card Slot Location Description Description PCIE_WAKE# VCC3 1.5 V CLKREQ# LFRAME# LAD3 CLK- LAD2 CLK+ LAD1 LAD0 PCIRST# VCC3 PCIRST# PERN2 3 VDual PERP2 1.5 V SMBCLK PETN2 SMBDATA PETP2 USBD- USBD+ SATA_RXP1...

  • Page 42: Sata Drive Connectors

    NANO-PV-D510A User Manual Description Description SATA_TXP1 1.5 V VCC3 Table 3-15: PCIe Mini Card Slot Pinouts 3.2.14 SATA Drive Connectors CN Label: SATA1, SATA2 7-pin SATA drive connectors CN Type: CN Location: See Figure 3-16 CN Pinouts: See Table 3-16 The SATA connectors connect to SATA hard drives or optical drives.

  • Page 43: Sata Power Connector

    NANO-PV-D510A User Manual 3.2.15 SATA Power Connector CN Label: PWR1 2-pin header CN Type: CN Location: See Figure 3-17 CN Pinouts: See Table 3-17 Use the SATA Power Connector to connect to SATA device power connections. Figure 3-17: SATA Power Connector Locations...

  • Page 44: Serial Port Connector

    NANO-PV-D510A User Manual Figure 3-18: Serial Port Connector Locations Description Description Data Carrier Direct (DCD) Data Set Ready (DSR) Receive Data (RXD) Request To Send (RTS) Transmit Data (TXD) Clear To Send (CTS) Data Terminal Ready (DTR) Ring Indicator (RI)

  • Page 45: Spi Flash Connector

    NANO-PV-D510A User Manual Description Description NDSR2 NRTS2 NCTS2 NRI2 TXD485+ TXD485- RXD485+ RXD485- Table 3-19: Serial Port Connector Pinouts 3.2.18 SPI Flash Connector CN Label: SPI1 CN Type: 8-pin header (2x4) CN Location: See Figure 3-20 CN Pinouts: See Table 3-20 The 8-pin SPI Flash connector is used to flash the BIOS.

  • Page 46: Usb Connector

    NANO-PV-D510A User Manual 3.2.19 USB Connector CN Label: USB0_1, USB2_3 and USB4_5 8-pin header (2x4) CN Type: CN Location: See Figure 3-21 CN Pinouts: See Table 3-21 The USB connectors connect to USB devices. Each pin header provides two USB ports.

  • Page 47: Keyboard/Mouse Connector

    NANO-PV-D510A User Manual Figure 3-22: External Peripheral Interface Connector 3.3.1 Keyboard/Mouse Connector CN Label: CN Type: PS/2 See Figure 3-22 CN Location: CN Pinouts: See Table 3-22 The keyboard and mouse connector is a standard PS/2 connector. Figure 3-23: PS/2 Pinout and Configuration...

  • Page 48: Lan Connector

    NANO-PV-D510A User Manual 3.3.2 LAN Connector CN Label: LAN1 RJ-45 CN Type: CN Location: See Figure 3-24 CN Pinouts: See Table 3-23 A 10/100/1000 Mb/s connection can be made to a Local Area Network. Description Description MDIA3- MDIA1+ MDIA3+ MDIA2+...

  • Page 49: Serial Port Connectors (Com1)

    NANO-PV-D510A User Manual 3.3.3 Serial Port Connectors (COM1) CN Label: COM1 DB-9 connector CN Type: CN Location: See Figure 3-22 CN Pinouts: See Table 3-25 and Figure 3-25 The serial port connects to a RS-232 serial communications device. Description Description...

  • Page 50: Vga Connector

    NANO-PV-D510A User Manual Description Description USBV3L 5 V USBP4N USBP5P USBP4P USBP5N USBV3L 5 V Table 3-26: USB Port Pinouts 3.3.5 VGA Connector CN Label: VGA1 15-pin Female CN Type: CN Location: See Figure 3-22 CN Pinouts: See Figure 3-26 and Table 3-27 Connects to a monitor that accepts a standard VGA input.

  • Page 51: Installation

    NANO-PV-D510A User Manual Chapter Installation Page 37...

  • Page 52: Anti-Static Precautions

    NANO-PV-D510A User Manual 4.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the NANO-PV-D510A result permanent damage NANO-PV-D510A and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the NANO-PV-D510A. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the NANO-PV-D510A or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
  • Page 53 NANO-PV-D510A User Manual WARNING: The installation instructions described in this manual should be carefully followed in order to prevent damage to the components and injury to the user. Before and during the installation please DO the following: Read the user manual: The user manual provides a complete description of the NANO-PV-D510A installation instructions and configuration options.

  • Page 54: Memory Installation

    NANO-PV-D510A User Manual 4.3 Memory Installation WARNING: Do not run the CPU without a heatsink and fan. Without the heatsink and fan, the high temperatures can destroy the CPU and other components. CPUs marked as fanless don't need the fan, but still need adequate ventilation.

  • Page 55: Pcie Mini Card Installation

    NANO-PV-D510A User Manual Figure 4-1: CompactFlash® Card Installation 4.3.2 PCIe Mini Card Installation To install the PCIe Mini card, please refer to the diagram and instructions below. Figure 4-2: PCIe Mini Card Installation Page 41...

  • Page 56: Jumper Settings

    NANO-PV-D510A User Manual Step 4: Insert into the socket at and angle. Line up the notch on the card with the notch on the connector. Slide the PCIe Mini card into the socket at an angle of about 20º. Step 5: Push down until the card clips into place.

  • Page 57: At/Atx Power Select Jumper Settings

    NANO-PV-D510A User Manual Description Label Type AT/ATX power select J_AUTOPWR1 2-pin header AT/ATX power select J_ATXCTL1 3-pin header CompactFlash® card setup JCF1 3-pin header Clear CMOS J_CMOS1 3-pin header PCI-104 voltage setup 3-pin header LVDS voltage selection J_VLVDS1 3-pin header...

  • Page 58: At/Atx Power Select Jumper Settings

    NANO-PV-D510A User Manual 4.4.2 AT/ATX Power Select Jumper Settings Jumper Label: J_ATXCTL1 3-pin header Jumper Type: Jumper Settings: See Table 4-2 Jumper Location: See Figure 4-3 The AT Power Select jumper specifies the systems power mode as AT or ATX.

  • Page 59: Com 3 Function Select Jumper

    NANO-PV-D510A User Manual Figure 4-5: Clear BIOS Jumper Location 4.4.4 COM 3 Function Select Jumper Jumper Label: Jumper Type: 3-pin header See Table 4-5 Jumper Settings: See Figure 4-6 Jumper Location: The COM 3 Function Select jumper sets the communication protocol used by the third serial communications port (COM 3) as RS-232, RS-422/RS-485.

  • Page 60: Lvds Voltage Selection

    NANO-PV-D510A User Manual The CompactFlash® slot is connected through an IDE connection. This jumper sets the CompactFlash® card as the master or slave IDE device. Setting Description Open Slave Closed Master Table 4-6: CompactFlash® Setup Jumper Settings Figure 4-7: CompactFlash® Setup Jumper Location 4.4.6 LVDS Voltage Selection...

  • Page 61: Lvds Screen Resolution Selection

    NANO-PV-D510A User Manual Setting Description +3.3 V +5.0 V +12 V Table 4-7: LVDS Voltage Selection Jumper Settings Figure 4-8: LVDS Voltage Selection Jumper Locations 4.4.7 LVDS Screen Resolution Selection Jumper Label: J_LCD_TYPE1 Jumper Type: 8-pin header Jumper Settings: See Table 4-7...

  • Page 62: Voltage Setup

    NANO-PV-D510A User Manual Description Open 640 x 480 (18-bit) Short 1-2 800 x 480 (18-bit) Short 3-4 800 x 600 (18-bit) Short 1-2 and 3-4 1024 x 600 (18-bit) Short 5-6 1024 x 768 (18-bit) Short 1-2 and 5-6 1280 x 720 (18-bit)

  • Page 63: Chassis Installation

    NANO-PV-D510A User Manual Figure 4-10: PCI-104 Voltage Jumper Location 4.5 Chassis Installation 4.5.1 Airflow WARNING: Airflow is critical for keeping components within recommended operating temperatures. The chassis should have fans and vents as necessary to keep things cool. The NANO-PV-D510A must be installed in a chassis with ventilation holes on the sides allowing airflow to travel through the heat sink surface.

  • Page 64: At/Atx Power Connection

    NANO-PV-D510A User Manual 4.6.1 AT/ATX Power Connection Follow the instructions below to connect the NANO-PV-D510A to an AT or ATX power supply. WARNING: Disconnect the power supply power cord from its AC power source to prevent a sudden power surge to the NANO-PV-D510A.

  • Page 65: Audio Cable Installation

    NANO-PV-D510A User Manual Step 3: Connect Power Cable to Power Supply. Connect one of the 4-pin (1x4) Molex type power cable connectors to an AT/ATX power supply. See Figure 4-12. Step 3: Figure 4-12: Connect Power Cable to Power Supply 4.6.2 Audio Cable Installation...

  • Page 66: Keyboard/Mouse Connector

    NANO-PV-D510A User Manual Step 5: Align pin 1. Align pin 1 on the on-board connector with pin 1 on the audio kit connector. Pin 1 on the audio cable connector is indicated with a white dot. See Figure 4-13. Figure 4-13: Audio Cable Connection Connect the audio devices.

  • Page 67: Figure 4-14: Keyboard/Mouse Y-Cable Connection

    NANO-PV-D510A User Manual Step 6: Locate the connector. The location of the keyboard/mouse Y-cable connector is shown in Chapter 3. Step 7: Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on the NANO-PV-D510A keyboard/mouse connector. See Figure 4-14.

  • Page 68: Single Rs-232 Cable (W/O Bracket)

    NANO-PV-D510A User Manual PS/2 connectors. The keyboard PS/2 connector and mouse PS/2 connector are both marked. Please make sure the keyboard and mouse are connected to the correct PS/2 connector. Step 0: 4.6.4 Single RS-232 Cable (w/o Bracket) The single RS-232 cable consists of one serial port connector attached to a serial communications cable that is then attached to a D-sub 9 male connector.

  • Page 69: External Peripheral Interface Connection

    NANO-PV-D510A User Manual Step 4: Connect the serial device. Once the single RS-232 connector is connected to a chassis or bracket, a serial communications device can be connected to the system. Step 0: 4.7 External Peripheral Interface Connection The following external peripheral devices can be connected to the external peripheral interface connectors.

  • Page 70: Ps/2 Y-Cable Connection

    NANO-PV-D510A User Manual Figure 4-16: LAN Connection Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45 connector into the onboard RJ-45 connector. Step 0: 4.7.2 PS/2 Y-Cable Connection The NANO-PV-D510A has a PS/2 connector on the external peripheral interface panel.

  • Page 71: Serial Device Connection

    NANO-PV-D510A User Manual Figure 4-17: PS/2 Keyboard/Mouse Connector Step 3: Connect the keyboard and mouse. Connect the keyboard and mouse to the appropriate connector. The keyboard and mouse connectors can be distinguished from each other by looking at the small graphic at the top of the connector.

  • Page 72: Usb Connection

    NANO-PV-D510A User Manual Figure 4-18: Serial Device Connector Step 3: Secure the connector. Secure the serial device connector to the external interface by tightening the two retention screws on either side of the connector. Step 0: 4.7.4 USB Connection The external USB Series "A" receptacle connector provides easier and quicker access to external USB devices.

  • Page 73: Vga Monitor Connection

    NANO-PV-D510A User Manual Figure 4-19: USB Connector 4.7.5 VGA Monitor Connection The NANO-PV-D510A has a single female DB-15 connector on the external peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the NANO-PV-D510A, please follow the instructions below.

  • Page 74: Software Installation

    NANO-PV-D510A User Manual Figure 4-20: VGA Connector Step 6: Secure the connector. Secure the DB-15 VGA connector from the VGA monitor to the external interface by tightening the two retention screws on either side of the connector. Step 0: 4.8 Software Installation All the drivers for the NANO-PV-D510A are on the CD that came with the system.

  • Page 75: Figure 4-21: Introduction Screen

    NANO-PV-D510A User Manual Figure 4-21: Introduction Screen Step 3: Click NANO-PV-D510A. Step 4: A new screen with a list of available drivers appears (Figure 4-22). Figure 4-22: Available Drivers Step 5: Install all of the necessary drivers in this menu.

  • Page 76: Bios

    NANO-PV-D510A User Manual Chapter BIOS Page 62...

  • Page 77: Introduction

    NANO-PV-D510A User Manual 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. 5.1.1 Starting Setup The AMI BIOS is activated when the computer is turned on. The setup program can be activated in one of two ways.

  • Page 78: Getting Help

    NANO-PV-D510A User Manual Function F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears.

  • Page 79: Main

    NANO-PV-D510A User Manual 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset...

  • Page 80: Advanced

    NANO-PV-D510A User Manual The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds. System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.

  • Page 81: Cpu Configuration

    NANO-PV-D510A User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Advanced Settings Configure CPU ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ WARNING: Setting wrong values in below sections may cause system to malfunction > CPU Configuration > IDE Configuration > SuperIO Configuration Select Screen >...

  • Page 82: Ide Configuration

    NANO-PV-D510A User Manual Frequency: Lists the CPU processing speed FSB Speed: Lists the FSB speed Cache L1: Lists the CPU L1 cache size Cache L2: Lists the CPU L2 cache size 5.3.2 IDE Configuration Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system.

  • Page 83: Ide Master, Ide Slave

    NANO-PV-D510A User Manual Enhanced Configures the on-board ATA/IDE controller to be in EFAULT Enhanced mode. In this mode, IDE channels and SATA channels are separated. This mode supports up to 6 storage devices. Some legacy OS do not support this mode.

  • Page 84: Auto-Detected Drive Parameters

    NANO-PV-D510A User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Primary IDE Master Select the type of device ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ connected to the system Device :Not Detected Type [Auto] LBA/Large Mode [Auto] Block (Multi-Sector Transfer) [Auto] PIO Mode...

  • Page 85: Type [Auto]

    NANO-PV-D510A User Manual 32Bit Data Transfer: Enables 32-bit data transfer. Type [Auto] Use the Type BIOS option select the type of device the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) is complete. Not Installed BIOS is prevented from searching for an IDE disk drive on the specified channel.

  • Page 86: Block (Multi Sector Transfer) [Auto]

    NANO-PV-D510A User Manual Block (Multi Sector Transfer) [Auto] Use the Block (Multi Sector Transfer) to disable or enable BIOS to auto detect if the device supports multi-sector transfers. Disabled BIOS is prevented from using Multi-Sector Transfer on the specified channel. The data to and from the device occurs one sector at a time.
  • Page 87 NANO-PV-D510A User Manual Auto BIOS auto detects the DMA mode. Use this value if the IDE EFAULT disk drive support cannot be determined. Single Word DMA mode 0 selected with a maximum data SWDMA0 transfer rate of 2.1 MB/s SWDMA1 Single Word DMA mode 1 selected with a maximum data transfer rate of 4.2 MB/s...

  • Page 88: Super Io Configuration

    NANO-PV-D510A User Manual S.M.A.R.T [Auto] Use the S.M.A.R.T option to auto-detect, disable or enable Self-Monitoring Analysis and Reporting Technology (SMART) on the drive on the specified channel. S.M.A.R.T predicts impending drive failures. The S.M.A.R.T BIOS option enables or disables this function.

  • Page 89: Serial Port1 Address [3F8]

    NANO-PV-D510A User Manual Serial Port1 Address [3F8] Use the Serial Port1 Address option to select the Serial Port 1 base address. No base address is assigned to Serial Port 1 Disabled Serial Port 1 I/O port address is 3F8 Serial Port 1 I/O port address is 2F8...

  • Page 90: Serial Port3 Address [2F8]

    NANO-PV-D510A User Manual Serial Port3 Address [2F8] Use the Serial Port3 Address option to select the Serial Port 3 base address. No base address is assigned to Serial Port 3 Disabled Serial Port 3 I/O port address is 3F8 Serial Port 3 I/O port address is 2F8...

  • Page 91: Parallel Port Address [Disabled]

    NANO-PV-D510A User Manual Parallel Port Address [Disabled] Use the Parallel Port Address option to select the parallel port base address. No base address is assigned to the Parallel Port Disabled EFAULT Parallel Port I/O port address is 378 Parallel Port I/O port address is 278...

  • Page 92: Parallel Port Irq [Irq7]

    NANO-PV-D510A User Manual EPP+ECP The parallel port operates in the extended capabilities port (ECP) mode. The ECP mode supports bi-directional communication between the system and the parallel port device and the transmission rates between the two are much faster than the Normal mode...

  • Page 93: Hardware Health Configuration

    NANO-PV-D510A User Manual 5.3.4 Hardware Health Configuration The Hardware Health Configuration menu (BIOS Menu 7) shows the operating temperature, fan speeds and system voltages. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Hardware Health Configuration Fan configuration mode ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...
  • Page 94 NANO-PV-D510A User Manual Auto Fan by RPM The fan adjusts its speed using these settings by EFAULT RPM: CPU Temp. Highest Limit CPU Temp. Second Limit CPU Temp. Third Limit CPU Temp. Lowest Limit CPU Fan Highest Setting CPU Fan Second Setting...

  • Page 95: Cpu Temp. Highest Limit [050]

    NANO-PV-D510A User Manual NOTE: PWM functions are supported only when using a 4-pin fan. When using a 3-pin fan, the PWM functions are not supported. CPU Temp. Highest Limit [050] WARNING: CPU failure can result if this value is set too high The fan will turn off if the temperature falls below this value.

  • Page 96: Cpu Temp. Lowest Limit [020]

    NANO-PV-D510A User Manual When the fan is off, it will only start when the temperature exceeds this setting. Minimum Value: 0°C Maximum Value: 127°C CPU Temp. Lowest Limit [020] WARNING: CPU failure can result if this value is set too high When the fan is off, it will only start when the temperature exceeds this setting.

  • Page 97: Remote Access Configuration

    NANO-PV-D510A User Manual CPU Fan Fourth Setting [060] This value is always full speed and corresponds to the CPU Temp. Fourth Limit. Minimum Value: 0 (Auto Fan by DutyCycle) or 12 (Auto Fan by RPM) Maximum Value: 100 CPU Fan Lowest Setting [050] This value is always full speed and corresponds to the CPU Temp.

  • Page 98: Remote Access [Disabled]

    NANO-PV-D510A User Manual allows a remote host running a terminal program to display and configure the BIOS settings. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Configure Remote Access type and parameters ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Remote Access [Disabled] Serial port number...

  • Page 99: Serial Port Number [Com1]

    NANO-PV-D510A User Manual Serial Port Number [COM1] Use the Serial Port Number option to select the serial port used for remote access. System is remotely accessed through COM1 COM1 EFAULT COM2 System is remotely accessed through COM2 NOTE: Make sure the selected COM port is enabled through the Super I/O configuration menu.

  • Page 100: Power Configuration

    NANO-PV-D510A User Manual Boot Loader Redirection is active during POST and during Boot Loader Redirection is always active (Some OSes may not Always EFAULT work if set to Always) Terminal Type [ANSI] Use the Terminal Type BIOS option to specify the remote terminal type.

  • Page 101: Acpi Configuration

    NANO-PV-D510A User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit Select AT/ATX Power [BY HARDWARE] Default set Current Jumper Setting [ATX Power] AUTO is detect power supply status > Power Configuration Select Screen ↑ ↓ Select Item...

  • Page 102: Suspend Mode [S1 (Pos)]

    NANO-PV-D510A User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit ACPI Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ Suspend mode [S1 (POS)] Restore on AC Power Loss [Power On] Resume on KeyBoard/Mouse [Disabled] Resume on PCI-Express Wake# [Disabled] RI Resume [Disabled] Select Screen ↑...

  • Page 103: Resume On Keyboard/Mouse [Disabled]

    NANO-PV-D510A User Manual Resume on Keyboard/Mouse [Disabled] Use the Resume on Keyboard/Mouse BIOS option to enable activity on either the keyboard or mouse to rouse the system from a suspend or standby state. That is, the system is roused when the mouse is moved or a button on the keyboard is pressed.

  • Page 104: Ahci Configuration

    NANO-PV-D510A User Manual Disabled The real time clock (RTC) cannot generate a wake EFAULT event If selected, the following appears with values that Enabled can be selected: RTC Alarm Date (Days) RTC Alarm Time After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off.

  • Page 105: Ahci Port N

    NANO-PV-D510A User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit AHCI Settings Some SATA CD/DVD in AHCI ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ mode need to wait ready longer > AHCI Port0 [Not Detected] > AHCI Port2 [Not Detected] Select Screen ↑...

  • Page 106: Usb Configuration

    NANO-PV-D510A User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit AHCI Port0 Select the type of device ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ connected to the system Device :Not Detected ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ SATA Port0 [Auto] S.M.A.R.T. [Enabled] Select Screen ↑ ↓ Select Item...

  • Page 107: Usb Configuration

    NANO-PV-D510A User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit USB Configuration Enables USB host ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ controllers Module Version – 2.24.5-13.4 USB Devices Enabled: None USB Functions [Enabled] Select Screen ↑ ↓ USB 2.0 Controller [Enabled] Select Item...

  • Page 108: Usb Mass Storage Device Configuration

    NANO-PV-D510A User Manual Disabled USB 2.0 controller disabled USB 2.0 controller enabled Enabled EFAULT Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 109: Usb Mass Storage Reset Delay [20 Sec]

    NANO-PV-D510A User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit USB Mass Storage Device Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ USB Mass Storage Reset Delay [20 Sec] Device #1 M-SysT5 Dell Memory Key 5.04 Emulation Type [Auto] Select Screen ↑ ↓...

  • Page 110: Pci/Pnp

    NANO-PV-D510A User Manual Auto BIOS auto-detects the current USB. EFAULT The USB device will be emulated as a floppy drive. Floppy The device can be either A: or B: responding to INT13h calls that return DL = 0 or DL = 1 respectively.

  • Page 111: Irq# [Available]

    NANO-PV-D510A User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Advanced PCI/PnP Settings Available: Specified IRQ ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ is available to be use the PCI/PnP devices WARNING: Setting wrong values in below sections Reserved: Specified IRQ may cause system to malfunction...

  • Page 112: Dma Channel# [Available]

    NANO-PV-D510A User Manual IRQ9 IRQ10 IRQ 11 IRQ 14 IRQ 15 DMA Channel# [Available] Use the DMA Channel# option to assign a specific DMA channel to a particular PCI/PnP device. Available The specified DMA is available to be used by...

  • Page 113: Boot

    NANO-PV-D510A User Manual 5.5 Boot Use the Boot menu (BIOS Menu 16) to configure system boot options. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Boot Settings Configure settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ during system boot. > Boot Settings Configuration > Boot Device Priority >...

  • Page 114: Quick Boot [Enabled]

    NANO-PV-D510A User Manual Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process. No POST procedures are skipped Disabled Enabled Some POST procedures are skipped to decrease EFAULT the system boot time...

  • Page 115: Bootup Num-Lock [On]

    NANO-PV-D510A User Manual Bootup Num-Lock [On] Use the Bootup Num-Lock BIOS option to specify if the number lock setting must be modified during boot up. Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad.

  • Page 116: Boot Device Priority

    NANO-PV-D510A User Manual 5.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 18) to specify the boot sequence from the available devices. The drive sequence also depends on the boot sequence in the individual device section. BIOS SETUP UTILITY...

  • Page 117: Hard Disk Drives

    NANO-PV-D510A User Manual 5.5.3 Hard Disk Drives Use the Hard Disk Drives menu to specify the boot sequence of the available HDDs. Only installed hard drives are shown. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Hard Disk Drives Specifies the boot ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...

  • Page 118: Removable Drives

    NANO-PV-D510A User Manual 5.5.4 Removable Drives Use the Removable Drives menu (BIOS Menu 20) to specify the boot sequence of the removable drives. Only connected drives are shown. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Hard Disk Drives Specifies the boot ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...

  • Page 119: Security

    NANO-PV-D510A User Manual The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available CD/DVD drives is shown. Select the first CD/DVD drive the system boots from. If the “1st Drive” is not used for booting this option may be disabled.

  • Page 120: Chipset

    NANO-PV-D510A User Manual Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change Supervisor Password.

  • Page 121: Northbridge Chipset Configuration

    NANO-PV-D510A User Manual BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit Advanced Chipset Settings ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ WARNING: Setting wrong values in below section may cause system to malfunction. > Northbridge Configuration > Southbridge Configuration Select Screen ↑ ↓ Select Item...

  • Page 122: Initiate Graphic Adapter

    NANO-PV-D510A User Manual Initiate Graphic Adapter Use the Initiate Graphic Adapter option to select the graphics controller used as the primary boot device. Select either an integrated graphics controller (IGD) or a combination of PCI graphics controller, a PCI express (PEG) controller or an IGD. Configuration...

  • Page 123: Southbridge Configuration

    NANO-PV-D510A User Manual 5.7.2 Southbridge Configuration Use the Southbridge Configuration menu (BIOS Menu 25) to configure the Southbridge chipset. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit Southbridge Chipset Configuration ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯ GbE Controller [Enabled] HDA Controller [Disabled] Select Screen ↑...

  • Page 124: Exit

    NANO-PV-D510A User Manual 5.8 Exit Use the Exit menu (BIOS Menu 26) to load default BIOS values, optimal failsafe values and to save configuration changes. BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Power Exit Exit Options Exit system setup after ⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯⎯...

  • Page 125: Load Failsafe Defaults

    NANO-PV-D510A User Manual Load Failsafe Defaults Use the Load Failsafe Defaults option to load failsafe default values for each of the parameters on the Setup menus. F8 key can be used for this operation. Page 111...

  • Page 126: Abios Options

    NANO-PV-D510A User Manual Appendix BIOS Options Page 112...
  • Page 127 NANO-PV-D510A User Manual Below is a list of BIOS configuration options in the BIOS chapter. 　 System Overview .........................65 　 System Time [xx:xx:xx] .......................66 　 System Date [xx/xx/xx] ......................66 　 ATA/IDE Configurations [Compatible]................68 　 Configure SATA as [IDE].....................69 　 IDE Master and IDE Slave....................69 　...
  • Page 128 NANO-PV-D510A User Manual 　 CPU Fan Fourth Setting [060] .....................83 　 CPU Fan Lowest Setting [050] ....................83 　 Hardware Health Monitoring ....................83 　 Remote Access [Disabled]....................84 　 Serial Port Number [COM1]....................85 　 Base Address, IRQ [2F8h,3]....................85 　 Serial Port Mode [115200 8,n,1]..................85 　...
  • Page 129 NANO-PV-D510A User Manual 　 AddOn ROM Display Mode [Force BIOS] ............... 100 　 Bootup Num-Lock [On] ....................101 　 Spread Spectrum Function [Disabled] ................101 　 Change Supervisor Password ..................106 　 Change User Password....................106 　 Clear User Password ......................106 　...

  • Page 130: B One Key Recovery

    NANO-PV-D510A User Manual Appendix One Key Recovery Page 116...

  • Page 131: One Key Recovery Introduction

    NANO-PV-D510A User Manual B.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. The one key recovery provides quick and easy shortcuts for creating a backup and reverting to that backup or for reverting to the factory default settings.
  • Page 132 NANO-PV-D510A User Manual Windows 7 Windows CE 5.0 Windows CE 6.0 Windows XP Embedded Linux Fedora Core 12 (Constantine) Fedora Core 11 (Leonidas) Fedora Core 10 (Cambridge) Fedora Core 8 (Werewolf) Fedora Core 7 (Moonshine) RedHat RHEL-5.4 RedHat 9 (Ghirke) Ubuntu 8.10 (Intrepid)

  • Page 133: Setup Procedure For Windows

    NANO-PV-D510A User Manual NOTE: The recovery CD can only be used with IEI products. The software will fail to run and a warning message will appear when used on non-IEI hardware. B.2 Setup Procedure for Windows Prior to using the recovery tool to backup or restore system, a few setup procedures are required.

  • Page 134: Hardware And Bios Setup

    NANO-PV-D510A User Manual NOTE: The setup procedures described below are for Microsoft Windows operating system users. For Linux system, most setup procedures are the same with Microsoft Windows except for several steps which is described in Section B.3. B.2.1 Hardware and BIOS Setup Step 1: Make sure the system is powered off and unplugged.

  • Page 135: Figure B-1: Recovery Tool Setup Menu

    NANO-PV-D510A User Manual Figure B-1: Recovery Tool Setup Menu Step 5: Press <5> then <Enter>. Figure B-2: Command Mode Step 6: The command prompt window appears. Type the following commands (marked in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition.

  • Page 136: Figure B-3: Partition Creation Commands

    NANO-PV-D510A User Manual Figure B-3: Partition Creation Commands Page 122...

  • Page 137: Install Operating System, Drivers And Applications

    NANO-PV-D510A User Manual NOTE: Use the following commands to check if the partitions were created successfully. Step 7: Press any key to exit the recovery tool and automatically reboot the system. Please continue to the following procedure: Build-up Recovery Partition.S t e p 0 : B.2.3 Install Operating System, Drivers and Applications...

  • Page 138: Figure B-4: System Configuration For Windows

    NANO-PV-D510A User Manual Step 2: Start the system. Step 3: Press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient. Step 4: When the recovery tool setup menu appears, press <2> then <Enter>.

  • Page 139: Create Factory Default Image

    NANO-PV-D510A User Manual Step 6: After completing the system configuration, press any key in the following window to reboot the system. Figure B-6: Press any key to continue Step 7: Eject the recovery CD. S t e p 0 : B.2.5 Create Factory Default Image...

  • Page 140: Figure B-8: Recovery Tool Menu

    NANO-PV-D510A User Manual Figure B-8: Recovery Tool Menu Step 3: The About Symantec Ghost window appears. Click OK button to continue. Figure B-9: About Symantec Ghost Window Step 4: Use mouse to navigate to the option shown below (Figure B-10).

  • Page 141: Figure B-10: Symantec Ghost Path

    NANO-PV-D510A User Manual Figure B-10: Symantec Ghost Path Step 5: Select the local source drive as shown in Figure B-11. Then click OK. Figure B-11: Select a Local Source Drive Step 6: Select a source partition from basic drive as shown in Figure B-12. Then click...

  • Page 142: Figure B-13: File Name To Copy Image To

    NANO-PV-D510A User Manual Step 7: Select 1.2: [Recovery] NTFS drive and enter a file name called (Figure B-13). Click Save. The factory default image will then be saved in the selected recovery drive and named IEI.GHO. WARNING: The file name of the factory default image must be iei.GHO.
  • Page 143 NANO-PV-D510A User Manual Step 8: When the Compress Image screen in Figure B-14 prompts, click High to make the image file smaller. Figure B-14: Compress Image Step 9: The Proceed with partition image creation window appears, click Yes to continue.

  • Page 144: Setup Procedure For Linux

    NANO-PV-D510A User Manual Step 11: When the image creation completes, a screen prompts as shown in Figure B-17. Click Continue and close the Ghost window to exit the program. Figure B-17: Image Creation Complete Step 12: The recovery tool main menu window is shown as below. Press any key to reboot the system.
  • Page 145 NANO-PV-D510A User Manual NOTE: If the Linux OS is not installed with GRUB (v0.97 or earlier) and Ext3, the Symantec Ghost may not function properly. While installing Linux OS, please create two partitions: Partition 1: / Partition 2: SWAP NOTE: Please reserve enough space for partition 3 for saving recovery images.
  • Page 146 NANO-PV-D510A User Manual system32>format N: /fs:ntfs /q /v:Recovery /y system32>exit Step 4: Build-up recovery partition. Press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient. When the recovery tool setup menu appears, type <3>...

  • Page 147: Recovery Tool Functions

    NANO-PV-D510A User Manual Step 7: The recovery tool menu appears. (Figure B-22) Figure B-22: Recovery Tool Menu Step 8: Create a factory default image. Follow Step 2 Step 12 described in Section Formatted: Bullet B.2.5 to create a factory default image.
  • Page 148 NANO-PV-D510A User Manual Figure B-23: Recovery Tool Main Menu The recovery tool has several functions including: 1. Factory Restore: Restore the factory default image (iei.GHO) created in Section B.2.5. 2. Backup system: Create a system backup image (iei_user.GHO) which will be saved in the hidden partition.

  • Page 149: Factory Restore

    NANO-PV-D510A User Manual B.4.1 Factory Restore To restore the factory default image, please follow the steps below. Step 9: Type <1> and press <Enter> in the main menu. Step 10: The Symantec Ghost window appears and starts to restore the factory default. A factory default image called iei.GHO is created in the hidden Recovery partition.

  • Page 150: Backup System

    NANO-PV-D510A User Manual B.4.2 Backup System To backup the system, please follow the steps below. Step 12: Type <2> and press <Enter> in the main menu. Step 13: The Symantec Ghost window appears and starts to backup the system. A backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 151: Restore Your Last Backup

    NANO-PV-D510A User Manual B.4.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Step 15: Type <3> and press <Enter> in the main menu. Step 16: The Symantec Ghost window appears and starts to restore the last backup image (iei_user.GHO).

  • Page 152: Manual

    NANO-PV-D510A User Manual B.4.4 Manual To restore the last system backup, please follow the steps below. Step 18: Type <4> and press <Enter> in the main menu. Step 19: The Symantec Ghost window appears. Use the Ghost program to backup or recover the system manually.

  • Page 153: C Terminology

    NANO-PV-D510A User Manual Appendix Terminology Page 139...
  • Page 154 NANO-PV-D510A User Manual AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 155 NANO-PV-D510A User Manual Direct Memory Access (DMA) enables some peripheral devices to bypass the system processor and communicate directly with the system memory. DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module.
  • Page 156 NANO-PV-D510A User Manual Liquid crystal display (LCD) is a flat, low-power display device that consists of two polarizing plates with a liquid crystal panel in between. LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer.

  • Page 157: D Digital I/O Interface

    NANO-PV-D510A User Manual Appendix Digital I/O Interface Page 143...

  • Page 158: Introduction

    NANO-PV-D510A User Manual D.1 Introduction The DIO connector on the NANO-PV-D510A is interfaced to GPIO ports on the Super I/O chipset. The DIO has both 4-bit digital inputs and 4-bit digital outputs. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices.

  • Page 159: Assembly Language Samples

    NANO-PV-D510A User Manual D.3 Assembly Language Samples D.3.1 Enable the DIO Input Function The BIOS interrupt call INT 15H controls the digital I/O. An assembly program to enable digital I/O input functions is listed below. Sets the digital port as input...

  • Page 160: E Watchdog Timer

    NANO-PV-D510A User Manual Appendix Watchdog Timer Page 146...
  • Page 161 NANO-PV-D510A User Manual NOTE: The following discussion applies to DOS. Contact IEI support or visit the IEI website for drivers for other operating systems. The Watchdog Timer is a hardware-based timer that attempts to restart the system when it stops working. The system may stop working because of external EMI or software bugs.
  • Page 162 NANO-PV-D510A User Manual NOTE: The Watchdog Timer is activated through software. The software application that activates the Watchdog Timer must also deactivate it when closed. If the Watchdog Timer is not deactivated, the system will automatically restart after the Timer has finished its countdown.

  • Page 163: F Compatibility

    NANO-PV-D510A User Manual Appendix Compatibility Page 149...

  • Page 164: Compatible Operating Systems

    NANO-PV-D510A User Manual NOTE: The compatible items described here have been tested by the IEI R&D team and found to be compatible with the NANO-PV-D510A F.1 Compatible Operating Systems The following operating systems have been successfully run on the NANO-PV-D510A.

  • Page 165: Compatible Memory Modules

    NANO-PV-D510A User Manual F.2 Compatible Memory Modules NOTE: The memory modules listed below have been tested on the NANO-PV-D510A other memory modules that comply with the specifications may also work on the NANO-PV-D510A but have not been tested. The following memory modules have been successfully tested on the NANO-PV-D510A.

  • Page 166: G Hazardous Materials Disclosure

    NANO-PV-D510A User Manual Appendix Hazardous Materials Disclosure Page 152...

  • Page 167: Hazardous Materials Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    NANO-PV-D510A User Manual G.1 Hazardous Materials Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 168 NANO-PV-D510A User Manual Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated Biphenyls Diphenyl (Pb) (Hg) (Cd) Chromium (CR(VI)) (PBB) Ethers (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 169 NANO-PV-D510A User Manual 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

Table of Contents
