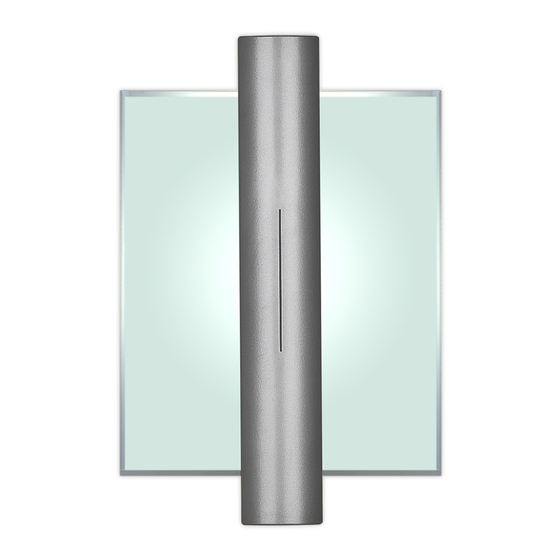

Lightolier Soli 48020ALU Specification

Page 1 of 2
14.0"
Height
Note: Luminaire can be ordered with or without diffusing shield. Order each separately.
Fixture Ordering Information
Catalog No. Finish
48020ALU Powder Coated
Metallic Aluminum
Diffuser Ordering Information
Catalog No. Description
40873 Translucent Etched Soda Lime Glass w/ Chamfered Edges
40913 Extruded Opal Virgin Acrylic w/ Chamfered Edges
Features
1. Housing: Extruded and die-cast aluminum ballast and lamp chamber.
2. Optional Diffuser/Reflector: Curved etched glass or extruded opal virgin
acrylic.
3. Lamp: Triple tube Compact Fluorescent, 4-pin, electronic (by others).
4. Lampholder: Universal 26/32/42W Gx24q3/q4 base.
5. Optics: Internal patterned Alzak ® reflector.
Mounting
Mounts directly to switch box or 4" octagonal J-Box. Octagonal box mounting
requires use of "J-Box Covers" and "Support Plate" supplied standard.
Electrical
Ballast: Electronic
120/277V Univ.
Total Input Watts: 26W Lamp = 29W
32W Lamp = 36W
42W Lamp = 46W
Max. Line Current: 26W 120V = 0.24A
277V = 0.11A
32W 120V = 0.31A
277V = 0.13A
42W 120V = 0.38A
277V = 0.17A
Power Factor: 26/32/42W =.98
Ballast Factor: 26W = 1.10
32/42W = 0.98
THD: 26/32/42W = 10%
Starting Temp: 0°F / -18°C
Architectural Decorative Soli
9 1/2" Width
4 3/4"
2 3/8"
1
2
4 1/2"
To Outlet
Box Center
Wattage Voltage
26/32/42W 120/277V
Wall Mounted Compact Fluorescent ADA Compliant
1 1/2"
4"
Extension
3
4
5
Lamping
Quad or Triple Tube Compact Fluorescent
Dimensions
11" L x 9.5" W x 5 mm Thick
11" L x 9.5" W x 5 mm Thick
Options
Dimming: Advance Mark X ballasts are supplied as standard, delete U from the
end of catalog number and replace with suffix codes below:
MX1 = Multi-wattage 26/32/42W, 120V input.
MX2 = Multi-wattage 26/32/42W, 277V input.
Matching Linear Units: See SOLI ADA 2' 48021ALU, SOLI ADA 3' 48022ALU,
SOLI ADA 4' 48023ALU.
Finish
All painted parts utilized the powder coat process. Lightolier Metallic Aluminum
Powder Coat Enamel.
Labels
cULus Listed. Suitable for Damp Locations.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte Thomas Company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2003 Genlyte Thomas Group LLC (Lightolier Division) • A0303
48020ALU
™
9 1/2"
Type:
www.lightolier.com
