Lightolier Calculite Matrix 4X9LW Specification

Page 1 of 2

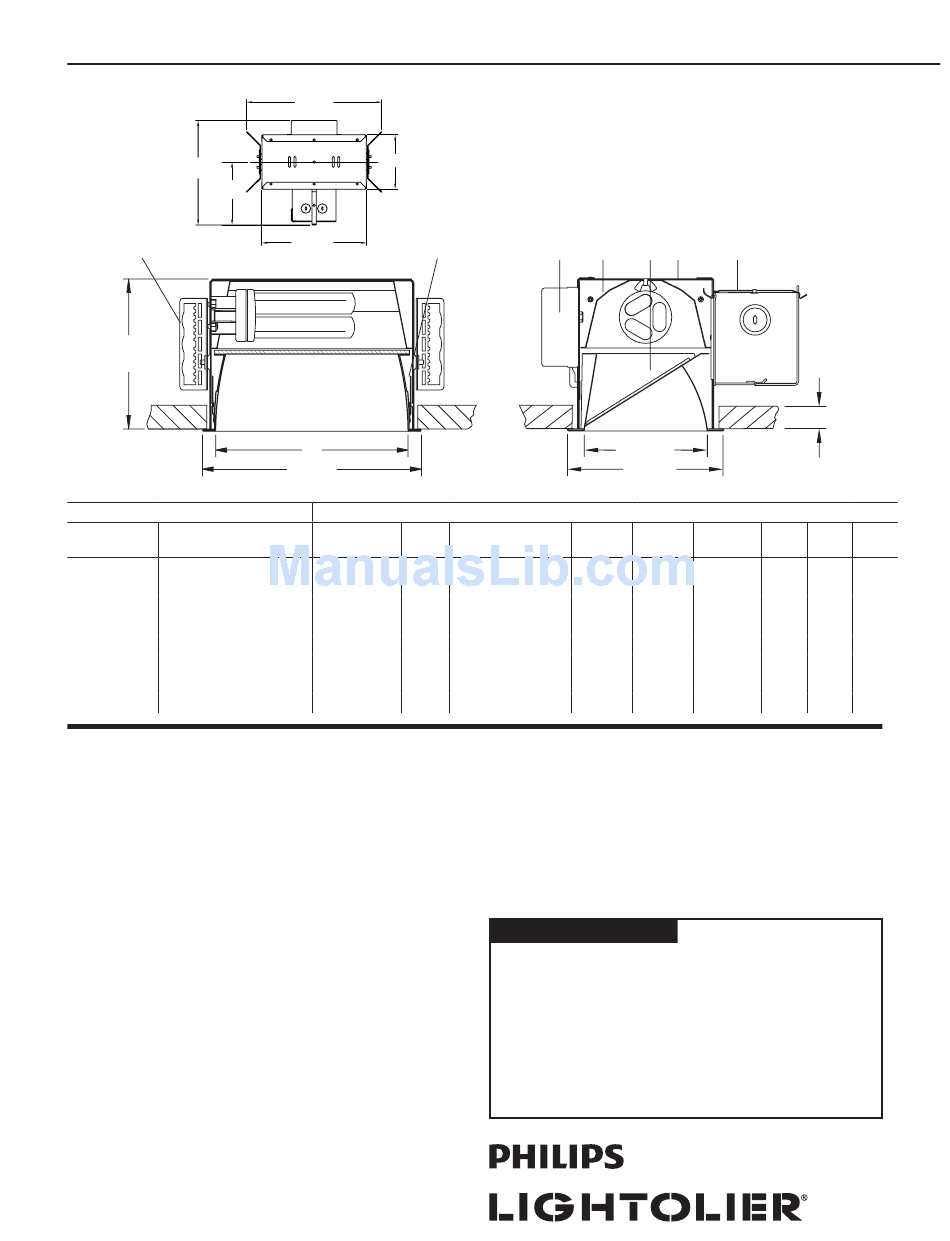

9 5/8"
5 7/8"
7
5 1/2"
Ceiling Cutout: 5 1/8" L X 9 5/8" W
Trim Kits
Reflector Trims Finish / Flange
4X9LWCLW Specular Clear / White
4X9LWCLP Specular Clear / Polished
4X9LWCCLW Comfort Clear / White
4X9LWCCLP Comfort Clear / Polished
4X9LWCCDW Comfort Clear Diff. / White
4X9LWCCDP
Comfort Clear Diff. / Polished
4X9LWCCGP Clear Corrugated / Self Flange
4X9LWWHW White Painted/White
Features
1. Reflector Trim: Pre-finished aluminum with low iridescence clear finish.
Overlap flange accommodates different ceiling types. Precision mitered
flange corners. Prismatic spread lens, 5/32" thick tempered glass.
2. Upper Reflector: High efficiency, 97%, Specular Clear.
3. Housing: 22 ga. galvanized formed steel. Centerline notches and holes
for consistent alignment of multiple fixtures. Accommodates ceilings up to
1 1/4" thick.
4. Ballast Assembly: Door-mounted for easy service, allows replacement from
inside of fixture.
5. Torsiontite Springs: Precision-tooled steel springs secure reflector trim
to housing for quick tool-less installation. Positive tension holds flange tight
against ceiling.
6. J-Box: 14 ga. galvanized steel. Accessible from inside and outside of the
fixture. Outside J-Box door is hinged for easy access.
7. Mounting Brackets: 16 ga. steel. Adjustable from inside fixture. Utilize 3/4"
or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.

Options and Accessories

Chicago Plenum with Fuse (Slow Blow): Add LCF suffix to Frame-In Kit,
consult factory for specifications.
Emergency: Add EM suffix to Frame-In Kit, consult factory for specifications.
Option not available in the 57W version.
Mounting Bars / T-Bar Anchor Clips: See specification sheet "MBA".
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0409
Calculite
4 1/2" X 9" Rectangular Aperture (1) 26W Quad / 32/42 Triple
12 3/8"
Top View
5"
9 9/16"
5
9"
10 1/4"
Frame-In Kits
Frame-In Kits Type Ballast
4X9142HU Non-IC Electronic
4X9142HUEM Non-IC Electronic - Emergency 120/277V 26W
4X9142HJUM7 Non-IC
Mark 7
4X9142HJ1MX Non-IC Mark 10
4X9142HJ2MX Non-IC
Mark 10
Matrix Lensed Wall Washer
® ®
4 2 1
4 1/2"
5 3/4"
Input Quad Tube
Voltage Wattage
120/277V 26W
Dimming 120/277V 26W
®
Dimming 120V 26W
®
® Dimming 277V 26W
Electrical
UL listed for through circuit wiring with max of (8) No. 12 AWG, 90°C supply
conductors.
Note: For complete ballast data and lamp/ballast compatibility refer to
"Ballast" specification sheet.
General
UL listed for wet locations, I.B.E.W. Union Made.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
4X9LW
3 6
1 1/4" Max. 1 1/4" Max.
Ceiling Ceiling
Thickness Thickness
Triple Tube
Length Width
Wattage
32/42W 12 1/2" 9 1/2"
32/42W 12 1/2" 11"
32/42W 12 1/2" 9 1/4"
32/42W 12 1/2" 9 1/4"
32/42W 12 1/2" 9 1/4"
Type:
Height
5 3/4"
5 3/4"
5 3/4"
5 3/4"
5 3/4"
