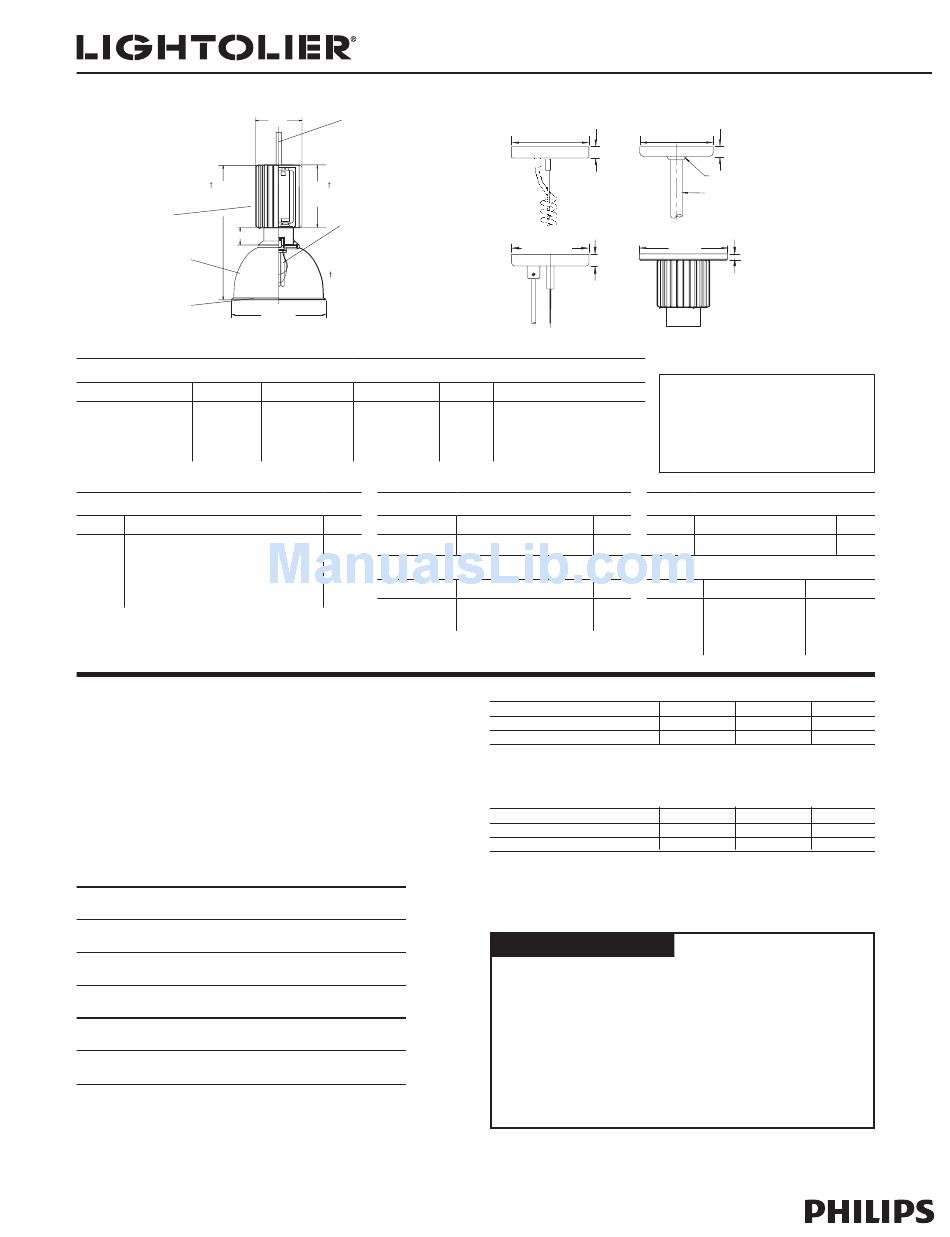

Lightolier Pendalyte 40472U Specification

Page 1 of 3
2
1
4
Complete fixture consists of: Power Head, Reflector, and Suspension. Select each separately
Reflector/Refractor Power Head: Powder Coated Textured Dark Gray
Cat. No
40421 Semi Specular,
Anodized Reflector
40422 Acrylic Refractor
Note: For CFL unit with integrated Emergency Battery Pack (EM) Option refer to Spec Sheet number P-EM for Cat. No. ordering guide and specification data.
Suspension
Cat. No. Description
404SKG 120" Length Cable/Cord + Coil Cord
404SG5* 120" Length 5-wire Straight Cable/Cord Only
404S36
36" Length 5/8" Stem
404S60 60" Length 5/8" Stem
404S120 120" Length 5/8" Stem
Suspension Kits are able to be field cut.
Features
1. Reflector/Refractor: Injection Molded Acrylic, UV Stabilized. Semi-specular
High purity Anodized Aluminum, 16 gauge iridescence-free.
2. Power Head Housing: Two-piece extruded aluminum. Removable door allows for
ease of installation and servicing. Dark Gray textured powder coat finish.
3. Suspension:
Cable/Cord: 1/16" Stainless Steel/SJT 18-3, Gray. Cable/Coiled Cord: 1/16"
Stainless Steel/SJT 18-3, Gray. Gray Canopy. Stem: 3/4" steel tubing an canopy,
with 35° swivel hanger. Gray Finish.
4. Shielding Options: Industrex
Lamping (by others)
Compact Fluorescent:
General Electric Osram/Sylvania
(1) 26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F26TBX/*/A/4P CF26DT/E/IN/*
(1) 32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F32TBX/*/A/4P CF32DT/E/IN/*
(1) 42W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F42TBX/*/A/4P CF42DT/E/IN/*
Metal Halide:
General Electric Osram/Sylvania
(1) 70W Ceramic Metal Halide ED17 Lamp
MXR70/C/U/MED/0 MCP70/C/U/MED/*
(1) 100W Ceramic Metal Halide ED17 Lamp
MXR100/C/U/MED/0 MCP100/C/U/MED/*
* Manufacturers' color temperature designation.
Electrical
Lampholders:
Compact Fluorescent: 4-pin, 26/32 watt base: GX24q-3; 42 watt base: GX24q-4;
Incandescent: Medium Base, porcelain, Nickel Plated Screw Shell.
Metal Halide: Medium Base, Porcelain 4KV pulse rated.
Lightolier is a Philips group brand
Specification Decorative Pendalyte
6-1/4"
3
150W A21
26W Triple Tube
32W Triple Tube
8-1/2"
42W Triple Tube
18-1/4"
or
or 57W Triple Tube
5-5/8"
15-3/8"
70W Triple Tube
ED17 70W
ED17 100W
2-1/4"
Larger dimensions apply to fixtures:
4047257MX1 and MX2
4047270MX1 and MX2 only.
12-13/32"
Cat. No Lamp Watts
4046261
Incandescent A21 150
40472U3 CFL Triple Tube 26/32/42
4047270EU Metal Halide ED17 70 (Open Rated)
40472100EU Metal Halide ED17 100 (Open Rated)
Direct to Ceiling Kits
Color Cat. No.
Gray 4912CTGR
Gray
Optional Extension Kits
Gray
Gray
Cat. No.
404EXT300
404EXT300G5*
Use with Standard Cord. Suspension Kits are able to be field cut.
*DALI requires a 5-Wire Suspension Kit
Glass Lens or Clear Acrylic Lens
®
Philips
PL-T26W/*/4P
PL-T32W/*/4P
PL-T42W/*/4P
Philips
MHC70/C/U/MP*
MHC100/C/UMP*
Suspension Details
5 1/2" DIA.
3/4"
Cable/Coiled Cord
5 1/2" DIA.
3/4"
Cable/Cord
Volts Options
120 Not App.
Remove U or U3 from
120/277V MX1, MX2, DA, E3
Cat. No. & add Suffix
120/277V N/A
120/277V N/A
Description Color
All 9", 12" and 16" Pendalytes Gray
Description Color
25' Extension Cable/Cord Kit Gray
25' Cable/Cord, 5-Wire Kit
Ballast: Fluorescent: Electronic
Voltage
Total Input Watts
Max. Line Current (Amps)
Power Factor >.98, Ballast Factor .98, THD <10%
Minimum Starting Temperature 0°F
Metal Halide: Electronic
Voltage
Total Input Watts
Max. Line Current (Amps)
High power factor minimum ballast temperature +5°F.
Labels
cULus Listed. Suitable for Damp Locations.
Industrex is a registered trademark of AFG Industries, Inc.
®
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • M1108
40472U
™
5 1/2"
7/8"
SWIVEL JOINT (35˚)
5/8" STEEL TUBING
Stem
10 3/8"
3/4"
Close to Ceiling Kit
MX1 = Mark X Dimming 26/32/42W, 120V*
MX2 = Mark X Dimming 26/32/42W, 277V*
DA = DALI (Digital Addressable Interface)**
E3 = 347V (Canada) specification data
*2-wire, neutral connection required at dimming control.
** 5-wire Suspension Kit required.
Track Mounting Kits
Cat. No. Description
404GLS Lytespan Track Mounting Kit
Reflector/Refractor Options
Cat. No. Description Used With
421G Industrux Glass Lens 40421
422A
Flat Arylic Lens 40422
422G Industrux Glass Lens 40422
404TRM12 12" Trim Ring 40422/40421
26 Watt 32 Watt
120 277 120 277 120 277
26 26 36 36
.22 .09 .30 .09
70 Watt 100 Watt
120 277 120 277
78 78 110 110
.67 .29 .94 .42
Type:
12" Pendant
Color
Gray
42 Watt
47 47
.39 .17
