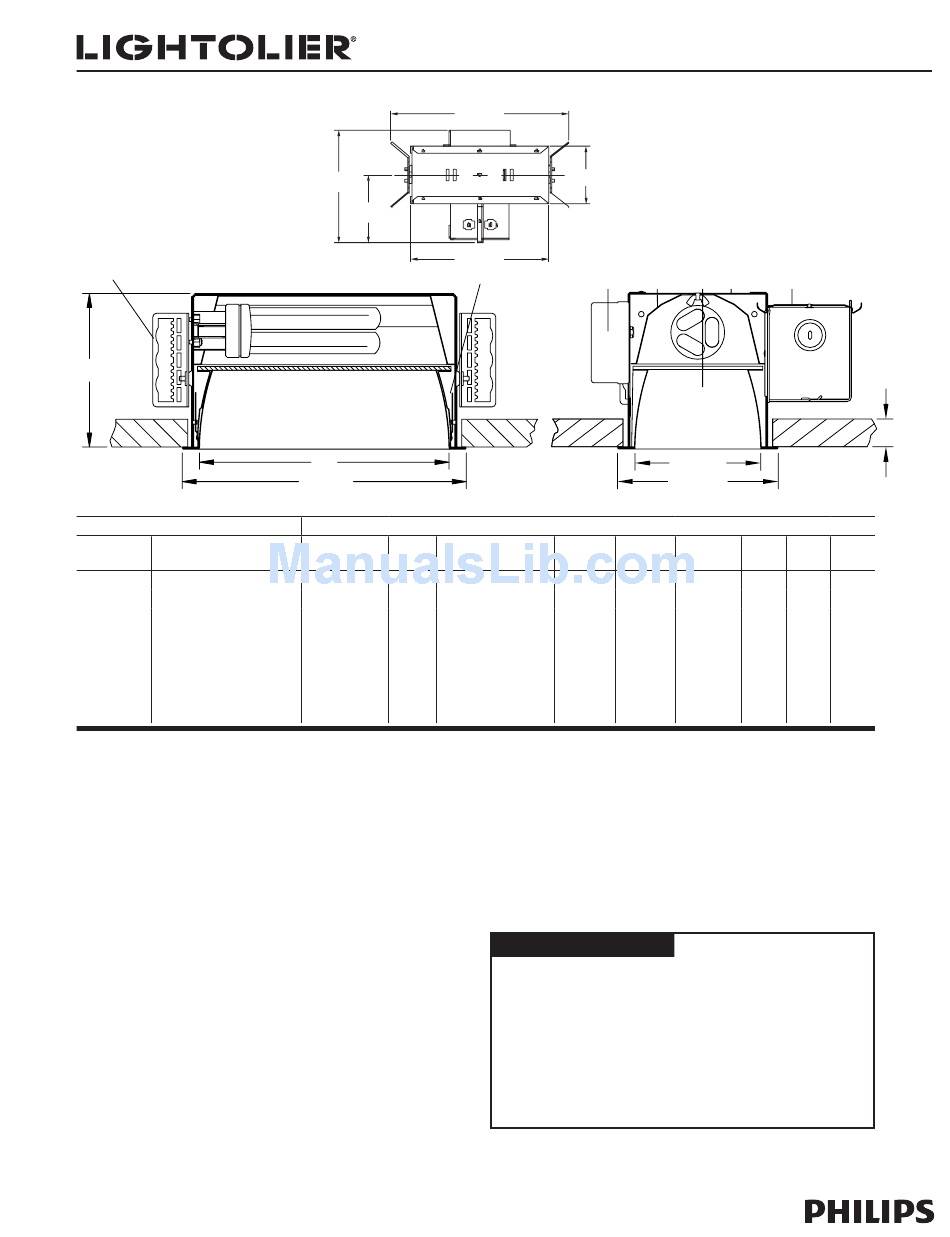

Lightolier Calculite Matrix 4X9PL Specification

Page 1 of 2
7
5 1/2"
Ceiling Cutout: 5 1/8" L X 9 5/8" W
Trim Kits
Reflector
Finish / Flange
Trims
4X9PLCLW Specular Clear / White
4X9PLCLP
Specular Clear / Polished
4X9PLCCLW
Comfort Clear / White
4X9PLCCLP
Comfort Clear / Polished
4X9PLCCDW
Comfort Clear Diff. / White
4X9PLCCDP
Comfort Clear Diff. / Polished
4X9PLCCGP
Clear Corrugated / Self Flange
4X9PLWHW
White / White
Features
1. Reflector Trim: Pre-finished aluminum with low iridescence clear finish.
Overlap flange accommodates different ceiling types. Precision mitered
flange corners. Prismatic spread lens, 5/32" thick tempered glass.
2. Upper Reflector: High efficiency, 97%, Specular Clear.
3. Housing: 22 Ga. galvanized formed steel. Centerline notches and holes
for consistent alignment of multiple fixtures. Accommodates ceilings up to
1 1/4" thick.
4. Ballast Assembly: Door-mounted for easy service, allows replacement from
inside of fixture.
5. Torsiontite Springs: Precision-tooled steel springs secure reflector trim
to housing for quick tool-less installation. Positive tension holds flange tight
against ceiling.
6. J-Box: 14 Ga. galvanized steel. Accessible from inside and outside of the
fixture. Outside J-box door is hinged for easy access.
7. Mounting Brackets: 16 Ga. steel. Adjustable from inside fixture. Utilize
3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
Options & Accessories
Chicago Plenum with Fuse (slow blow): add LCF suffix to frame-in kit, con-
sult factory for specifications.
Emergency: add EM suffix to frame-in kit, consult factory for specifications.
Option not available in the 57W version.
Mounting Bars / T-Bar Anchor Clips: See specification sheet "MBA".
Lightolier is a Philips group brand
Calculite
4 1/2" X 9" Rectangular Aperture (1) 26W Quad/32/42 Triple Tube Prismatic Lens
Top View
9 5/8"
5 5/8"
9"
10 1/4"
Frame-In Kits
Frame-In Kits Type Ballast
4X9142HU Non-IC Electronic
4X9142HUEM
Non-IC Electronic - Emergency 120/277V 26W
4X9142HJUM7 Non-IC
Mark 7
4X9142HJ1MX
Non-IC Mark 10
4X9142HJ2MX Non-IC Mark 10
Matrix Lensed Downlight
® ®
12 3/8"
5"
9 9/16"
5
4
Input Quad Tube
Voltage Wattage
120/277V 26W
Dimming 120/277V 26W
®
Dimming 120V 26W
®
Dimming 277V 26W
®
Electrical
UL Listed for through circuit wiring with max of (8) No. 12 AWG, 90°C supply
conductors.
Note: For complete ballast data and lamp / ballast compatibility refer to
"Ballast" specification sheet.
General
UL listed for wet locations, I.B.E.W. Union Made.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
