INSTRUCTIONSHEETNO

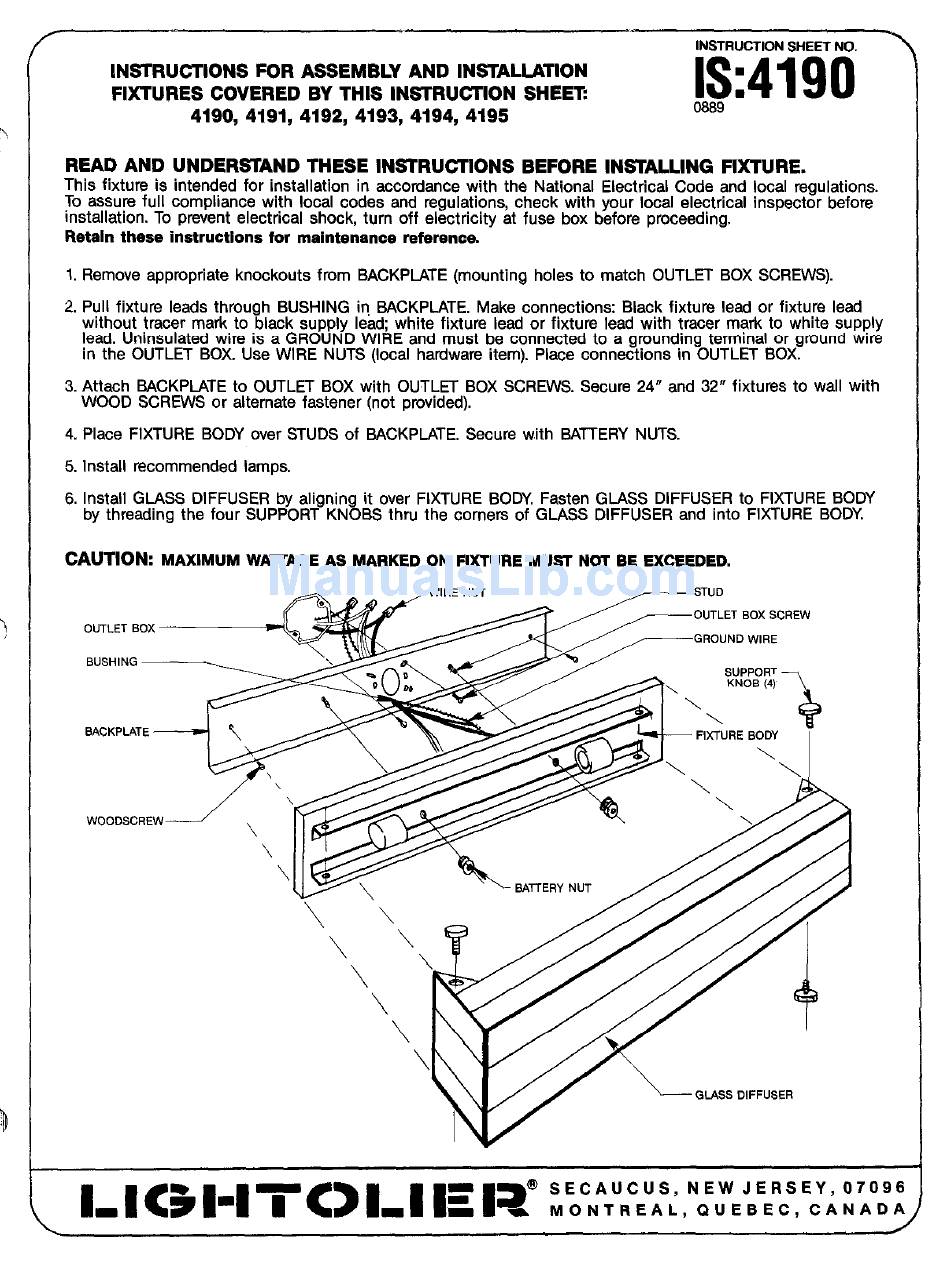

INSTRUCTIONS FOR ASSEMBLY AND INSTALLATION
FIXTURES COVERED BY THIS INSTRUCTION SHEET
IS:4190
4190, 419i, 4192, 4193, 4194, 4195
0S89
READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.
This fixture is intended for installation in accordance with the National Electrical Code and local regulations.
To sssure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.
Retain thaae inatructiona for maintenance referanca
1, Remove appropriate knockouts from BACKPLATE (mounting holes to match OUTLET BOX SCREWS).
2. Pull fixture Ieada through BUSHING in, BACKPLATE. Make connections Black fixture lead or fixture lead
without tracer mark to black supply Iea$ white fixture lead or fixture lead with tracer mark to white supply
lead. Uninsulated wire is a GROUND WIRE and must be connected to a grounding terminal or ground wire
in the OUTLET BOX. Use WIRE NUTS (local hardware item). Place connections in OUTLET BOX.
3. Attach BACKPLATE to OUTLET BOX with OUTLET BOX SCREWS. Secure 24" and 32" fixtures to wall with
WOOD SCREWS or alternate fsstener (not provided).
4. Place FIXTURE BODY over STUDS of BACKPLATE. Secure with BATTERY NUTS.
5. Install recommended lamps.
6. Install GLASS DIFFUSER by aligning it over FIXTURE BODY, Faeten GLASS DIFFUSER to FIXTURE BODY
by threading the four SUPPORT KNOBS thru the corners of GLASS DIFFUSER and into FIXTURE BODY.
CAUTION: MAXIMUM WAlTAGE AS MARKED ON FIXTURE MUST NUr BE EXCEEDED.
OUTLET
BUSHIN
BACKPL
WOODS
