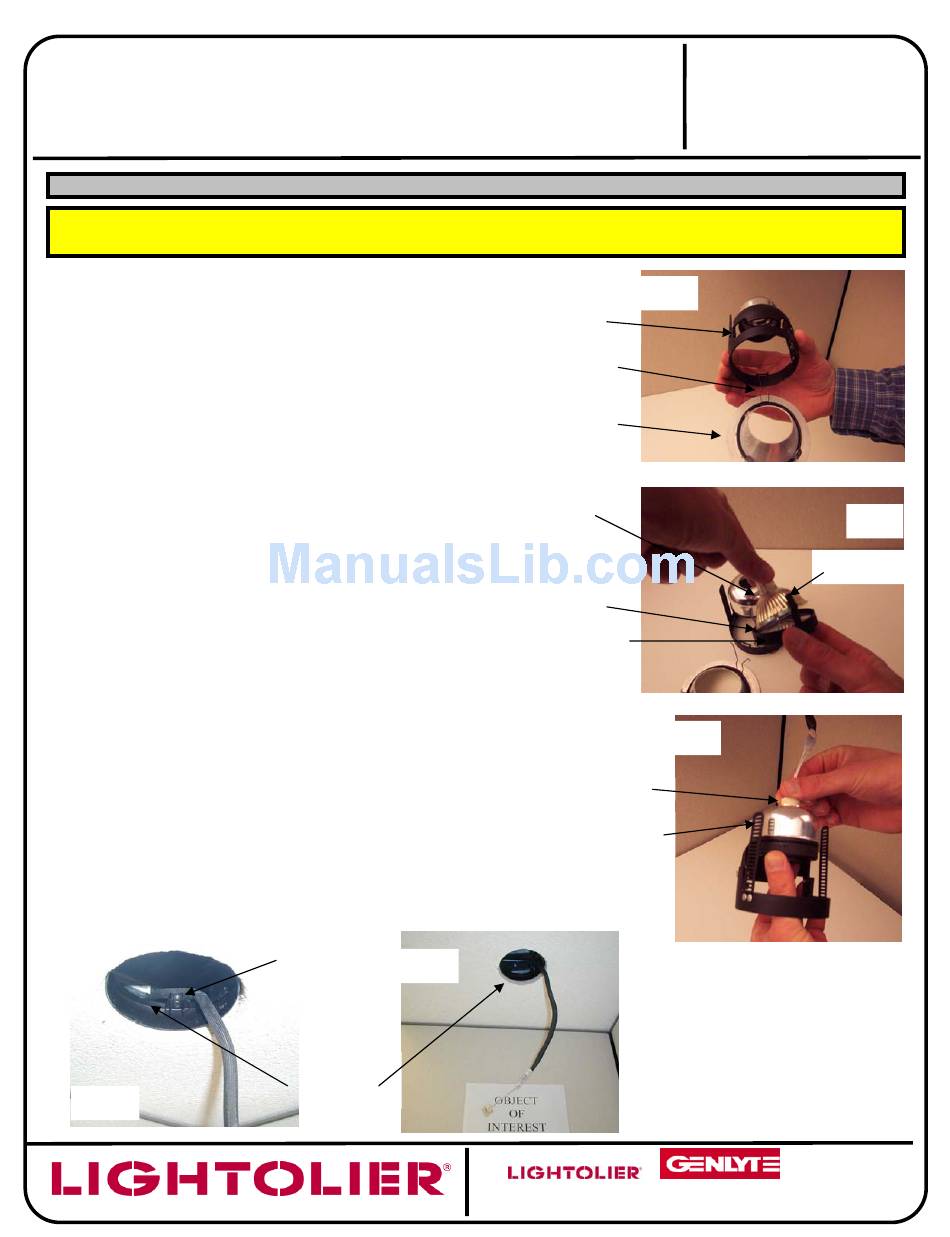

Lightolier CALCULITE EVOLUTION TRIMS Installation

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING LUMINAIRE
This luminaire is intended for installation in accordance with the National Electrical Code and local regulations.
To assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTALLATION PROCEDURE FOR CALCULITE® EVOLUTION TRIMS
WARNING:
USE ONLY REFLECTOR TRIMS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURER'S
REFLECTOR TRIMS MAY VOID THE UNDERWRITERS LABORATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.
1. MAKE SURE THAT POWER TO THE LUMINAIRE IS OFF.
2. Select proper LAMP for application.
3. Remove TRIM FACEPLATE from TRIM BODY by
compressing TORSION SPRING. Fig. 1
4. Insert LAMP between LAMP SPRINGS of LAMP HOLDER
ASSEMBLY until face of LAMP sits firmly on GLASS LAMP
GUARD. Fig. 2
CAUTION! RISK OF FIRE. GLASS LAMP GUARD MUST BE
INSTALLED. Lamp manufacturers require the glass
lampguard be in place before energizing lamp, and that
great care must be taken that lamp is fully cooled before re-
lamping. Avoid finger marks on the inside of the lamp, as it
may shorten lamp life or cause breakage.
5. Insert LAMP HOLDER ASSEMBLY into TRIM BODY until
LAMP SPRINGS snap into place. Fig. 3
6. Bring TRIM BODY to FRAME and attach SOCKET to bi-pin
prongs on LAMP ensuring LAMPHOLDER ASSEMBLY remains
in place. Fig. 3
Prior to installing your LIGHTOLIER TRIM, the horizontal rotation
can be preset within the luminaire. Note the BEAM CENTERING
NOTCH Fig.4 allows the installer to predetermine the direction
the lamp will point to illuminate a wall or object of interest (not
applicable to downlight trims). Once the notch is aligned with the
object of interest, simply tighten the ROTATIONAL BRAKE
SCREW until the spring is fully compressed Fig. 5.
7. Ensure the two SECURING CLIPS are in the disengaged
position.Fig.1 on pg. 2. Align the two THICK CEILING READY
BRACKETS with the SECURING CLIPS and insert TRIM BODY
up until the bottom of TRIM BODY is flush or slightly recessed
from bottom of ceiling plane. Properly engage SECURING
CLIPS by pushing them into THICK CEILING READY
BRACKETS. Fig's 2 & 3 on pg. 2
Fig. 4
Rotational .
Fig 5
Brake Screw
Beam
Centering
Notch
Fig. 1
Trim Body
Torsion Spring
Trim Faceplate
Lamp
Lamp Holder
Assembly
Lamp Removal
Spring
Fig. 3
Socket
Thick Ceiling
Ready Brackets
A
631 Airport Road, Fall River, MA 02720
INSTRUCTION SHEET NO.
IS: C3MR
Page 1 of 2
B0206
Fig. 2
Lamp Springs
COMPANY
