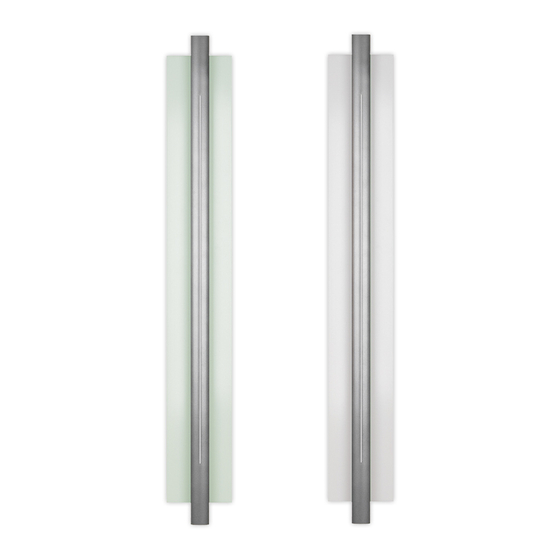

Lightolier Soli 48023ALU Specification

Page 1 of 2
Note:
Luminaire can be ordered with or without
diffuser shield. Order each separately.
Can be mounted vertically or horizontally.
Fixture Ordering Information
Catalog No. Finish
48023ALU Powder Coated
48023AL54U Metallic Aluminum
Diffuser Ordering Information
Catalog No. Description
40876 Translucent Etched Soda Lime Glass w/ Pencil Polished Edges
40916 Extruded Opal Virgin Acrylic w/ Pencil Polished Edges
Features
1. Housing: Extruded and die-cast aluminum ballast and lamp chamber.
2. Optional Diffuser/Reflector: Curved etched glass or extruded opal virgin
acrylic.
3. Optics: Internal white acrylic diffuser covers slit on front cover.
4. J-Box Covers: Die-cast split covers to enclose 4" octagonal J-Box (J-Box
by others).
Mounting
Mounts directly to switch box or 4" octagonal J-Box. Octagonal box mounting
requires use of "J-Box Covers" and "Support Plate" supplied standard.
Electrical
Ballast: Electronic
120/277V 28W
Total Input Watts: 33W
Max. Line Current: 120V = 0.28
277V = 0.12
Power Factor:
Ballast Factor: 1.00
THD: 120V = <10%
277V = <10%
Starting Temp: 0°F / -18°C
Finish
All painted parts utilized the powder coat process. Lightolier Metallic Aluminum
Powder Coat Enamel.

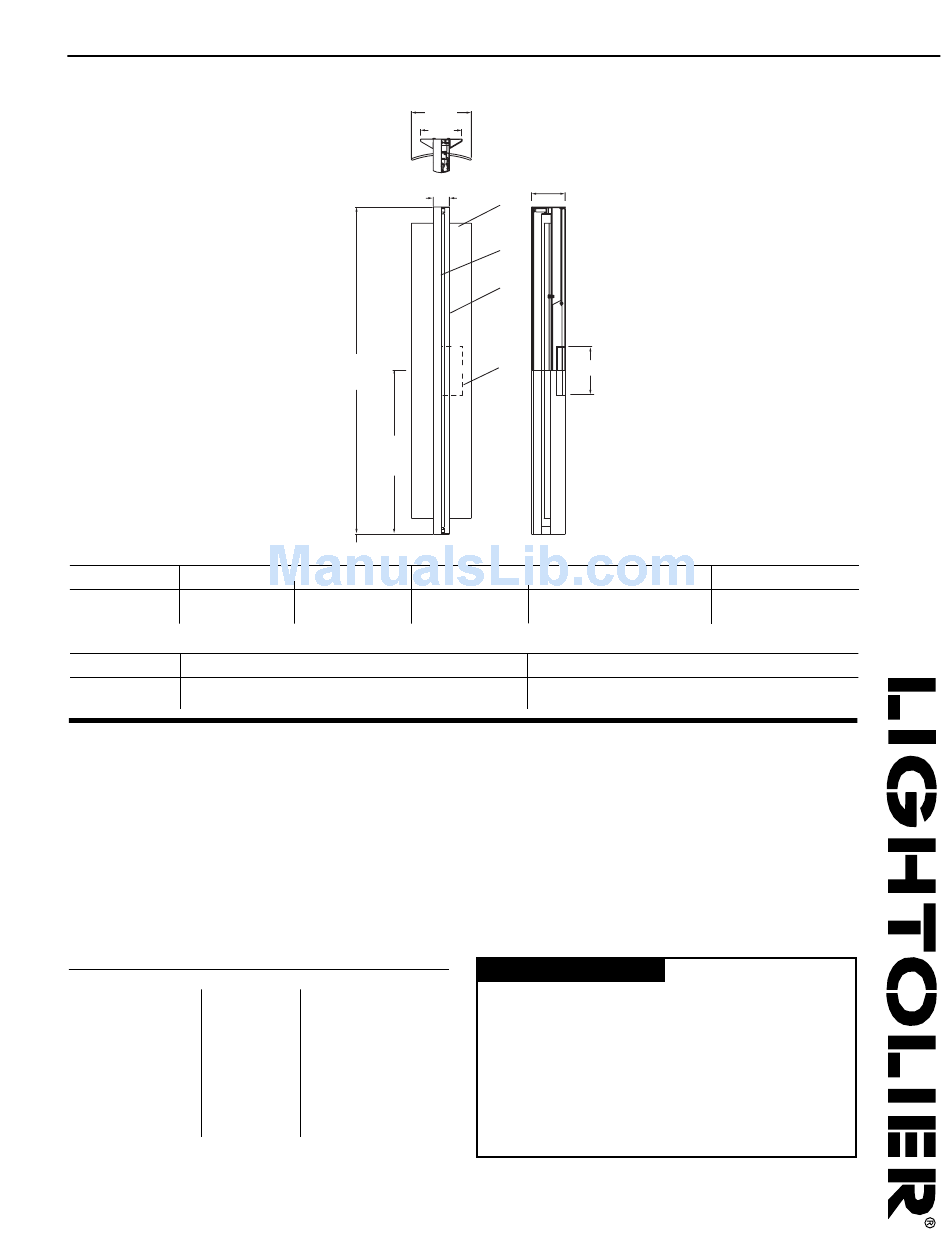

Architectural Decorative Soli
6-1/2"
Width
4-1/2"
1-3/4"
46-7/16"
Height
23-1/4"
To Outlet
Box Center
Wattage Voltage
28W 120/277V
54W 120/277V
54W
62W
120V=.51
277V=.21
.98 .98
1.00
120V = <10%
277V = <10%
0°F / -18°C
Wall/Ceiling Mounted T-5 Fluorescent ADA Compliant
3-5/8"
Extension
2
3
1
4
5-1/2"
Lamping
T-5 Miniature Bi-Pin Fluorescent
T-5 Miniature Bi-Pin Fluorescent HO
Dimensions
43" L x 6.5" W x 5 mm Thick
43" L x 6.5" W x 5 mm Thick
Options
Dimming: (Voltage Specific/54W HO lamps only)
Add MX1 suffix code (for 120V) to Cat. No.
Add MX2 suffix code (for 277V) to Cat. No.
for example: 48023AL4MX1
Emergency: Integral Bodine LP550 emergency battery pack, test switch and
light, add E suffix code.
DALI: Digital Dimming System ballast 120/277V. For 28W lamps add 28DA
suffix code to Cat. No. For 54W lamps add 54DA suffix code to Cat. No.
for example: 48023AL54DA
Labels
cULus Listed. Suitable for Damp Locations.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier
a Genlyte company
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
© 2005 Genlyte Group LLC • C0305
48023ALU
™
Options
See Below
Type:
www.lightolier.com
